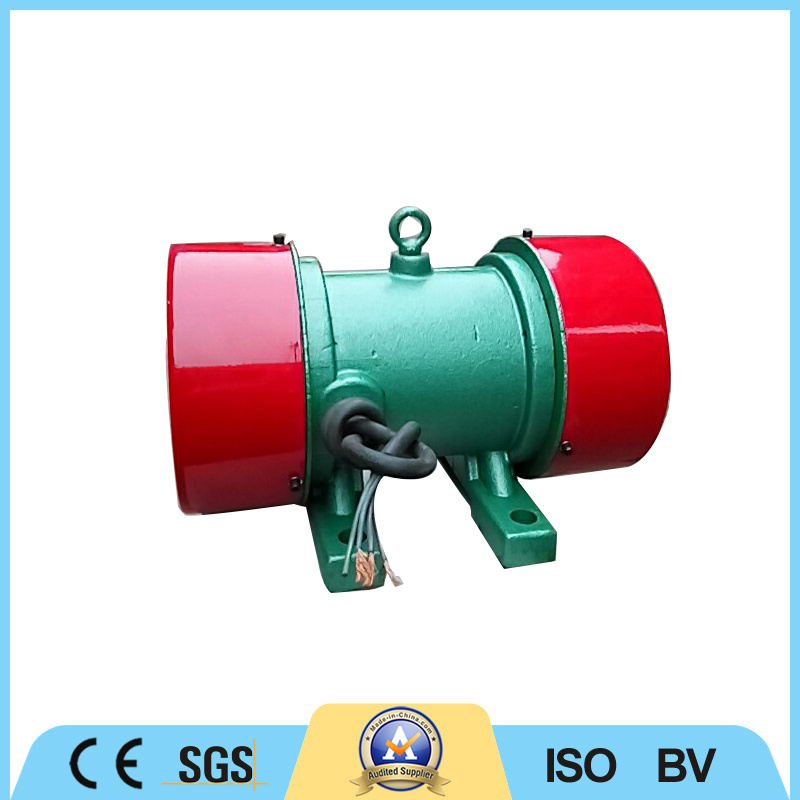

2018 New 3 Phase AC Eccentric Electric Vibro Motor
| Price: |
US $ 489/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |

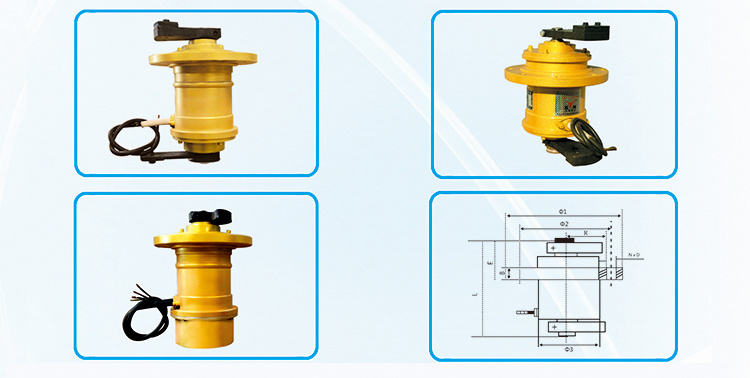

YZUL Series Adjustable Centrifugal Force Electric Vibrator Motor
VB series vibration motor is the universal source of vibration force for various machines, such as vibrating feeder, vibrating conveyor, vibrating screen etc.
General Features
Power supply: Three-phase 220V/380V, 440V, 50Hz /60Hz or other Voltage according to customers' special requirement.
Polarity: 2, 4, 6 and 8 standard poles
Continuous Duty: S1
Centrifugal force: 1KN-200KN
Range of output: 0.1KW-15KW
Speed: 700rpm-3000rpm
Insulation class: Class B, Class F, Class H
Level of protection: IP54, IP55, IP65
Electric motor: Three-phase asynchronous motor
Environmental temperature: Less than 40
Altitude: No more than 1000 meters
Install method: Any direction
Technical Parameter
| Model | Maximum
exciting force
(KN) | Power
(KW) | Synchronous
speed (RPM) | Current(A) | Installation and outside size(mm) | Remark |
| φ1 | φ2 | φ3 | B | N x D | L | E |
YZUL
1-4 | 1 | 0.12 | 1500 | 0.4 | 190 | 166 | 138 | 17 | 4x10.5 | 231 | 65 | Up Flange |
YZUL
3-4 | 3 | 0.18 | 0.6 | 226 | 200 | 155 | 20 | 4x12 | 232 | 66 | Up Flange |
YZUL
5-4 | 5 | 0.25 | 0.9 | 260 | 210 | 168 | 24 | 6x12 | 268 | 90 | Up Flange |
| 220 | 120 | Middle Flange |
YZUL
5-4 | 5 | 0.55 | 1.4 | 260 | 210 | 168 | 24 | 6x12 | 268 | 90 | Up Flange |
| 220 | 120 | Middle Flange |
YZUL
8-4 | 8 | 0.55 | 1.5 | 275 | 235 | 168 | 26 | 6x14 | 310 | 112 | Up Flange |
| 240 | 146 | Middle Flange |
YZUL
8-4 | 8 | 0.75 | 1.9 | 275 | 235 | 196 | 24 | 6x14 | 373 | 126 | Up Flange |
| 240 | 169 | Middle Flange |
YZUL
10-4 | 10 | 0.75 | 1.9 | 314 | 265 | 196 | 30 | 8x18 | 426 | 133 | Up Flange |
| 270 | 173 | Middle Flange |
YZUL
10-4 | 10 | 1.5 | 3.5 | 314 | 265 | 220 | 32 | 8x18 | 435 | 140 | Up Flange |
| 270 | 198 | Middle Flange |
YZUL
15-4 | 15 | 1.1 | 2.6 | 314 | 265 | 196 | 30 | 8x18 | 426 | 133 | Up Flange |
| 270 | 173 | Middle Flange |
YZUL
15-4 | 15 | 1.75 | 4.1 | 314 | 265 | 220 | 32 | 8x18 | 435 | 140 | Up Flange |
| 270 | 198 | Middle Flange |
YZUL
30-4 | 30 | 1.5 | 3.5 | 374 | 315 | 258 | 34 | 8x22 | 478 | 163 | Up Flange |
| 320 | 219 | Middle Flange |
| 30 | 2.2 | 5 | 374 | 315 | 258 | 34 | 8x22 | 478 | 163 | Up Flange |
| 320 | 219 | Middle Flange |
| 30 | 3 | 6.8 | 374 | 315 | 258 | 34 | 8x22 | 478 | 163 | Up Flange |
| 320 | 219 | Middle Flange |
YZUL
50-4 | 50 | 2.2 | 5 | 440 | 380 | 310 | 38 | 8x26 | 534 | 240 | Middle Flange |
| 3 | 6.8 | 534 |
| 4.5 | 11 | 574 | 268 |
YZUL
5-2 | 5 | 0.37 | 3000 | 1 | 230 | 210 | 170 | 15 | 6x13 | 287 | 90 | Up Flange |
YZUL
8-2 | 8 | 0.55 | 3000 | 1.4 | 275 | 230 | 200 | 18 | 6x16 | 311 | 83 | Up Flange |
YZUL
10-2 | 10 | 0.75 | 3000 | 1.7 | 275 | 230 | 200 | 22 | 6x16 | 365 | 102 | Up Flange |
YZUL
15-2 | 15 | 1.1 | 3000 | 2.3 | 275 | 250 | 200 | 22 | 6x16 | 376 | 97 | Up Flange |
YZUL
10-4 | 10 | 0.75 | 1500 | 1.9 | 275 | 230 | 170 | 22 | 6x16 | 426 | 135 | Up Flange |
YZUL
15-4 | 15 | 1.1 | 1500 | 2.6 | 275 | 250 | 185 | 22 | 12x17 | 438 | 127 | Up Flange |
| Prod Model: |
YZUL-10-4 |
| Speed: |
700rpm-3000rpm |
| Electric Motor: |
Three-Phase Asynchronous Motor |
| Range Of Output: |
0.1kw-15kw |
| Centrifugal Force: |
1kn-200kn |
| Application: |
Universal |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
YS Series Three-Phase |
| Casing Protection: |
Closed Type |
| Starting Mode: |
Direct on-line Starting |
Company Profile
Xinxiang Hengyu Machinery Equipment Co., Ltd. Which is a manufacturer specialized in screening and conveying equipment. Our machines include: Circluar vibrating screen, linear vibrating screen, test sieve shaker, screw conveyor, fexible belt conveyor, bucket elevator and vibrating feeding machine. Now we have been exported our machines to United States, Britain, Japan, Sweden, Switzerland, Poland, Denmark, Malta, Indonesia, Malaysia, Vietnam, Thailand, Colombia, Ukraine, Australia, Canada, Chile, Peru, Uruguay, the Netherlands, Lithuania, Lebanon, etc...
Remark of our advantages:
1) 4 years Gold Supplier certificated, 12 years of OEM and ODM experience
2) 28 years of experience of one engineer, 22 years of experience of one engineer
3) Monthly production capacities: 260-300 sets
4) All goods examined before delivery by 4 QC staff
5) Exported to 20 counties and regions
6) Have been establishing long-term cooperation with Italvibras and OLI-WOLONG
7) ISO 9001: 2008, CE certificate, approval of BV and SGS
