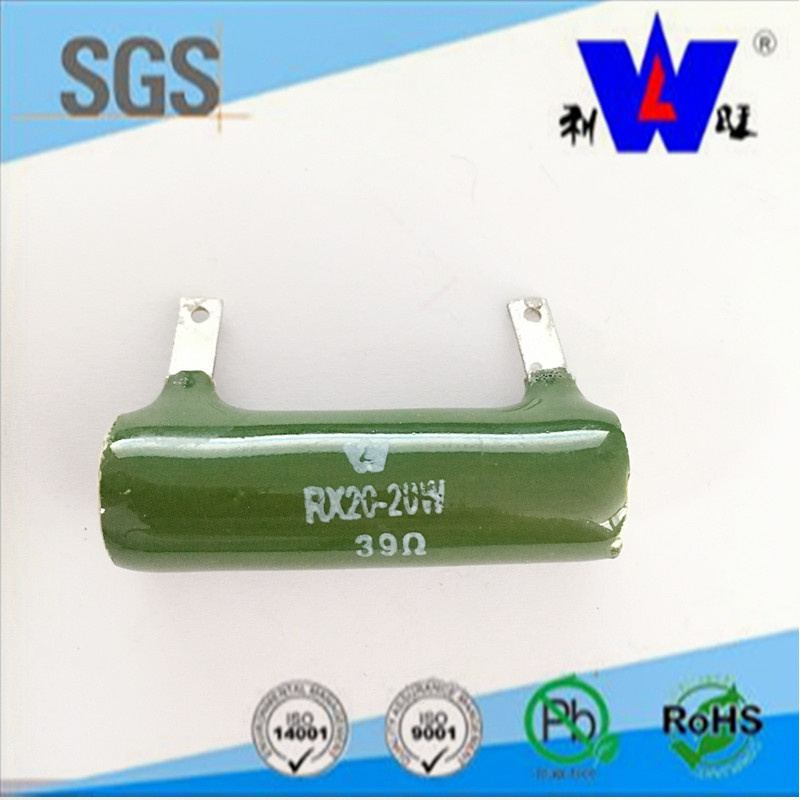

20W Enamel Wire Wound Resistor/Variable Power Resistor
| Price: |
US $ 0.7-10/Piece |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Product Description
1. Resistance Tolerance: ± 5%, ± 10%
2. Rated Power: 2.5-150W
3. Resistance Range: 5.1-150KΩ

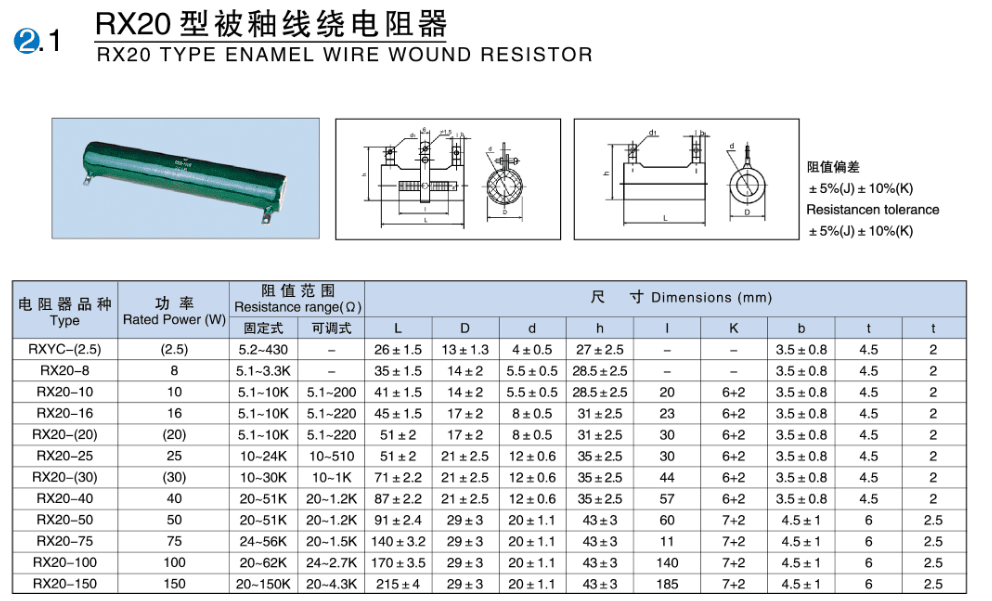

| Model | Rated
power
(W) | Overall dimensions(mm) |
| L | D | d | H | h | L1 | K | b | t | d1 | c |
| RX20 | 8W | 35 | 14 | 5.5 | - | 28.5 | - | - | 3.5± 0.8 | 4.5 | 2 | 8± 1.5 |
| 10W | 41 | 14 | 5.5 | 31 | 28.5 | 20 | 6± 2 |
| 15W | 45 | 17 | 8 | 34 | 31 | 23 |
| 20W | 51 | 17 | 8 | 34 | 31 | 30 |
| 25W | 51 | 21 | 12 | 39 | 35 | 30 |
| 30W | 71 | 21 | 12 | 39 | 35 | 44 |
| 40W | 87 | 21 | 12 | 39 | 35 | 57 |
| 50W | 91 | 29 | 20 | 47 | 43 | 60 | 7± 2 | 4.5± 1 | 6 | 2.5 |
| 75W | 140 | 29 | 20 | 47 | 43 | 110 |
| 100W | 170 | 29 | 20 | 47 | 43 | 140 |
| 150W | 215 | 29 | 20 | 47 | 43 | 185 |
| 200W | 215 | 38 | 25 | 60.5 | 58 | 160 | 7± 2 | 8± 1 | 9 | 4 | 11± 1.5 |
| 200/250W | 266 | 30 | 16 | 50 | 47 | 210 |
| 300W | 266 | 36 | 20 | 58 | 58 | 210 | 8± 2 |
| 400W | 250 | 54 | 30 | 76.5 | 79 | 180 | 10± 2 |
| 500W | 300 | 54 | 30 | 76.5 | 79 | 230 | 16 | 8 | 17± 1.5 |
| Model | Rated power(W) | Resistance range(Ω ) | Admissible resistance deviation (%) | Temperature coefficient
(× 10 -6 /tm) |
| Fixed | Adjustable(T) |
| RX20 | 8W | 5.1~3.3K | - | ± 1
± 5
± 10 | ± 250 |
| 10W | 5.1~10K | 5.1~200 |
| 15W | 5.1~15K | 5.1~220 |
| 20W | 5.1~20K | 5.1~430 |
| 25W | 10~24K | 10~510 |
| 30W | 10~30K | 10~1K |
| 40W | 20~51K | 20~1.2K |
| 50W | 20~51K | 20~1.5K |
| 75W | 20~56K | 20~2K |
| 100W | 24~62K | 24~2.7K |
| 150W | 20~150K | 20~4.3K |
| 200W | 4.7~12K | 5.1~3K |
| 200/250W | 4.7~12K | 5.1~3K |
| 300W | 4.7~12K | 5.1~3K |
| 400W | 5.1~10K | 6.2~3K |
| 500W | 5.1~10K | 6.2~3K |
RX20 Power glaze wirewound resistor( can be fixed and adjustabe)
1. Wide range of power(8W-3000W);
2. Coated with glaze paint, Anti-eat off, Anti high temperature, canbe used under bad envinment;
3. Anti wet, good insulation, powerful overload capacity, stability hotful, long-life operating;
4. T-type resistance can be changed, convenience for resistance turned.
Specification
1. Wide range of power(8W-3000W);
2. Coated with glaze paint, Anti-eat off, Anti high temperature, canbe used under bad envinment;
3. Anti wet, good insulation, powerful overload capacity, stability hotful, long-life operating;
4. T-type resistance can be changed, convenience for resistance turned.
Packing:
We can pack your goods in export-worthy carton, on pallet.
Shipping
1. We will ship the items within 3 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.
3. We are not responsible for any accidents, delays or other issues caused by the forwarder.
4. Any import fees or charges are on the buyer's account.
All products of the size, electrical performance can be designed. If you have any questions or requirements, please contact us freely in any time.
| Prod Model: |
RX20 |
| Quality Certification: |
ISO9001 Ts16949 |
| Environmental Certification: |
ISO14000 |
| Safety Certification: |
CQC 03003095~3097 |
| Other Certification: |
RoHS |
| Resistance: |
Fixed Resistor |
| Function For Resistance: |
Protective Resistor |
| Installation: |
DIP Resistor |
| Material: |
Wire-wound Resistor |
| Package Type: |
Surface Mount |
| Type: |
Humidity Sensitive Resistor |
| Brand: |
Liwang |

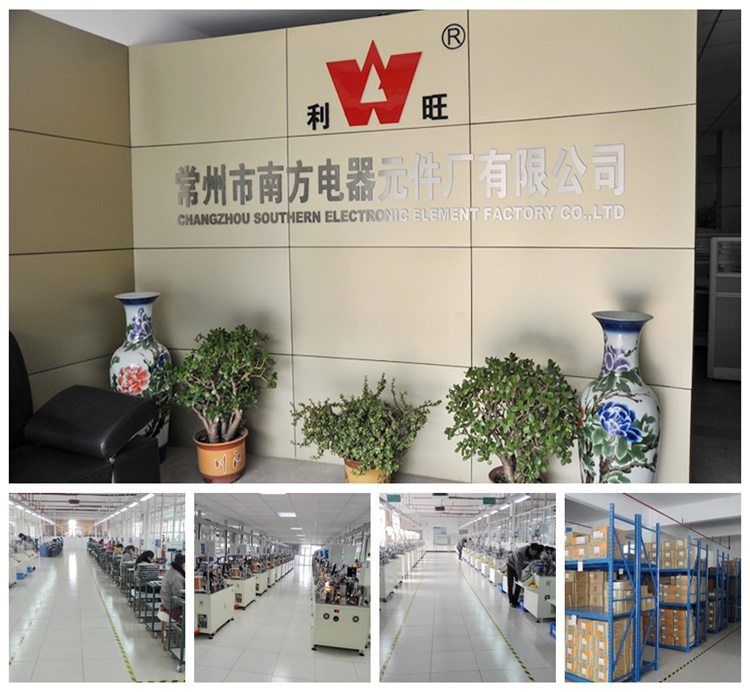

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.
Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.
Factory' S quality policy: "product quality, service in advance, customer satisfaction".
Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment"
