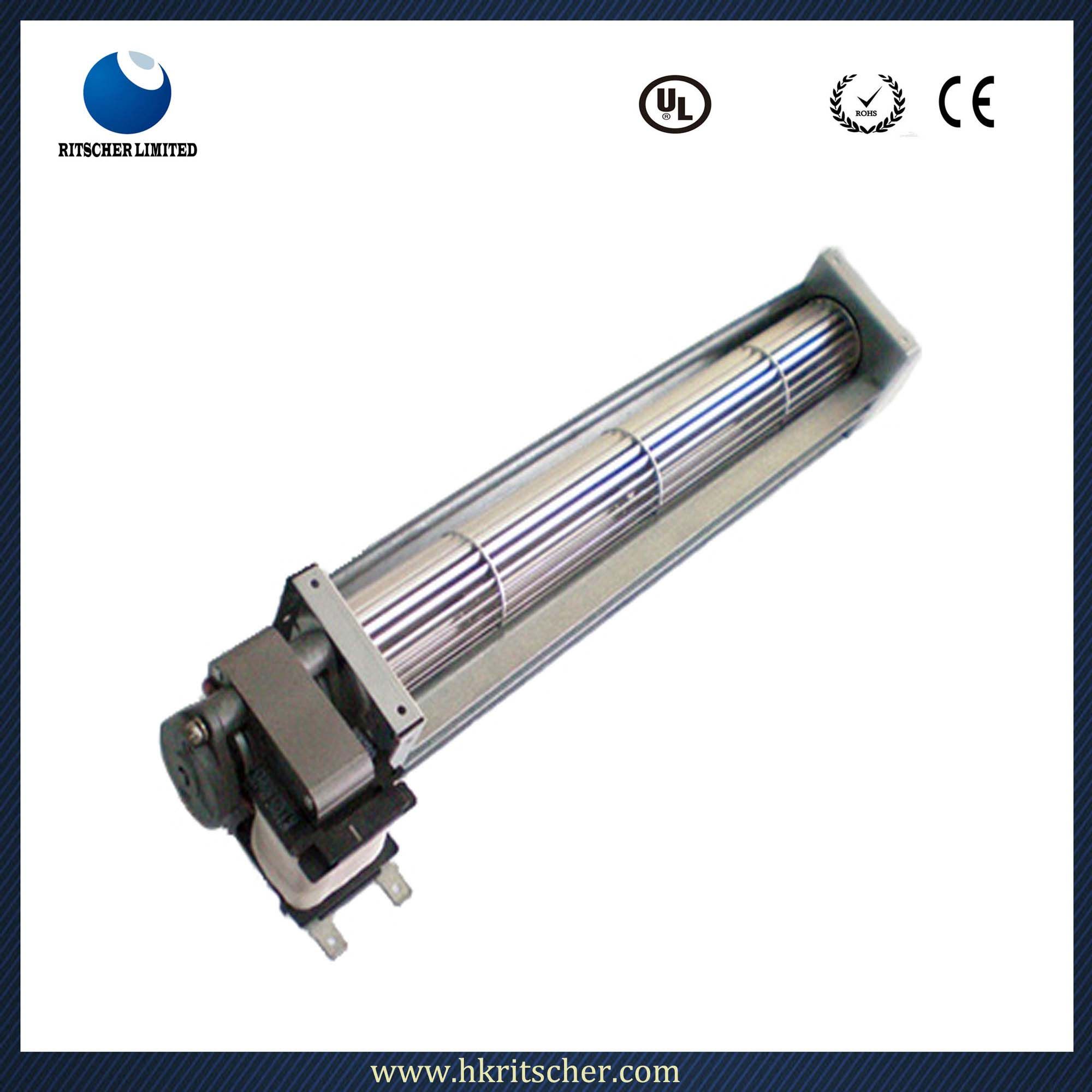

Company website: http://www.hkritscher.com/ 220v oven tangential fan motor uses on commonly Heater, Air cooling Fan etc
Volt(v)=110V-240v
Freq(HZ)=50/60HZ
Current(A)=0.18-0.43 based on different stator thickne
Input power on loading: From 13W to 36W based on different stator thickness
Torque: 60g. Cm to 120g. Cm based on different stator thickness
Shaft diameter(mm)=4-6mm
Shaft length(mm)=according to customer's requirement
Speed(r/min): 2600-3400 based on different stator thickness
Fan Diameter: 60mm
Fan length: Optional from 120mm to 360mm
| MODEL | AOF SIZE | SHAFE DIA | VOLT | INPUT POWER | TORQUE (g.cm) |
SPEED RATED
|
YJ6012 |
12mm |
4mm |
110-240V |
18W |
120 |
3000RPM |
YJ6014 |
14mm |
4.5mm |
110-240V |
25W |
150 |
3000RPM |
YJ6016 |
16mm |
4.5mm |
110-240V |
30W |
180 |
3000RPM |
YJ6020 |
20mm |
5mm |
110-240V |
35W |
260 |
3000RPM |
YJ6025 |
25mm |
6mm |
110-240V |
45W |
350 |
3000RPM |
YJ6030 |
30mm |
6mm |
110-240V |
53W |
380 |
3000RPM
|
