| Prod Model: |
YC MOTOR |
| Date Of Delivery: |
15-30days |
| City: |
Ningde |
| Capaciotance: |
Two Capacitance |
| Number Of Stator: |
Single-Phase |
| Function: |
Driving |
| Brand: |
Bro |
Product Description

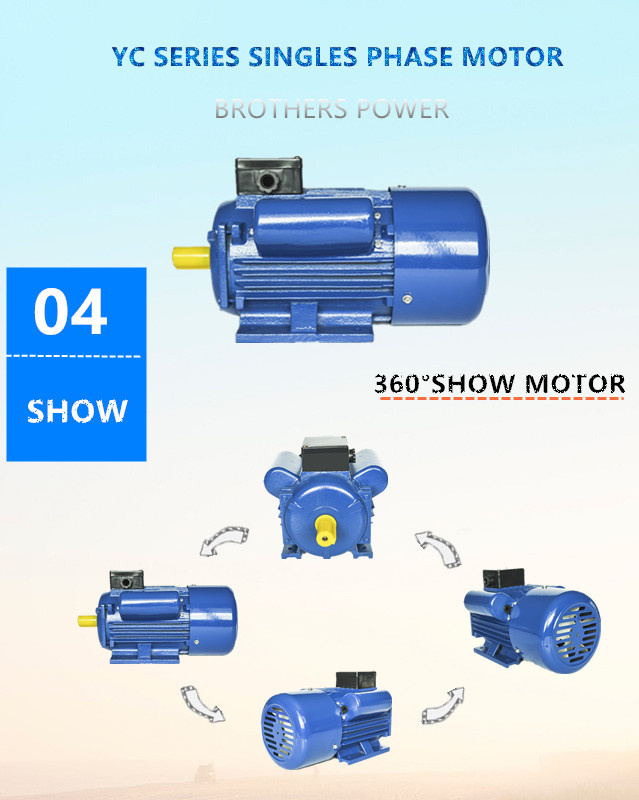

YC series single-phase capacitor start asynchronous motors With the international
similar products, simple structure, reliable operation, easy maintenance, superior
technical and economic indicators With a high starting torque, strong overload characteristics, the B class insulation, shell protection rating of IP44, cooling method
for IG411, rated voltage of 220V, rated frequency is 50Hz Widely used in air
compressors, pumps Washing machines, refrigerators, machinery and equipment.
Motor Performance
1) Frame size: 71
2) Rated power: 0.37kW
3) Rated voltage: 110 - 120V, 200 - 240V
4) Frequency: 50Hz, 60Hz
5) Protection class: IP44 ,IP54
6) Insulation class: E, B, F
7) Materials: Cast iron, aluminum (FRAME 63-132)
8) IE1 IE2 IE3 IE4
9) Poles: 2, 4, 6 ,8
10) Cooling method: IC411 (total-enclosed fan-cooled type)
11) Mounting types: IMB3, IMB35, IMB5, IMB14, IMB34
12) Operating mode: S1
13) Connection: "Y" type for 3kW and downwards, "D" type for 4kW and upwards
14) Ambient temperature: -15° C< θ <40° C
15) The altitude should be lower than 1, 000m above the sea level
16) Relative humidity: Not higher than 90%
17) Special motors can be designed according to customers' requirements
1.-Technical Data
| Type | Output | Current | Power | Eff | Speed | Tstart/Tn | Ist/In | Tmax/Tn |
| kW | HP | (A) | factor | (%) | (r/min) |
| YC711-2 | 0.18 | 0.25 | 1.9 | 0.7 | 63 | 2800 | 3 | 6.5 | 1.8 |
| YC712-2 | 0.25 | 0.34 | 2.4 | 0.72 | 65 | 2800 | 3 | 6.5 | 1.8 |
| YC80A-2 | 0.37 | 0.5 | 3.5 | 0.74 | 66 | 2840 | 3 | 6.5 | 1.8 |
| YC80B-2 | 0.55 | 0.75 | 5.04 | 0.74 | 67 | 2850 | 3 | 6.5 | 1.8 |
| YC80C-2 | 0.75 | 1 | 6.68 | 0.75 | 68 | 2850 | 3 | 6.5 | 1.8 |
| YC90S-2 | 1.1 | 1.5 | 8.93 | 0.8 | 70 | 2850 | 2.8 | 7 | 1.8 |
| YC90L-2 | 1.5 | 2 | 11.4 | 0.82 | 73 | 2870 | 2.8 | 7 | 1.8 |
| YC100L-2 | 2.2 | 3 | 16.5 | 0.82 | 74 | 2900 | 2.5 | 7 | 1.8 |
| YC112M1-2 | 3 | 4 | 21.4 | 0.84 | 76 | 2900 | 2.2 | 7 | 1.8 |
| YC112M2-2 | 3.7 | 5 | 24.8 | 0.86 | 79 | 2900 | 2.2 | 7 | 1.8 |
| YC711-4 | 0.12 | 0.16 | 1.9 | 0.58 | 48 | 1400 | 3 | 6 | 1.8 |
| YC712-4 | 0.18 | 0.24 | 2.7 | 0.6 | 50 | 1400 | 3 | 6 | 1.8 |
| YC80A-4 | 0.25 | 0.33 | 3.52 | 0.62 | 52 | 1400 | 3 | 6 | 1.8 |
| YC80B-4 | 0.37 | 0.5 | 4.69 | 0.64 | 56 | 1400 | 3 | 6 | 1.8 |
| YC80C-4 | 0.55 | 0.75 | 6 | 0.65 | 60 | 1400 | 3 | 6 | 1.8 |
| YC90S-4 | 0.75 | 1 | 7.5 | 0.72 | 63 | 1400 | 2.8 | 6.5 | 1.8 |
| YC90L-4 | 1.1 | 1.5 | 10.4 | 0.72 | 67 | 1420 | 2.8 | 6.5 | 1.8 |
| YC100L-4 | 1.5 | 2 | 13 | 0.73 | 72 | 1440 | 2.8 | 6.5 | 1.8 |
| YC112M-4 | 2.2 | 3 | 18.5 | 0.74 | 73 | 1450 | 2.5 | 6.5 | 1.8 |
| YC132SA-4 | 3 | 4 | 22.4 | 0.8 | 76 | 1450 | 2.2 | 6.5 | 1.8 |
| YC132SB-4 | 3.7 | 5 | 26 | 0.82 | 79 | 1450 | 2.2 | 6.5 | 1.8 |
| YC132M1-4 | 5.5 | 7.5 | 32.5 | 0.95 | 81 | 1450 | 2.1 | 6.5 | 1.8 |
| YC132M2-4 | 7.5 | 10 | 43.3 | 0.95 | 83 | 1450 | 2.1 | 6.5 | 1.8 |
Why us?
1.Low MOQ: It can meet your promotional business very well.
2.Good Service : We treat clients as friends,offering 24 hrs a days 7days a week service support.
3.Good Quality :We have strict quality control system.Good reputation in the market.
4.Fast & Cheap Delivery: We have big discount from forwarder FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.
