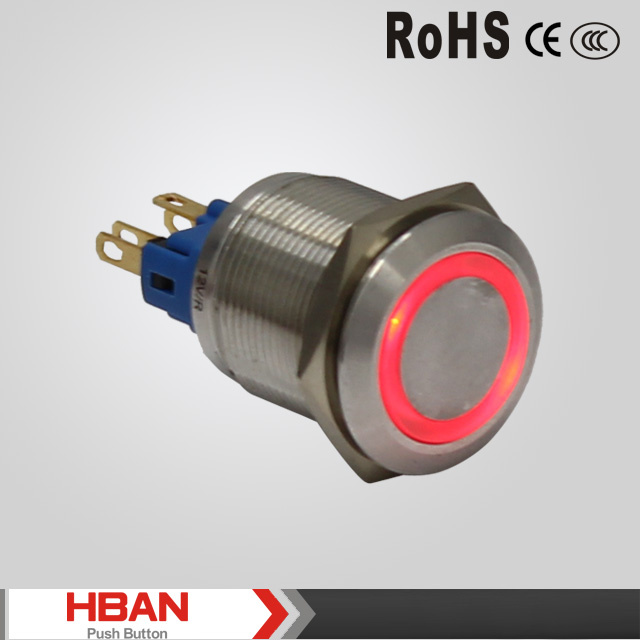

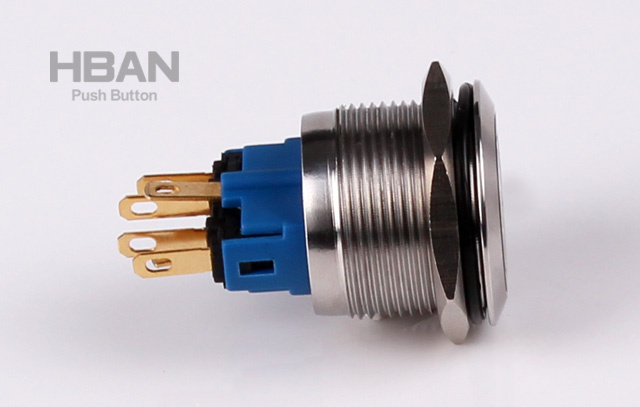

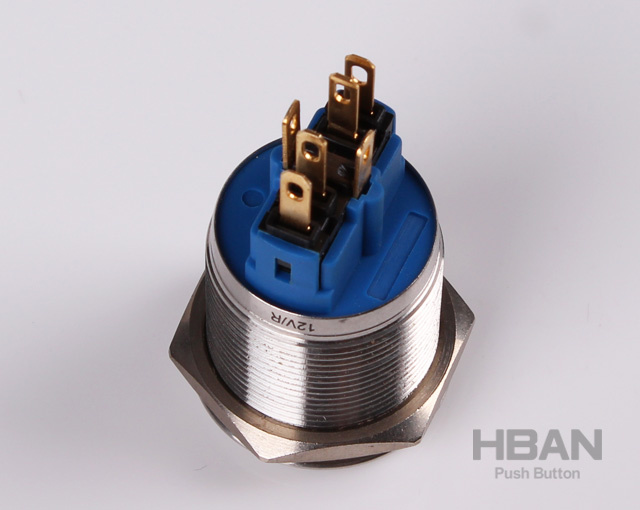

22mm IP65 Illuminated Pushbutton Switches

Name: 22mm IP65 Illuminated Pushbutton Switches
Brand: all-electronics-online.com
SKU: 693008692
Availability: InStock
Rating: 4.3 (141 reviews)

Price:	US $ 0.1-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HBGQ22-11E/S, HBGQ22-11EZ/S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Switch Rating:	5A/250V AC
Contact Configuration:	1no1nc
Operatiion Type:	Momentary/Latching
Crust Material:	Stainless Steel
IP Protection Degreee:	IP65,Ik08
Illuminated Type:	Ring-Illuminated
Usage:	Check Button
Kind:	Double-pole on-off Switch
Brand:	Hban
Certification:	CE,RoHS,ISO9001
Type:	1no1nc

Product Description

CE ROHS Pushbutton Switch Ring with Lamp

Mounting Hole Size:Φ22mm
Switch Rating :5A / 250VAC
Front Shape:Flat
Connector:Pin terminal
Operation type:1NO1NC
Illuminated type : Ring illuminated
Protection Degree:IP65,IK08

Packing details:

We pack 20 pieces diameter 22mm metal push button switches into 1 foam box to protect them .We supply 20 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a kraft paper box,25boxes will be packed into a carton.
About Us:

Yueqing Dahe Electric Co.,Ltd is a professional manufacturer of push button switch, signal lamp, buzzers,
waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.
Our products are widely used in machinery, machine tools, electric power, electronics, production control,
medical, banks, ships, automation and other industries.

We can customize push button switch according to your specification, If you have any requirement or question,please feel free to contact us.

Tel:0086-577-62708000 Fax :0086-577-62708007

Item NO.		HBGQ22-11E/S	HBGQ22-11EZ/S
Specification		1NO1NC,Momentary	1NO1NC,Latching
Front Head Shape		Flat Round
Terminal Type		Pin terminal(2.8*0.5mm)
Switch Type		C Single breakpoint snap-action changeover contacts
Switch Specification		Ith:5 A Ui:250V AC
Contact Resistance		≤ 50mΩ
Insulation Resistance		≥1000mΩ
Dielectric Strength		2000V
Operating Temperature		-22 degree~+55 degree
Machanical Life		>1,000,000times
Electrical Life		>50,000times
Panel Thickness		1-10mm
Torque		5-14Nm
Operating Pressure		3~5N
Protection Degree		about 3.1mm
Materisl	Contact	IP65,IK08
	Button	Silver Alloy
	Case	Stainless Steel
	Base	Stainless Steel
Lamp Parameters	Type	Ring-illuminated(LED)
	Rated Voltage	6V/12V/24V/110V/220V
	Color	Red/Green/Orange/Yellow/White/Blue
	Life	50,000hours

Yueqing Dahe Electric Co., Ltd. Set up on 2003, is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch.

Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state.

After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, CE certification and RoHS certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.

At present, we cooperate with customers in more than 50 countries and areas. We sincerley hope to cooperate with you. Welcome to become our Distributor in your city.
