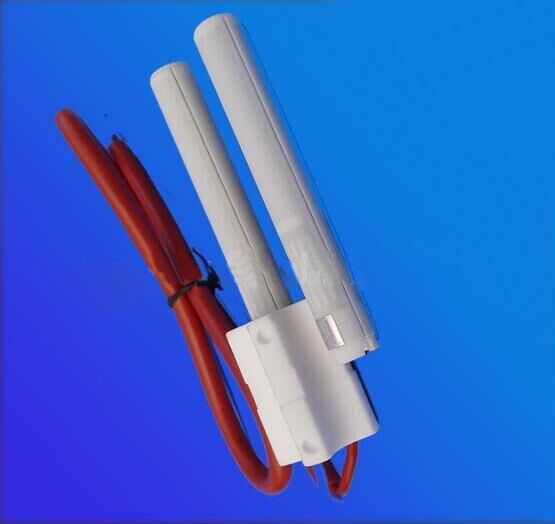

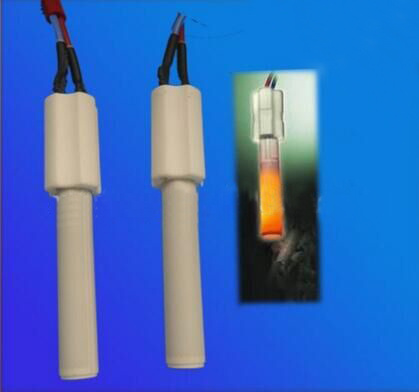

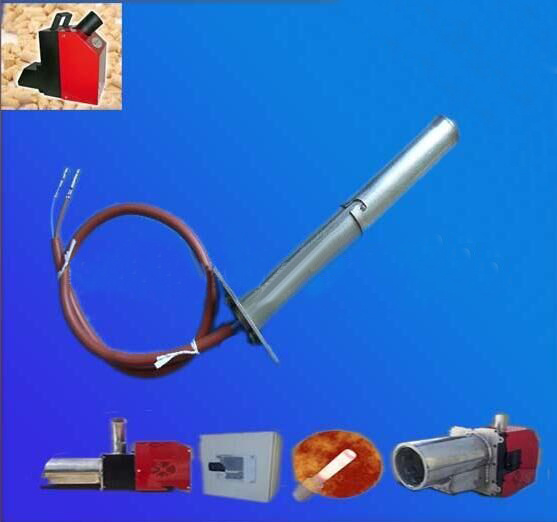

230V 170W Wood-Fueled Heating Systems Heater
| Price: |
US $ 8-10/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Specifications
1.Ignitor for biomass boilerignition 2. Competitive price 3.Fast heating up 4.Long life 5.Meet Rohs
Characteristic
1.High temperature-resistance ceramic heating element which can reach a permanent working temperature
above 750°C
2.Energy saving, super fast heating-up
3.Air can through and around inside and outside of the heater.
Heat can be transfered from both inside and ouside of the heating element.
4.Electrically oxidation and corrosion-resistant
5.High load-bearing capacity(thermal shock resistance, cycles)
5.Customization the igniters according to customers' specific requirement.
eat resistance steatite ceramic heating element
Mass customization is available.
1 | Part No. | G78105-22 |
2 | Usage | ignition |
3 | Working Voltage | 230VAC |
4 | Power | (150 -250) W |
5 | Dimension of product | Standard Dimension like Rauschert |
6 | Cable | accordingly |
7 | Advantages | (1)Ready to fit solution: High temperature heating element in temperature-resistant ceramic socket (2)Air can flow through and around inside and outside of heater (3)Element temperature: over 1000 °C in permanent and alternating operation, for a short time up to 1200 °C (4)Lifetime up to 100,000 heating cycles, depending on operating conditions (5)Oxidation and corrosion-resistant (6)Ignition through air heating: Due to extremely high heater temperature and ideal geometric conditions, air is heated in a very short time to very high temperatures - the ideal ignition blower! (7)Igniting wood chips, firewood, coal bricks or other biomass (corn, etc.) is possible. |
| Type.: |
Insulating Ceramic |
| Leads: |
Accordingly |
| Place Of Origin: |
Fujian,China |
| Resistance: |
(40-200)Ohm |
| Voltage: |
230V |
| Standard Dimension: |
L=94mm,D=17.5mm |
| Use: |
Ceramic Heaterr for Biomass Boiler Lighter |
| MOQ: |
100 |
