Prod Model: |
LAS1-19F-11E |
Function: |
on-off Latching/Momentary |
The Front Shape: |
Flat/ Domed/High |
LED Volt: |
3V/6V/12V/24V/110V/220V |
LED Color: |
Red/Green/Yellow/White/Blue/Orange |
Material: |
Stainless Steel/ Chrome Plated Brass/Aluminum |
Contact: |
Sliver Plated |
IP Degree: |
IP 67 |
Electrical Life: |
More Than 50, 000 Cycles |
Manufacturer: |
Yes |
OEM: |
Yes |
Type: |
Composite |
Usage: |
Check Button |
Kind: |
Single-pole on-off Switch |
Brand: |
Daier |
Structure: |
1no 1nc |
Product Description

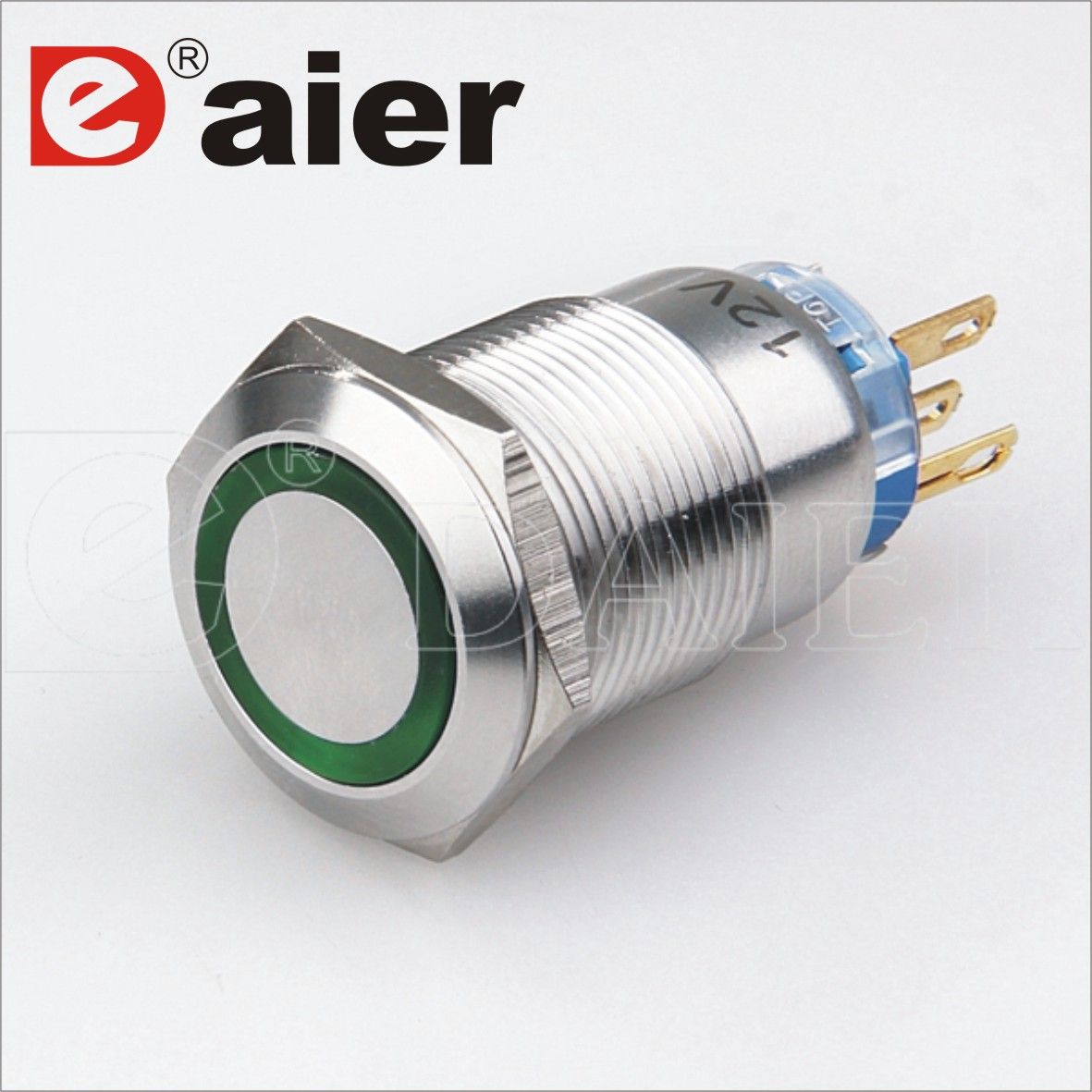

24 Volt Lighted Motorcycle Metal Pushbutton Switch--24 Volt Lighted Motorcycle Metal Pushbutton Switch. They are widely used in household appliances, mall, hotel appliances, electric force,telecommunications,machine tool,vessel,textile,printing,Mining machine,Mustic Instrument, etc.· PRODUCTION DESCRIPTIONUsage | Extensive Use |
Type | Push Button |
Function | LAS1-19F-11EM | 19mm , SPDT,1NO 1NC, Momentary |
LAS1-19F-11EL | 19mm , SPDT,1NO 1NC, Latching |
Head shape | Flat / Domed/ High available |
Rating | 5A 250VAC |
Material | Stainless steel / Chrome plated Brass/Aluminum |
Contact Material | Silver Plated |
LED Color | Red/Green/Yellow/White/Blue/Orange |
LED Volt | 3V/6V/12V/24V/110V/220V |
Lamp Type | Ring Light/ Dot Light/ Power Light available |
Minimum Applicable Load | 5V AC/DC,1mA |
Contact Material | Silver Plated |
Protection Level | IP67 |
Certificate | CE,Rohs |
Terminal Style | Pin terminal 2.8x0.5mm |
· SPECIFICATION Operating Temperature | -20°C ~+55°C |
Operating Humidity | 45%~85% RH |
Contact Resistance | 50mΩ max. |
Insulation Resistance | 100mΩ min. (500V DC megger ) |
Vibration Resistance | 10~55HZ, amplitude 1.2mm p-p |
Degree of Protection | >10g |
Electrical Life | 50,000 operations min. (at full rated load) |
Mechanical Life | Maintained:1,000,000 operations min. Momentary:1,000,000 operations min. |
Dielectrical Life | Switch Unit: 2,000VAC,1 minute between terminals of same pole; 1,000VAC,1minute between contact and lamp terminals. Illumination Unit:2,000VAC,1min. Between live part/ground |
Soldering Temperature | 20W/5 seconds or 260 °C/3 seconds |
NOTE: Momentary | When you press the switch, it work; when move your finger, it not work. |
Latching | When you press the button, it work; when you press again, it not work. |
If you want find this various of Push Button Switch, you can enter our homepage to check and confirm. Of course, if you have any other questions that you could not know clearly, you can contact me by mail or skype .We will be very glad to answer your questions.

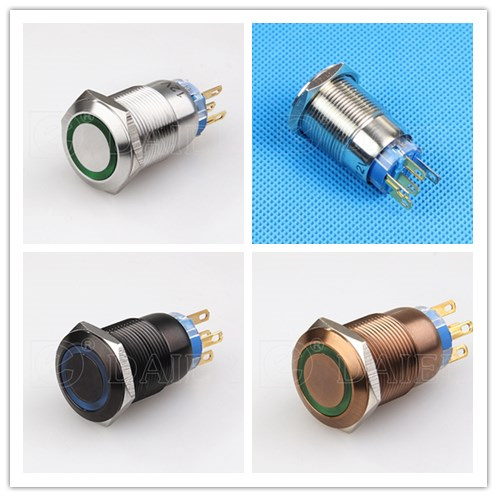

· PRODUCT SHOW

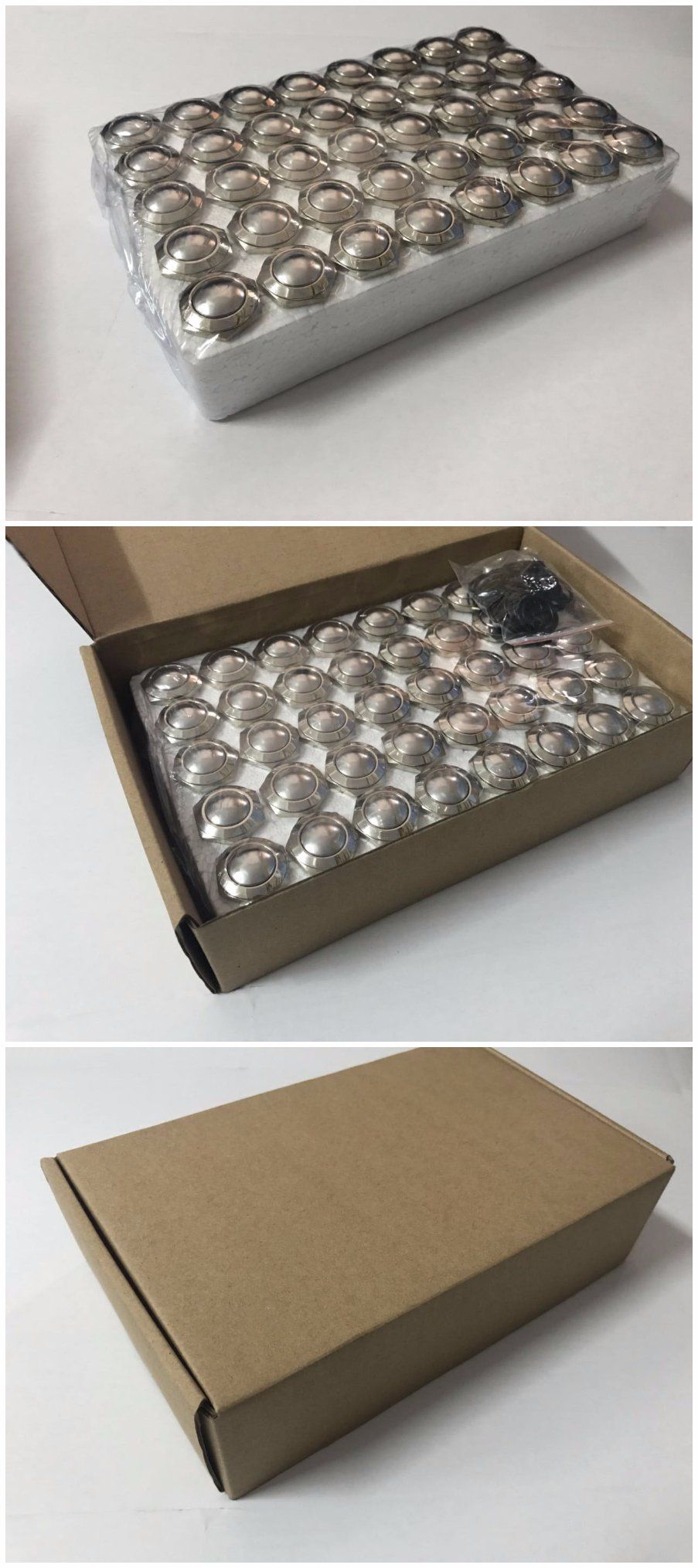

· PACKING
· SHIPPING & PAYMNET Shipping Detail: Ship worldwide by sea, by air or by express like DHL, UPS, TNT, FEDEX,CHINA POST
Payment Detail: Paypal, T/T, Western union, MoneyGram, or other methods.
· ADVANTAGENO.1 | CE, TUV, CQC,CCC,ISO9001 Certificate |
NO.2 | More than 10 years manafacture! |
NO.3 | 80% of our products are exported to Europe, North and South America |
NO.4 | High quality, competitive price, great service! |
NO.5 | Strong technological cpacity, compete production testing equipment |
· COMPAY INFORMATIONDaier Electronics Co.,ltd is a professional manufacturer of electromechanical switches in Yueqing, China. Our factory covers an area of over 5,000 square meters, having a total staff of over 200 members. We are engaged in producing 9 categories and about 4,000 models of aluminum box, knob, footswitch, DC jack, potentiometer, rotary switch, push button switch and so on. With a principle of being creative, advancedand honest, we are always improving our products and services to better satisfy you customers.

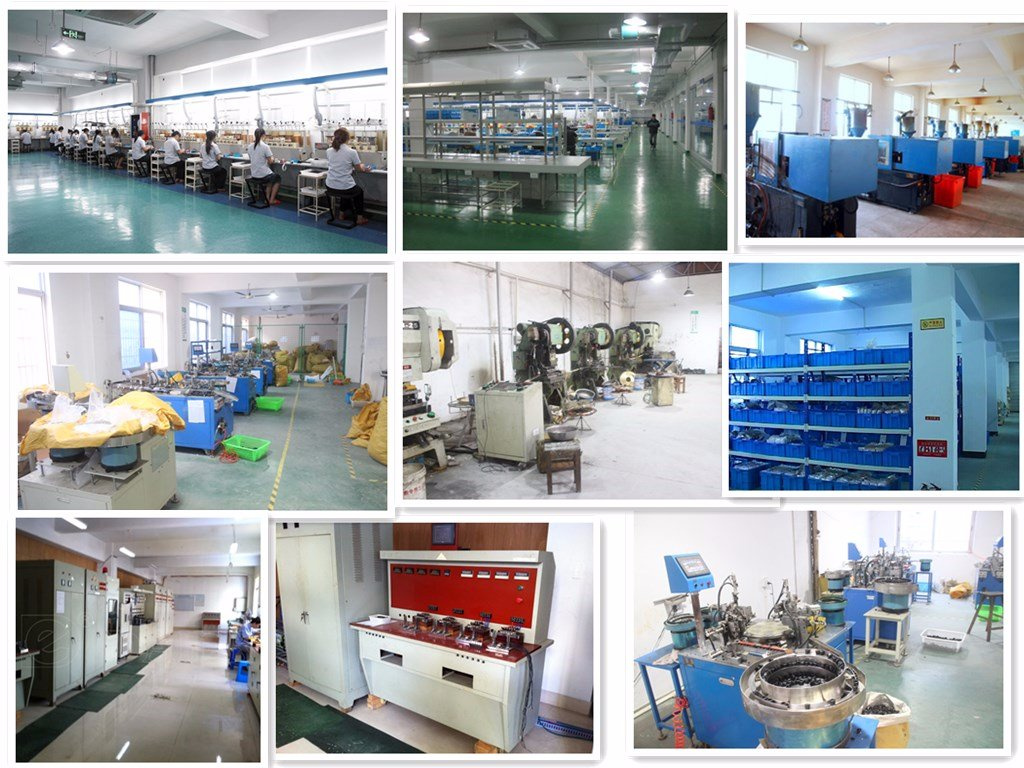

· OUR FACTORY· CERTIFICATES· ANOTHER PARTS· OUR SERVICE Please kindly inform us which items you are interested, and the best price will be provided you upon receipt of your new enquiry ASAP.
Any questions about more items, please feel free to contact us.
We are sincerely looking forward to establish cooperative relationship with you.
· FEEDBACK * We greatly appreciated your positive feedback and will do the same.
* Please kindly contact us before you decide to leave any neutral or negative feedback.
* We will try our utmost to help you solve the problem. Your information for us will be protected strictly.
· FOR ATTENTIONFree sample is available!
If you need any parts, please kindly send us your drawing or sample for quotation.
