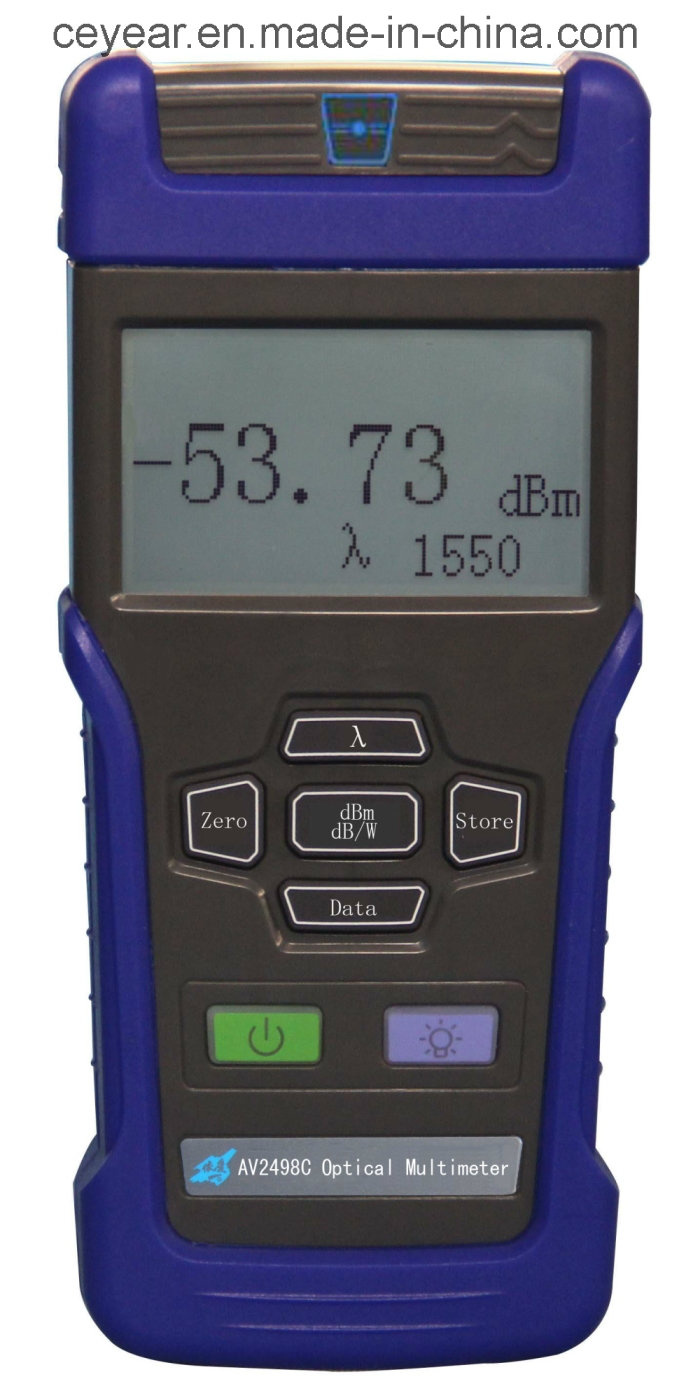

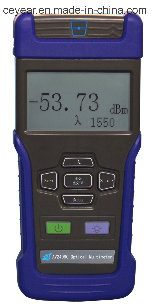

2498C Optical Multimeter

Name: 2498C Optical Multimeter
Brand: all-electronics-online.com
SKU: 730959932
Availability: InStock
Rating: 4.9 (32 reviews)

Price:	US $ 150-200/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	2498C
Wiring Devices:	Integrated Wiring
Certification:	ISO
Condition:	New
Type:	Power Meter

Product Description

Production Overview
2498C is a handheld and intelligent tester of multiple functions, which integrates light source and optical power meter. Besides absolute and relative power tests, it can perform optical loss tests of optical fibers, optical cables and optical passive components. It is ideal for installation, maintenance and repair of optical fiber communication and cable TV systems.

Main Characteristics

1. Small size ,light weight, carry easy , use easy

2. Built-in chargeable battery, AA dry cell also fits

3. Data storage and readout functions

4. Automatic zeroing

5. Anti-dust cover for optical interface, can protect it from being polluted

Portable and easy for operation
Handheld with a small size, easy for carrying, suitable for field operation

Built-in rechargeable battery and dry battery are available
Internal power management circuit controls battery recharging and electricity quantity. You can use the built-in lithium battery. The compartment can hold 3 AA dry batteries as an alternative.

Data storage and readout functions
You can store current power values per your needs, read the data from the upper computer (host computer) software and get the date displayed.

Automatic zeroing
Press the zeroing button to perform automatic zeroing, which can ensure accurate measurement on weak signals.

Technical Specifications

Optical power meter	Model	P1	P2	P3
	Power range	-70dBm~+3dBm	-50dBm~+26dBm	-50dBm~+3dBm
	Calibration wavelength	850,1300,1310,1550nm
	Uncertainty	±5%(-10dBm,1310nm)
	Resolution	Linear type:0.1%, logarithm type:0.01dB/0.001dB
Light source (option)	Central wavelength	1310±20nm or 1550±20nm
	Output power	≥-3dBm
	Certainty	±0.05dB/5min
Optical interface	FC/UPC
Electrical interface	USB
Power	Built-in lithium battery(3.7V); 3 AA dry batteries(1.5V); External AC/DC adapter(220V_AC±10%, 50~60Hz,output voltage 5V)
Power consumption	≤0.5W
Dimensions	W×H×D=86mm×186mm×40mm
Weight	≤0.5kg
Environmental adaptability	Working temperature:-10ºC~+55ºC;storage temperature:-40ºC~+70ºC;relative humidity:5%~95%

China Electronics Technology Instruments Co., Ltd(CETI) is the largest designer and manufacturer of optical and microwave instruments in China, with 50 years of design, R&D and manufacturing experience. We are assigned supplier for HUAWEI, China Telecom, Chinese Army and Millitary, with CE-EMC, CE-LVD, REACH and RoHS certificates.

Our main products include:

Fusion splicer, OTDR, Power meter, Light source and Optical fiber visible fault locator.

Signal generator, Spectrum analyzer, Vector network analyzer, Radio communication tester, Digital Oscilloscope and Microwave millimeter-wave components&modules.

Waiting for your inquiry and wish we could have pleasant cooperation.
