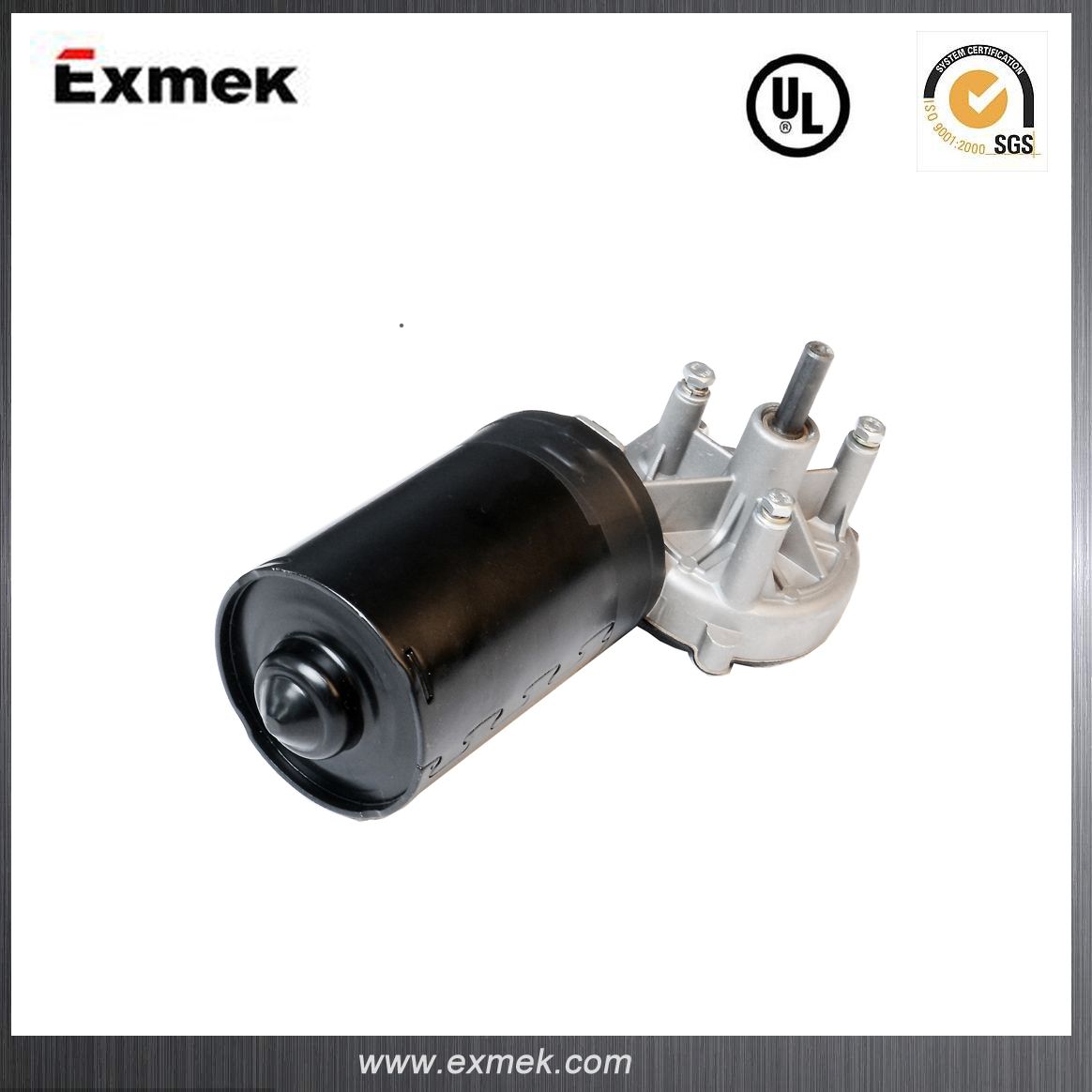

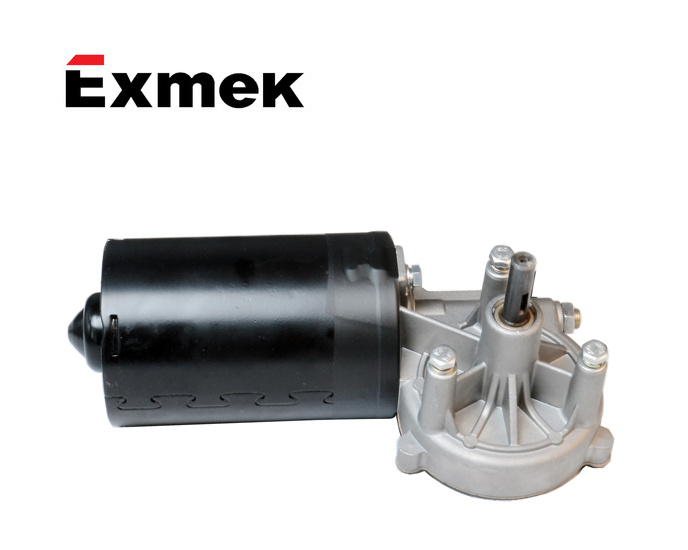

24V DC Geared Motor with Gear Ratio 61: 1
Price: |
US $ 110/Piece |
Min Order: |
100/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal |
General information- Aluminum die-cast gearbox
- Rolled steel housing construction
- Built-in EMC components
- Hall sensor feedback available
- Various output shaft extension are available
- Reduction ratio: 61:1
- Nominal efficiency: 25 - 70%
SpecificationSpecification | MB083HB101-WH61 |
Rated Voltage | 24 VDC |
Rated Current | 9 A Max |
Rated Torque | 8 Nm |
Rated Speed | 50±10%RPM |
Static Torque | 18 Nm |
Starting Torque | 70 Nm |
Current | 16A at 26 Nm |
Duty Cycle | S2 5min |
Insulation Class | B |
Gearbox Specification | |
Ratio | 61:1 |
Noise | Less than 65dB |
Other gear ratio is avaiable at special production
Packaging & Shipping
1, Waterproof plastic bag packed in foam box and carton as outer packing.
2, Export wooden box packaging for products.
Company Profile- Originally motor division of CMEC WUXI- China National Machinery & Equipment Imp & Exp Wuxi Co.,Ltd., one of TOP 20 stated owned Machinery Group
- Privately owned Ltd company since 2000: Wuxi Junhong Automation Technology Co. Ltd.
- Exmek Electric ---Registered Brand Name
- Business: Design and manufacture of motion control products and components
- Highly qualified personnel
- UL, CE, RoHS certification
- ISO 9001, ISO 14000
Company Capabilities- Modern Motor Design and Manufacture
- Part Set Design and Manufacture
- Magnetic Design Software-Motorsolver
- Molding
- Shipping world wide
Why Exmek Electric- Open for general discussion and questions
- Time to market or theatre of operations can be substantially reduced
- Talented team of engineers providing innovative technical solutions
- One stop "supplier" and complete sub-system
- Quality products provided at competitive low cost
- Ability to ship world wide
- On time delivery
- Training at Customer locations
- Fast service on return and repair results
- Many repeated customers
Applications:
Use for swimming pool, automotive, semiconductor, chemical & medical, industrial automation, power tool, instrument, measuring equipment, office automation, various OEM application.
We are open for general discussion and questions. Contact us now!
Exmek Electric, your long-term reliable partner.
Prod Model: |
MB083HB101-WH61 |
Gear Ratio: |
61:1 |
Application: |
Power Tools |
Operating Speed: |
Adjust Speed |
Excitation Mode: |
Excited |
Structure And Working Principle: |
Brush |
Certification: |
Ce |
Brand: |
Exmek |
Exmek Electric
Exmek Electric is principally engaged in the manufacturing and marketing of wide range of precision, high performance electric-mechanical drive components in mainland China. With our three production facility close to Shanghai, we are capable of providing you with more than 200 different types of motors, in range of diameter from 20mm to 120mm.
This include:
DC Brush Motor
DC Brushless Motor
Stepping Motor
Linear Motor
Gear Motor
And also Motor Components, assembly, & More...
Our comprehensive product line is normally sold to medical equipment, industry automation, office automation, printer device, all kinds of industry where quality and long term value is in highest priority. Not only focusing on OEM items with volume quantity for endusers or machine builder, we also work on middle and small quantity items. We are not only interested in motor and motor parts, but also keen on subassembly with added value for your project development. Reliability and consistency is always what we pursue in daily work.
Besides our in house production of DC brush and brushless motors, stepping motors, we are also organized to serve our loyal customer with versatile outsourcing products, through our ISO9001 quality assurance system.
