24V DC to 12V DC Converter Voltage Converter 100A

Name: 24V DC to 12V DC Converter Voltage Converter 100A
Brand: all-electronics-online.com
SKU: 839998605
Availability: InStock
Rating: 4.7 (75 reviews)

Price:	US $ 105/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PV2412-100A

Product Description

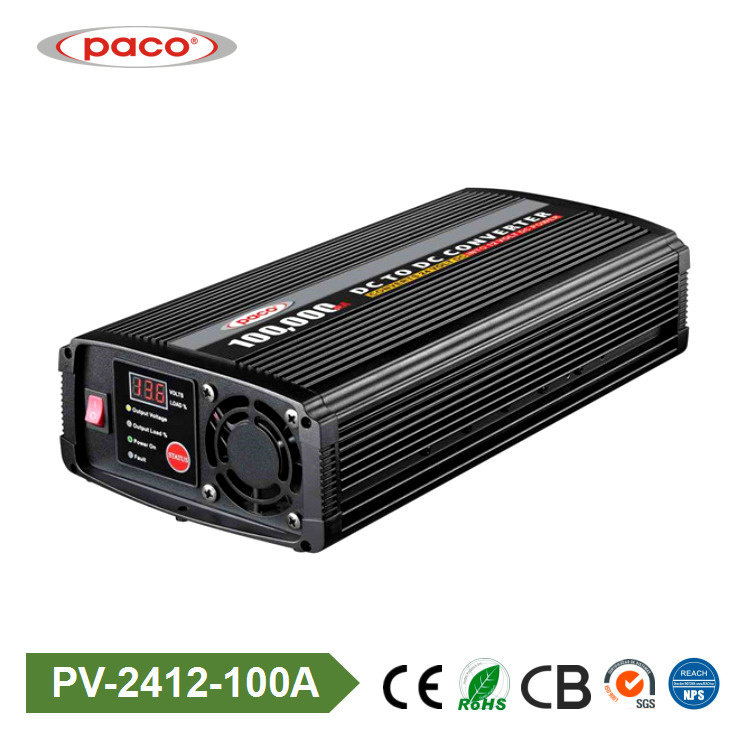

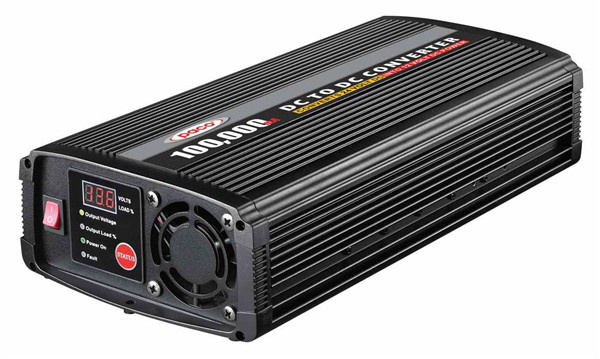

24v dc to 12v dc converter voltage converter 100A

1. Portable and modern design
2. Aluminium cover and cooling fan
3.With full protect functions

Specifications

Model Name:	PV2412-100
Input Voltage	20-30V
Output voltage	12-13.8V
Output Power (Continuous)	100Amp
Output Power (Max)	130Amp
Standby Current	≤110mA
Input Fuse	4x30A
Efficiency	Fuse Location Input 85~90%
Thermal Protection	65 ºC +/- 5 ºC
Connection Cable	20mm2/900mm
Fuse Location	internal
Cooling Fan	Automatic temperature controlled
Input Polarity Reverse	Diode Protection
Output Polarity Reverse	Circuit Protection
Output Short	Circuit Protection
Over Heating	Circuit Protection
Over Load	Circuit Protection
Dimension (L x W x H)	365 x 165 x 79mm
Weight	3.1 kg

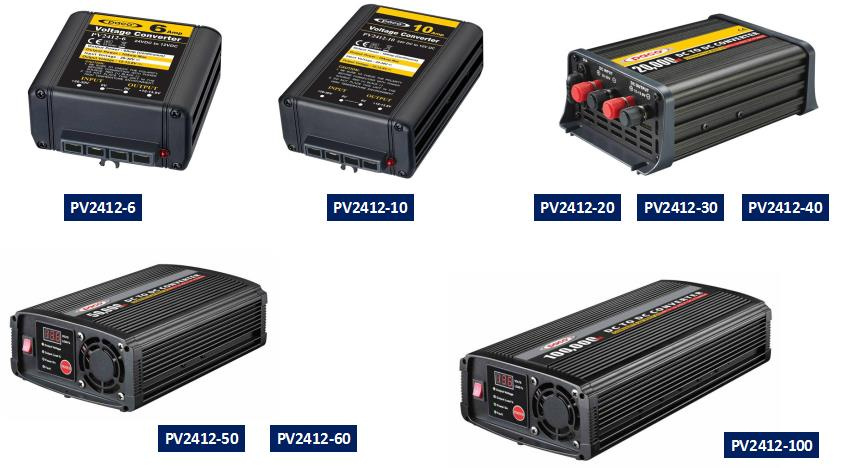

Relative Models

2. Shipping and delivery

FOB Zhongshan Port, delivery time: 35-45 working days against receiving deposit.

Company Information

About us

Ligao (Zhongshan) electrical appliance Co., LTD is one of the most specialized manufacturers of electrical appliance with over 20 years of experience.

Conducted by ISO9001:2000 and gain UL, GS, CB, CE, and E-mark approvals.

Main Products

1. Power Inverter

2. 7-stage switch mode automatic battery charger

3. Power Inverter with Charger

4. Solar Charge Controller

5. DC to DC Converter

6. Solar Lantern

7. Automatic Voltage Regulator

8. Portable Cooler & Warmer

Ligao (Zhongshan) Electrical Appliance Co., Ltd has over 20 years of experience in design, manufacturing and marketing of solar supply products and electrical appliances. Conducted by ISO 9001: 2008, with CE, CB, RoHS approvals from SGS, we only provide high quality products.

Our products include:

Power inverter
Battery charger
Automatic voltage regulator (stabilizer)
Uninterrupted power supply (UPS)
Car cooler and warmer
Wireless digital doorbell
TV antenna

Covering an area of 40, 000m², with over 500 workers, our factory is capable of providing OEM and ODM services adequately. With our quality products, competitive prices and excellent services, we win trusts from our clients from the EU, the US, the Middle East, Africa, Asia, and South America. To learn more about us, contact us now.
