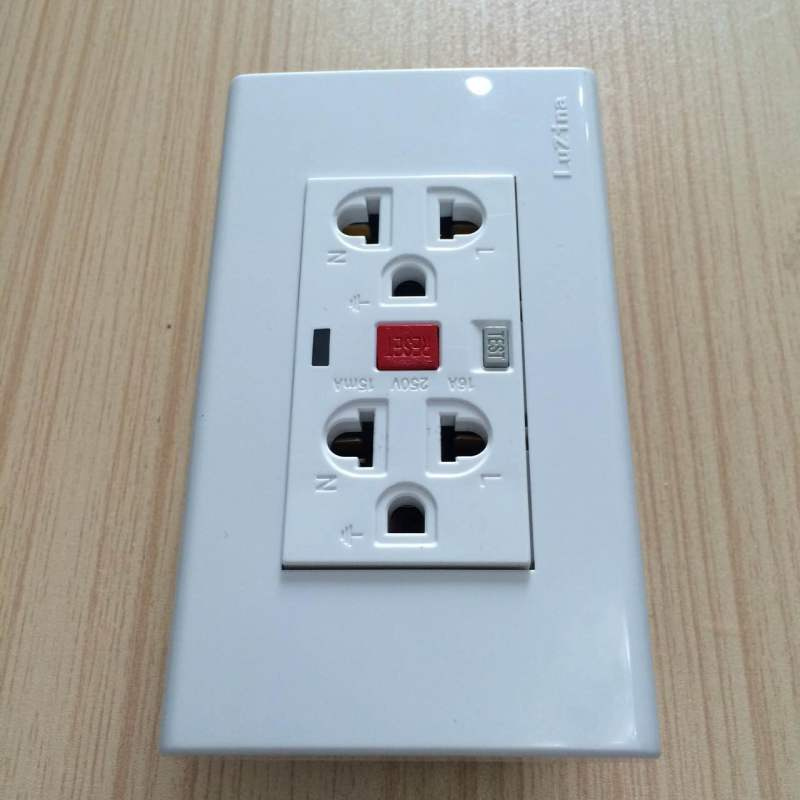

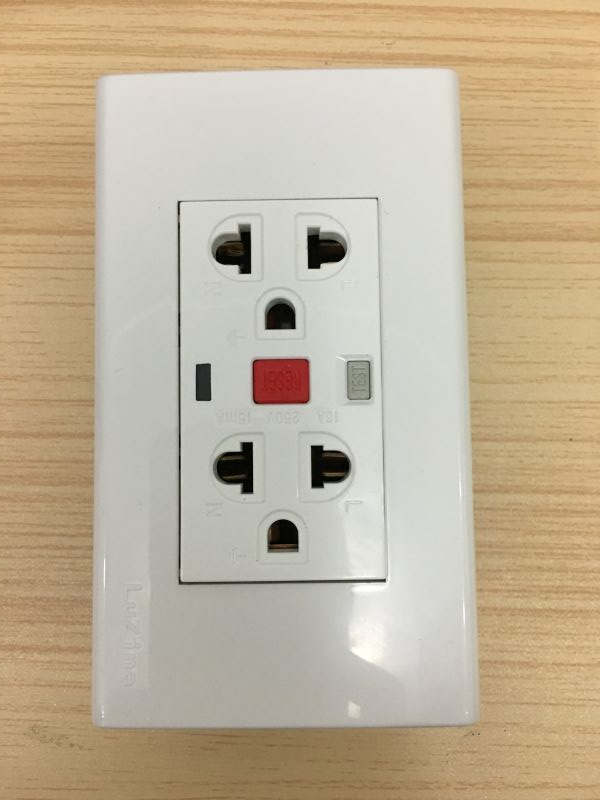

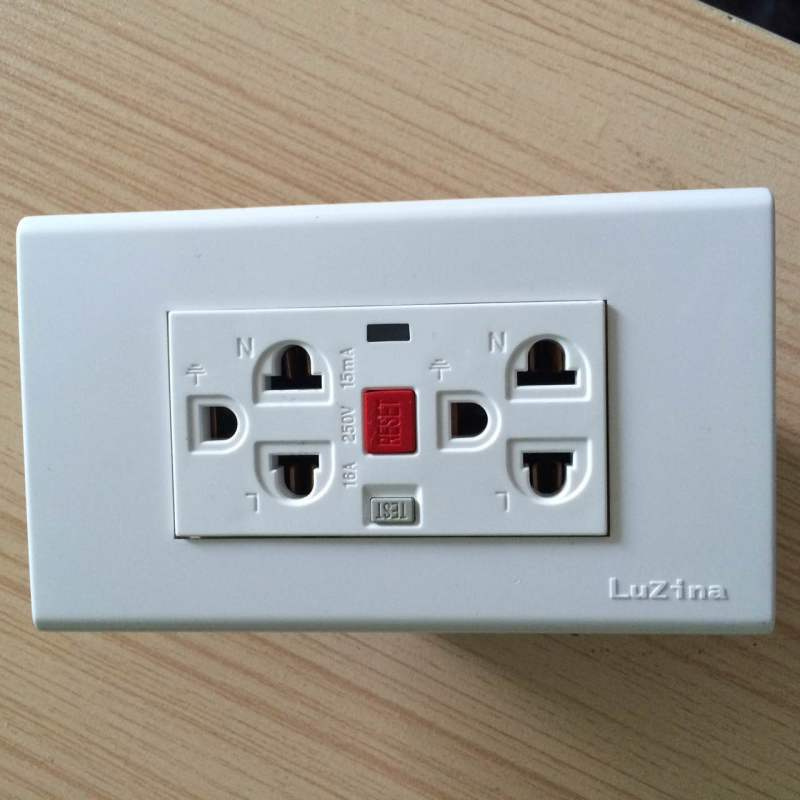

250V 16A Socket with 15mA GFCI

Name: 250V 16A Socket with 15mA GFCI
Brand: all-electronics-online.com
SKU: 711711212
Availability: InStock
Rating: 4.4 (106 reviews)

Price:	US $ 6.4/Piece
Min Order:	1000/Piece
Pay Type:	Paypal

Contact Supplier

Showroom Product Company Profile

GFCI
250V 16A SOCKET WITH 15MA GFCI
PRODUCT CHARACTERISTIC
The switch contacts are made of high quality silver alloy material ,which have a good performance against electric arc and melt weld. The on-off operations exceed 40000 times.
The socket is made of phosphor bronze, which have the character of good electrical conductivity and lasting elasticity.

Outline size:	86x146mm
Installation size:	83.5
Material:	PCPOMPA66
Copper:	QSn5.6-0.1 H62 Hpb59

SWITCH SPECIFICATION

Lifetime	≥40000
Heat-resistant	100 ? C / 1h
Insulation Resistance	≥5M Ω
Damp Resistance	48h > 5M Ω
Temperature Raise	≤ 45K
Earthing Provision	≤0.05M Ω

SOCKET SPECIFICATION

Lifetime	≥40000
Heat-resistant	100 ? C / 1h
Insulation Resistance	≥5M Ω
Damp Resistance	48h > 5M Ω
Temperature Raise	≤ 45K
Earthing Provision	≤0.05M Ω
Electric Strength	2000 V ~1 min

PACKING: 10PCS/inner box , 120PCS/carton

PRODUCTS DESIGN: BRITISH DESIGN SIMILAR TO MK

TRANSPORTATION: by sea or by air

COMPANY INFORMATION:
Company name: Zhejiang Lide Electric Co.,Ltd
Founding Year: 1997
Qty of employee: 800 employees
Production Capacity: 6000000pcs month
With 46 set injection machines,part of them with Robert.Operate fully automatically. 25
pcs fully automatically assembly line.

Factory In Wenzhou
4000sq meter production Area
7000 sq.meter storage Area

Facotry in Qidong
52000sq. meter land Area
30000sq.meter Building Area

Main products: Electrical equipments. Specilizes in Wall switch and socket,circuit breaker, exhaust fan,mould

Qualifications of Quality: CE CB BS SASO SAA ISO9001

Main Markets: Middle East, Africa, Southeast Asia, South Africa, Europe

Prod Model:	GFCI
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Open Frame
Poles Number:	1
Structure:	GFCI
Type:	GFCI

Zhejiang Lide Electric Co., Ltd.Is an enterprise specialized in manufacturing advanced electric appliances and accessories, such as wall switches, sockets, exhaust fan, circuit breaker and so on.

The products are widely used in different regions of China and exported to Southeast Asian, Middle East, South American countries and so on.The products of the company are made in accordance with international IEC standards, The products choose pure silver contactor, and the conductor parts choose high grade copper and insulator parts choose high strength insulating PC flame-proof material.Which is to assure the durability and security of the appliances.The company approved with ISO9001 international quality certification system and other certificates such as CE CB, BS, SAA, RoHS, SASO.

With abundant capital, advanced equipment, strong technical team, modern management, overall quality guarantee system, good credit and public praise, the company consistently pursues innovation, good quality, satisfactory customer feedback and perfect services, which bring us high reputation among our customers.The company has a bright future, sticks to the standards and quality of it's history while moving forward with continued innovation, quality and enthusiasm!
