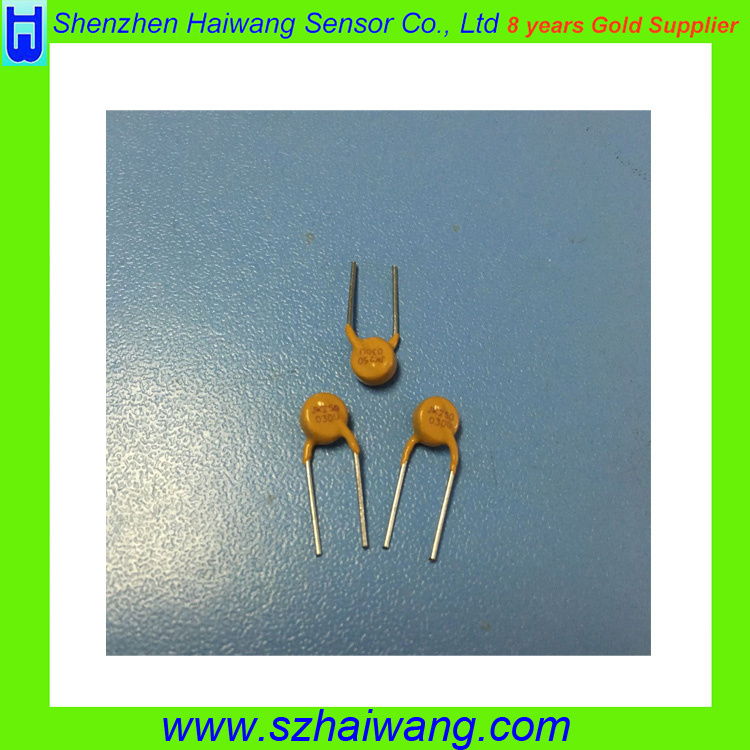

250V Resettable Thermal Fuse
Specification
| Item | PPTC Resettable Fuse |
| Model | JK250-180U |
| Max V | 250V |
| Max I | 10A |
| I H | 180mA |
| Max R | 3.0 ohm |
| Min R | 2.0 ohm |
| Fig. | 4 |
| Function | Electrical overcurrent protection |
Working Principle
As an overcurrent protection component, traditional fuse only protect one time and need to replace another once burned. The recoverable fuse, one newly overcurrent protection component, has overcurrent protection and auto recoverable.
Overcurrent Protection
JKPPTC component is at the low resistance state to ensure the circuit work normally. When encountered short circuit or high current, JKPPTC component can heat by itself to improve resistance with limiting small enough current to protect circuit.
Environment Temperature Effective
The current is on the decrease by recoverable fuse when environment temperature is higher than 25°C. The current can 100% recover by recoverable fuse when the operating temperature is 20°C in the circuit. If more than two time current occurs, the recoverable fuse can work. The higher environment temperature and current passe through, the shorter the working time is.
Classification
1.Keeping Current(IH): the highest current when don't touch PPTC recoverable fuse under 25 ºC quiescent environment
2.Touching CurrentL(IT): The lowest current when PPTC recoverable fuse resistance becomes lowest one to the highest one under 25ºC quiescent environment.
3.Max Voltage(V max): PPTC recoverable fuse can undertake max working voltage.
4.Max Current(I max):P 35 OTC recoverable fuse can undertake max current
5.Movement time(T trip):The max movement tine under the specified current
6.Movement Power(Pd typ):Dissipation power when PPT recoverable fuse is in movement state under25ºC environment
7.Min Resistance (R min): the min zero power resistance under 25 ºC environment
8. Max Resistance: the max zero power resistance under 25 ºC environment
Applications
1)FOR CAR,|
2)Line Protection
3)Electronic control template
4)Engineering and industrial control
5)Testing devices
6)Voltage output
7)telecontrol
8)Fire alarm system
Models for your choice, for more models, please contact with us freely.
