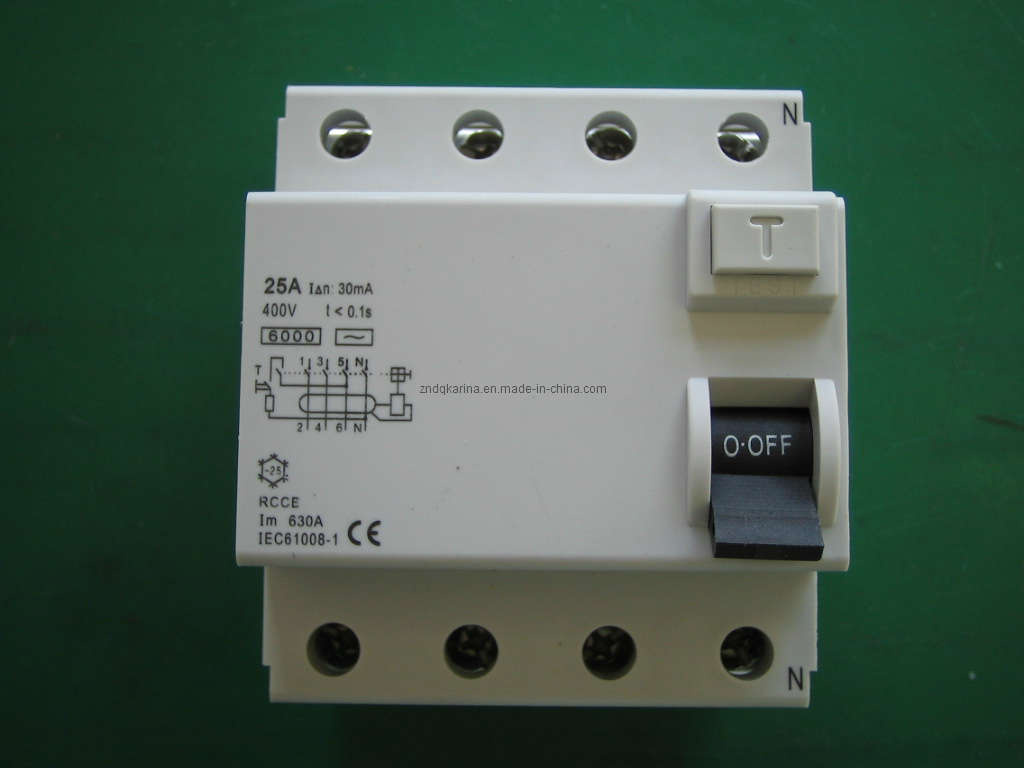

25A Residual Current Operated Earth Leakage Circuit Breaker (ZSL7-63/2P)

Name: 25A Residual Current Operated Earth Leakage Circuit Breaker (ZSL7-63/2P)
Brand: all-electronics-online.com
SKU: 699481305
Availability: InStock
Rating: 4.5 (63 reviews)

Price:	Negotiable
Trade Terms:	EXW /FOB/CFR/CIF
Min Order:	500/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

A) Product Features
ZSL7 series residual current operated earth leakage circuit breaker (herein after referred to as RCCB) is compact, light-weighted, and with an attractive outer design. This product can be easily used as a module in conjunction with other electrical products. Its function is not influenced by voltage fluctuation (i. e. Independent of voltage level), and suffers very little effect from an electro-magnetic field. This product is capable of functioning normally even when only one pole is powered on.
B) Range of Application
This RCCB is for use in a home or other similar environments, to protect personnel safety against electrical injury, and to prevent fire hazard that may happen in case that any over-current protection device fails to cut down a earth leakage current.
This product is widely applicable in facilities for industrial production, commercial usage, or residential purposes, etc.

Frame Size Max Rated Current A	Rated Voltage Ue V	NO. of Poles	Rated Current In A	Frequency Hz	Rated Making and Breaking Capacity Im A	Rated Conditional Residual Short Circuit Current Ic A	Rated Conditional Short Circuit Current Inc A	Rated Residual Operating Current In mA	Rated Residual Non-operating Current Ino mA
63	230	2	10, 16, 25, 32, 40, 63	50	630	6000	6000	30 100 300	15 50 150

Prod Model:	ZSL7-63/2P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Circuit Breaker
Function:	RCCB
Arc-extinguishing Medium:	Air
Breaking Capacity:	Low Voltage Circuit Breakers
Certification:	ISO9001-2000
Operation:	Manual Type
Installation:	Insert
Speed:	Normal Type Circuit Breaker
Structure:	Moulded Case Circuit Breaker
