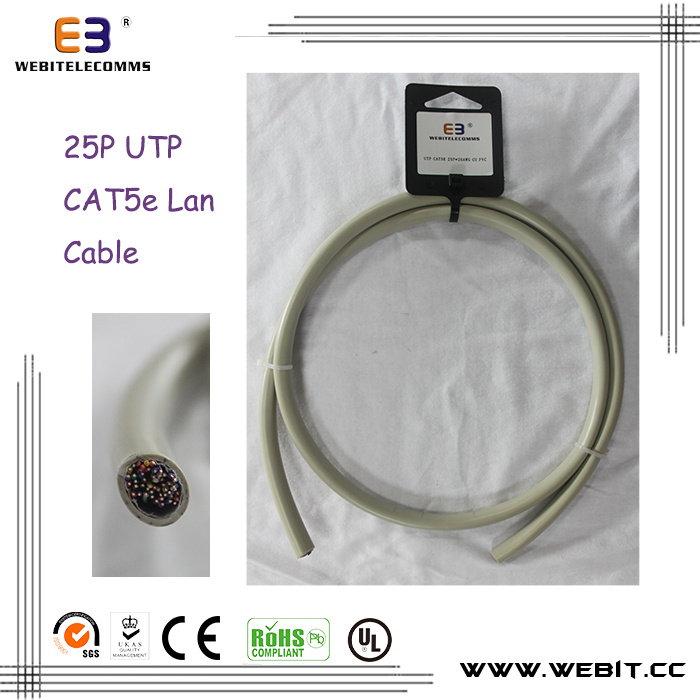

25p Cat5e UTP Installation Cable

 Production describe and Specification:
U/UTP unShielded Cat5  Twisted 25Pair Installation cable, HDPE Insulation;     PVC/LSZH Jacket .


Appliacation

1. Exceeds requirements of ANSI/TIA-568-C. 2 Category 5/ Category 3 and ISO 11801 2nd Edition Class C channel standards.


2. Exceed requirements of ANSI/TIA-568-C. 2 Category 5/ Category 3  Component standards;

3. Descending length cable marking enable easy identification of remaining cable which reduces installation time and cable scrap.

4. Color Availability: Additional cable colors available.

5. Patent products: CN200920124769.9.



Mechanical Characteristics :

Cable under the minimum tension ≥ 400N

Conductor elongation: ≥ 15%

Jacket before Aging

Tensile strength ≥ 13.5Mpa

Elongation≥ 150%

Jacket after Aging

Tensile strength ≥ 12.5Mpa

Elongation≥ 125%





Electronic Characteristics :

Impedance: 1-16MHz 100± 15(ohms).
Rated Temperture: 75º C
DC Resistance unbalance(%): Max2.5
DC Resistance 20º C: 111 Ohms
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Transfer Impendance: Max 10 mohms/m@100MHz.
Installation Resistance: >5000MΩ *KM
Dielectric strength: DC 2500V 2S



Assortment	Shieded	Describe
CAT5  Installation cable	U/UTP unShielded	U/UTP unShielded CAT5 Twisted  25 Pair Installation cable



Conductor
Conductor	Insulation	Qty of Conductor	Indiviual pair shied	Overall shield	Drain wire
Solid Bare Copper	HDPE	twisted in 25pairs	none	none	none



	Outer jacket information
Item no	Outer jacket	overall diameter(mm)
D105-25-P	CMX	12.5±1.0
D105-25-L	LSZH	12.5±1.0
D105-25-E	LDPE	12.5±1.0
D105-50-P	CMX	17.2±1.0
D105-50-L	LSZH	17.2±1.0
D105-50-E	LDPE	17.2±1.0
D105-100-P	CMX	23.5±1.0
D105-100-L	LSZH	23.5±1.0
D105-100-E	LDPE	23.5±1.0
