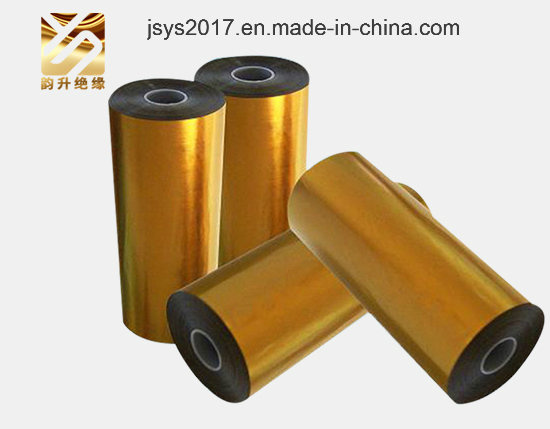

25um Thickness Gold Polyimide Film with Roll Packed
Price: |
US $ 20-3016 |
Min Order: |
10016 |
Pay Type: |
L/C,T/T,D/P |

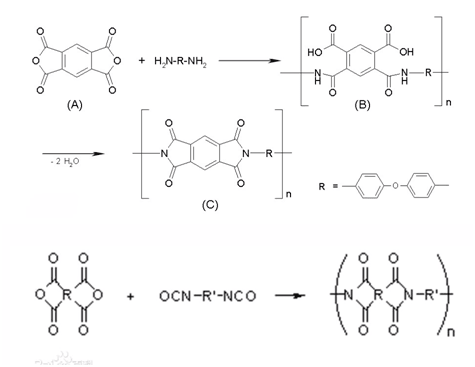

OverviewQuick Details: Original Place Baoying, Jiangsu Brand Name:YunshengType: Insulation Film Material:polyimideVoltage: 11 KV Color: GoldTensile Strength 100Mpa Surface Resistivity: ≥1.0X1014Volume Resistivity: ≥1.0X1010 Heat Resistance: ≥180ºCShrinkage: ≤0.35 Model Number: YS2017Application: High Temperature Production Cycle:: 400kg/day Packaging & DeliveryPackaging Details------------Standard wooden pallet with RollEach film packed in rolls with bubble paper then put into carton. Several cartons packed in one wooden pallet. Delivery Time---------------5-10 days, detailed based on order quantity. Product Description1. What is Polyimide ?Polyimide is a special polymers material with extensive use. As a special engineering material, polyimide has been widely used in aviation, aerospace, microelectronics, nano, liquid crystal, separation membrane, laser and other fields. In the 60s of last century, all countries put the research, development and utilization of polyimide in one of the most promising engineering plastics in the year of 21 Century. Polyimide, because of its outstanding characteristics in property and synthesis, either as structural materials or as a functional material, its great application prospects have been fully understood, known as the "problem solver", and also there is a word:"there is no such thing as today's microelectronics technology without polyimide ". It's used in various fields, and the most common use is Polyimide Film(PI) 2. Technical PerformancePI has excellent physical and mechanical properties, such as thermo stability and high temperature resistance, High tensile strength, Lower linear expansion coefficient, Suitable elastic modulus, Minimal heat shrinkage, Good self lubrication, and Strong radiation resistance. It also has Excellent electrical and chemical stability. Character | Thickness(UM) |
25 | 50 | 75 | 135 | 150 |
tensile strength(Mpa) | TM | 135 | 165 | 150 | 140 | 130 |
MD | 160 | 170 | 165 | 155 | 150 |
elongation at break(%) | TM | 50 | 60 | 65 | 70 | 80 |
MD | 45 | 55 | 60 | 65 | 75 |
Heat shrinkage Rate % | 150ºC- 400ºC | ≤1.0 ≤3.0 |
dielectric strength | KV/mm | 250 | 245 | 230 | 220 | 180 |
surface resistivity | Ω | ≥1.0X1014 |
volume resistivity | Ω.M | ≥1.0X1010 |
relative dielectric constant | | 3.5±0.4 |
dielectric dissipation factor | | ≤4.0X10-3 |
long-term heat resistance | ºC | ≥180 |

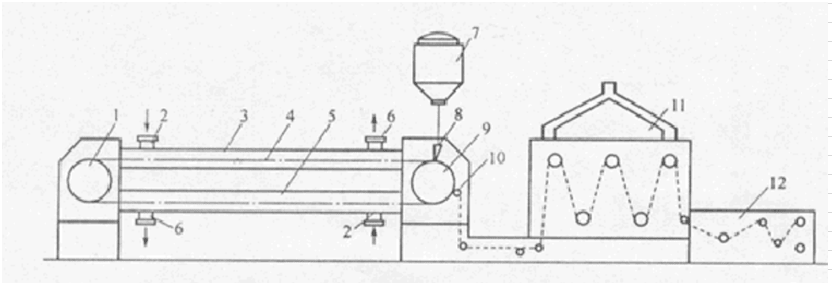

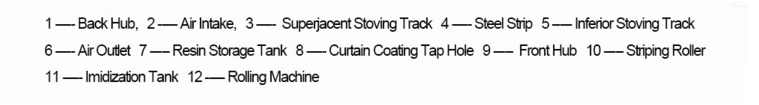

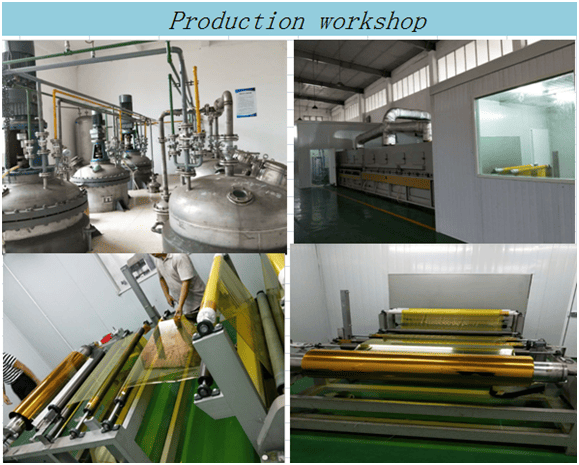

3. Production FlowchartProduction Workshop Trade InformationContact InformationTel | +86-514-80893798 | Mob | +86-13705255945 |
Fax | +86-514-80893795 | | |
l | | | 15952524005 |
Add | Zhenxing Road of Liubao Industrial District, Baoying County, Jiangsu Province, China |
FAQ 1. Q: Are you a factory or trading company? - We are factory, specialize in polyimide film above 10 years in china.
2. Q:Where is your factory located? How can I visit there? - Our factory is located in Baoying County ,Jiangsu province,China .
All our clients, from home or abroad, are warmly welcome to visit us!3. Q: Can you do OEM?- Yes, we can do OEM products. It's no problem.
4. Q:How can I get some samples?- 1. We are honored to offer you samples. New clients are expected to pay for the courier cost, the samples are free for you, this charge will be deducted from the payment for formal order.
- 2. Regarding the courier cost: you can arrange a RPI (remote pick up) service upon Fedex, UPS, DHL, TNT, etc. to have the samples collected; or inform us your DHL collection account. Then you can pay the freight direct to your local carrier company.
5. Q:How does your factory do regarding quality control? - "Quality is priority? Yunsheng people always attach great importance to quality controlling from the very beginning to the very end:
1. All raw material we used are environmental-friendly;
2. Yunsheng workers care every details in handling the producing and packing processes;
3. Quality Control Department specially responsible for quality checking in each process.
Prod Model: |
YS1701 |
Application: |
Switch Baseplate |
Type: |
Insulation Film |
Chemistry: |
Hybrid Insulation |
Thermal Rating: |
200 200 |
Maximum Voltage: |
20KV~100KV |
Material: |
Polyimide |
Color: |
Gold |
Brand: |
Yunsheng |
Jiangsu Yunsheng Insulation Technology Co., Ltd. Was founded in 2016, located in Liubao Town Baoying County, Jiangsu province, specializing in the production of polyimide film Products; The company mainly engaged in polyimide film research and development, manufacturing and sales, mica, epoxy laminated products, ceramic composite steel pipe, metal rare earth wear-resisting pipe, elbow, pneumatic conveying wear-resistant double casing, bimetal wear-resistant composite pipe, slide line and accessories, electric appliances manufacturing, sales.
Our company is the domestic normal temperature use of polyimide film manufacturers. With super thick polyimide film production of prominent advantages, mass production of Super thick polyimide film enterprises, the film has good heat resistance, dimensional stability, good mechanical properties, dielectric properties, low moisture absorption, low-heat expansion and other outstanding comprehensive performance, which has been widely used in a variety of traction motors, submersible motor, nuclear power equipment, high temperature wire and cable, electromagnetic wire, special electrical appliances, busbarm trough, gas masks, high-temperature flexible printed circuit substrates, flat circuits and speaker sound ring skeleton and other fields, The company has strict product quality management system and technical research and development force, product specifications complete testing means to adapt to the market for the term, proactive, and constantly open up.
''Quality first, the supremacy of credibility" is the company's purpose and all staff will continue to strive to high-quality products, quality service to provide customers with production security. And we look forward to working with customers to create brilliance
