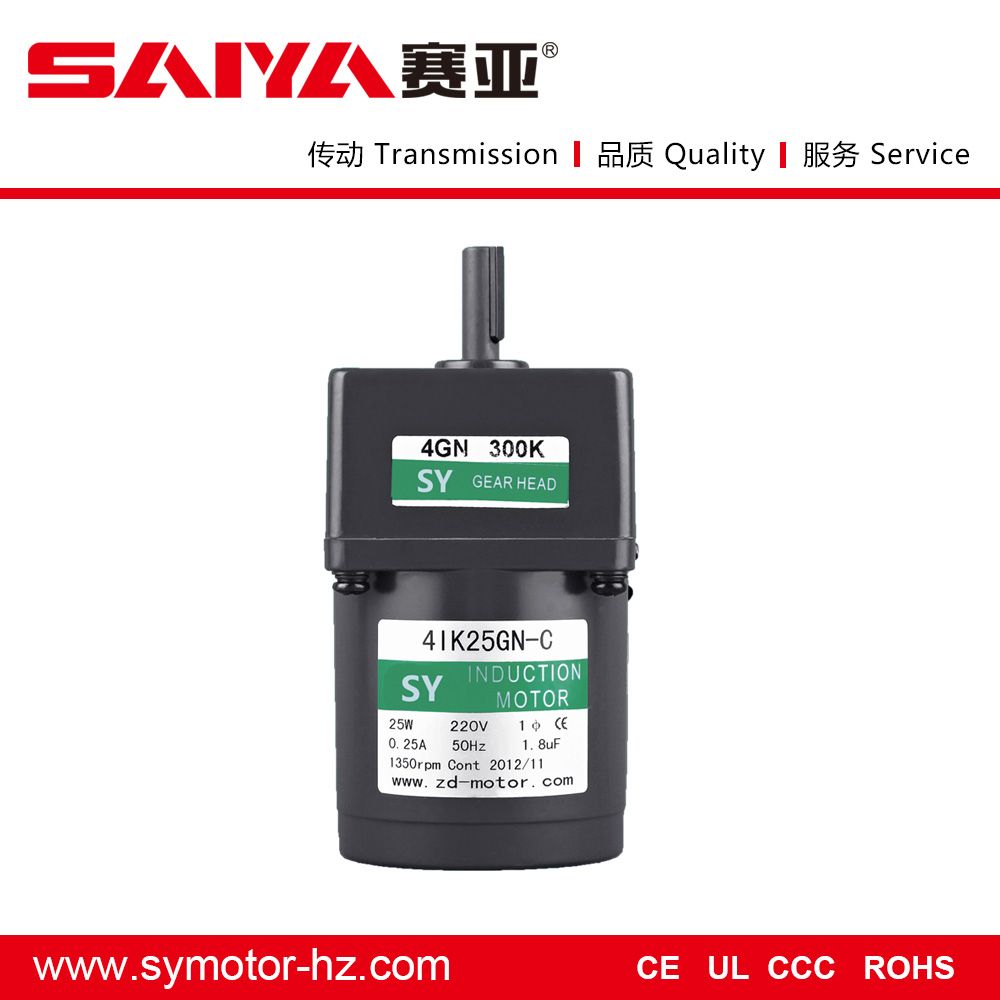

25W General Induction AC Gear Motor Electrical Motor

Name: 25W General Induction AC Gear Motor Electrical Motor
Brand: all-electronics-online.com
SKU: 737063415
Availability: InStock
Rating: 5 (125 reviews)

Price:	US $ 58.9/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	4IK25GN-C / 4GN300K
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimensions Of Device:	104mm
Power:	60W
Voltage:	220V, 230V
No-Load Speed:	1500rpm
Reduction Ratio:	3~200
Item Name:	25W General Induction AC Gear Motor Electrical Mot
Function:	Control
Number Of Stator:	Single Phase and Three Phase
Certification:	SGS
Brand:	Sy

Product Description

25W General Induction AC Gear Motor Electrical Motor

Induction motor,AC Gear motor,Induction Gear motor
Specification:
1) Dimensions:80X80mm
2) Power: 25W(6-140W For choose)
3) Voltage:110V,220V,380
4) Speed:1300,1350,2700,2800rpm
5) Reduction ratio: 3~ 200K&250~ 2000K
6) Application: Medical appliance, packing mechanism, printing mechanism, cup making machine, textile machinery,

The data sheet and price range only typical data for reference, Gear motor's price are usually decide by Motor's reduction ratio and torque. Please fell free to contact with me if youwant this motor Specificaton or Drawing.

Allowable Torque on Gearbox Model of Gearbox
Frequency	Reduction Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25
50HZ	Output Shaft Speed	r/min	500	417	300	250	200	166	150	120	100	83	75	60
	Allowable Torque	N. m	0.52	0.63	0.87	1.05	1.31	1.57	1.74	2.91	2.62	3.15	3.15	3.94
	Allowable Torque	kgf. cm	5.3	6.4	8.9	10.7	13.4	16.0	17.8	22.3	26.7	32.1	32.1	40.2

Frequency	Reduction Ratio		30	36	40	50	60	75	90	100	120	150	180	200
50HZ	Output Shaft Speed	r/min	50	41	37	30	25	20	16	15	12	10	8	7.5
	Allowable Torque	N. m	4.72	5.66	6.29	7.12	7.84	7.84	7.84	7.84	7.84	7.84	7.84	7.84
	Allowable Torque	kgf. cm	48.2	57.8	64.2	72.6	80.0	80.0	80.0	80.0	80.0	80.0	80.0	80.0

	Reduction Ratio	L(mm)	(kg)
Gearbox	4GN3K-GN18K	32	0.43
	4GN20K-GN50K	43.5	0.57
	4GN60K-GN200K	43.5	0.61
Gearbox	4GN10X	32	0.43
Motor			1.64

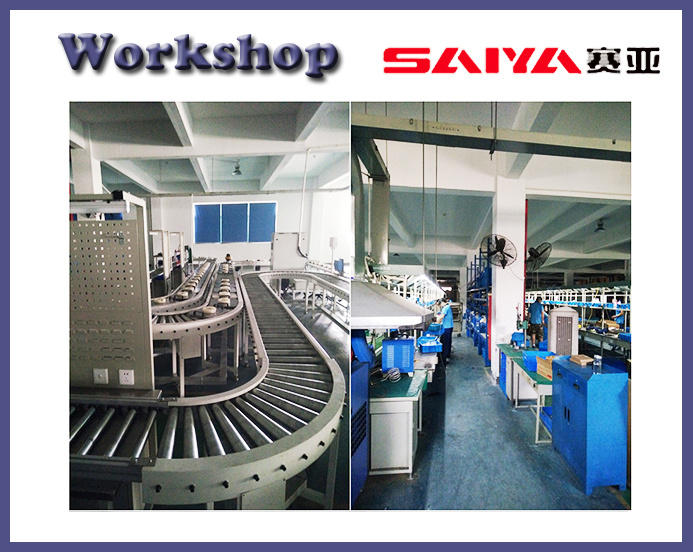

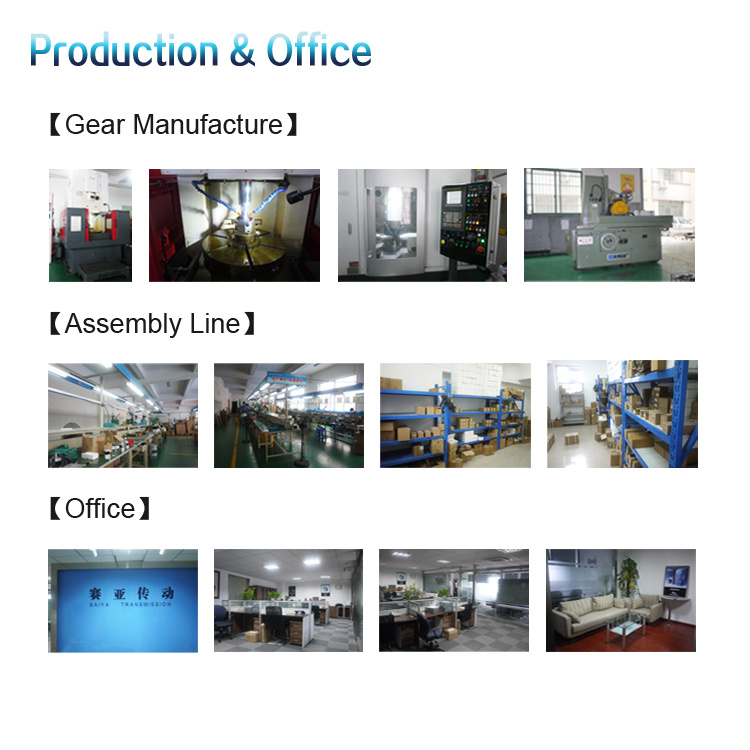

company show

The brief introduction of our company:

Our company supplys different kinds of products. High quality and reasonable price.

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

To perfect our service, we provide the products with good quality at the reasonable price.

The Products Of Our Company:

Our Company Is Specialized In Gear Motors. At Present, There Are Three Kinds Of Motors In Our Company:

1) Micro Gear Motor Include Micro AC Gear Motor And Micro DC Gear Motor;

2) Small AC Gear Motor;

3) Planetary Gear Motor.

The Usages Of Our Products:

They Are Widely Used In Machine Tools, Textile Machinery, Medical Appliance, Conveying Machines, Printing Mechanism, Food Machinery, Vending Machines, Packing Machinery, And Gumming Machines. With Excellent Equipment, Advanced Procedure, Scientific Management, And Modern Test Method, We Can Provide All Customers Both At Home And Abroad With Our Top Quality Products, Favorable Prices And Sincere Service.

You Can Tell Us About Your Requirements, And We Will Help You To Find The Right Type And Model Which Is Suitable For Your Products. Or You Can Also Provide Your Products Information And We Can Help You To Choose The Right Motors For You.

We Hope That We Can Establish Long-term Business Relationships Together With You For Mutual Business Success.

Motor Voltage, Power, And Speed Will Be Customized According To Your Request Under The Allowed Circumstanced Of Adoptable Dimension
