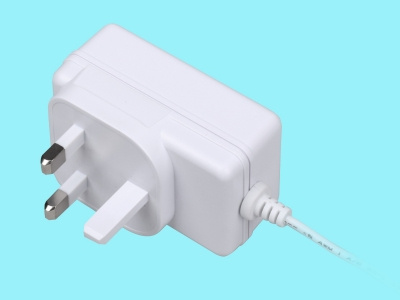

28.8W BS White Casing Universal AC/DC Adapter Switching Power Supply

Name: 28.8W BS White Casing Universal AC/DC Adapter Switching Power Supply
Brand: all-electronics-online.com
SKU: 835363525
Availability: InStock
Rating: 5 (104 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DKS301
Efficiency:	Conform to Level V
Conform To Level V:	± 5%
100% Burn-in Testing:	Yes
Certification:	CSA
Output Type:	AC or DC
Input Voltage:	100V-240VAC
Brand:	Tecqum

Product Description

Input Characteristics   Enviromental Parameter   Safety Standards
CB: IEC/EN60950 60065 61558
Input Voltage:100-240Vac Operating Temperature:0-40ºC
   UL: UL60950 60065

Input Frequency:50~60Hz Operating Humidity:5%-95% PSE: J60950 J60065

Input Current:0.15A Max Storage Temperature:-20ºC-80ºC GS: EN60950

SAA: AS/NZ60950

KC: K60950
No Load Power:0.1W

Product Description OUTPUT

Model No	Voltage Range(V)	Current Range(A)	Max Power(W)
DQS181-xxxyyy-z	9.0-12V	0.01-2.5	24W
DQS181-xxxyyy-z	12.1-16V	0.01-0.98	24W
DQS181-xxxyyy-z	16.1-24V	0.01-1.78	28.8W

Function:OCP OVP OLP SCP

MTBF:>50000 Hours

Insulation Resistance 50Mohm Min at500V

Hi-Pot:3000Vac 10MA 1min

Content:RoHS REACH PAHS

Product Size: L:70.0 X W:45.0 X H:30.5MM

DongGuan TecQum Electronics Technology Co., Ltd. is engaged in power supply and the power of independent development design, production and sales of integrated industry leading production factory. DongGuan TecQum with strong economic strength and long-term development of the grand strategic objectives, from home and abroad to introduce a series of advanced production and testing equipment, machines, tools, assembly of the two production lines, in order to meet the EU RoHS/REACH directive, the company established a comprehensive green environmental production system to configure a professional production site and equipment, the monthly production capacity of 30 thousand sections of switching power supply and charger, the company plans in three years to produce 60 thousand.

Dongguan TecQum Electronic Technology Limited Company products covering all kinds of power supply, relates to communication power supply, switching power supply, adaptor, charger, vehicle power supply, LED power supply, DC and other products, Each a power line have passed the UL, CE, Jun SAA, PSE, GS, CQC, KC and other security certification. DongGuan TecQum Electronic Technology Limited company will continue through the network to technology innovation and management innovation as the focus, adhering to the "human truth promote corporate culture to the quality of services to improve the growth of enterprises, to strengthen the management of enterprises to continue life growth profit feedback" corporate welfare "business philosophy, at the same time to" six "further implement the spirit of the whole production process, firmly establish the" quality first and quality first "thought. With the scientific management, first-class quality, high quality service, the company continuously meets the international market demand.
