| Prod Model: |
RGB Controller |
| Power: |
288W |
| CCT: |
Ww/ Wh/ R/ G/B/Y/RGB/RGBW Ect Available |
| Lead Time: |
3 Working Days |
| Warranty: |
3years |
| Application: |
Building |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
<50m |
| Material: |
Plastic |
| Battery Type: |
Button Battery |
| Voltage: |
12V-24V |
Product Description

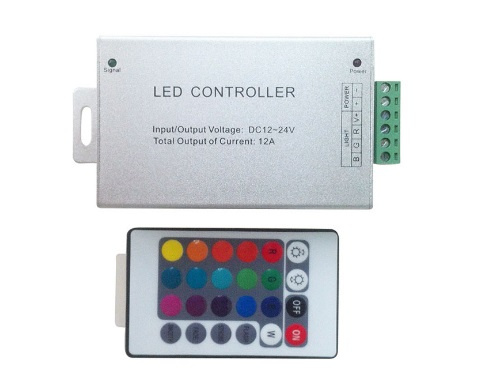

288W 24key RF Remote Dimmer for 5050 3528 2835 SMD RGB Controller
Product Description
24-key aluminum RF controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through RF remote control. In addition, customers can adjust their light color as they like.
Specifications | Working temperature | -20-60ºC |
| Supply voltage | 12V~24V optional |
| 0utput | 3 channels |
| Connecting mode | common anode |
| External dimension | L130*W64*H24 mm |
| Packing size | L137*W80*H54mm |
| Net weight | 185g |
| Gross weight | 215g |
| Static power consumption | <1W |
| Output current | <4A or 8A each channel Optional |
| Output power | 12V/4A < 144W;12V/8A< 288W;24V/4A< 144W;24V/8A< 288W
|
Functions:
