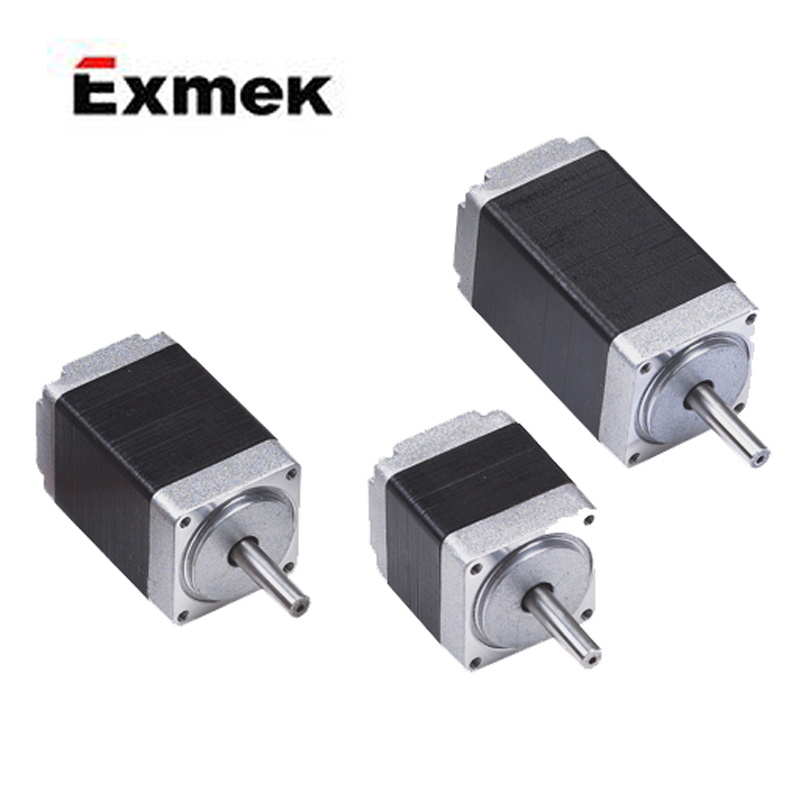

28mm 1.8 Degree Customized Enhanced Hybrid Stepper Motor (MP028NB101)

Name: 28mm 1.8 Degree Customized Enhanced Hybrid Stepper Motor (MP028NB101)
Brand: all-electronics-online.com
SKU: 634020345
Availability: InStock
Rating: 4.6 (118 reviews)

Price:	US $ 12.07/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MP028NB101
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

General information

Step angle accuracy: 1.8°±5%
Temperature rise: 80°C max
Ambient temperature: -20°C~+50°C
Insulation resistance: 100M(OHMS). min., At 500V
Dielectric strength: 500V AC, 1S, 2mA
Insulation class: B

Specifications

Part No.	MP028NB101
Phase Current	0.67(A)
Phase Resistance	5.6(OHMS)
Phase Inductance	4.2(mH)
Holding Torque	6(Ncm)
Detent Torque	0.8(Ncm)
No. of Wires	4
Rotor Inertia	9.5(g.cm²)
L	31.5(mm)
Weight	100(g)

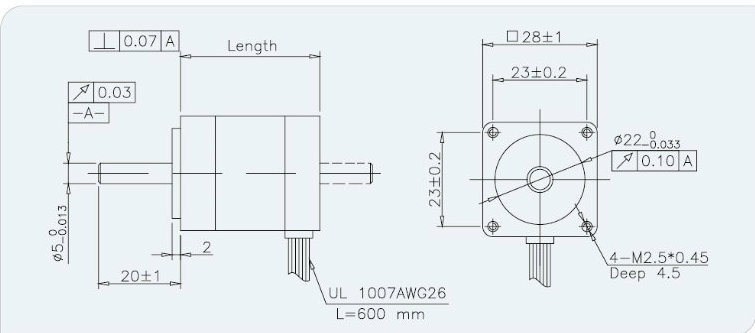

Mechanical

More special design available. Welcome to contact.

Exmek Electric

Exmek Electric is principally engaged in the manufacturing and marketing of wide range of precision, high performance electric-mechanical drive components in mainland China. With our three production facility close to Shanghai, we are capable of providing you with more than 200 different types of motors, in range of diameter from 20mm to 120mm.

This include:

DC Brush Motor

DC Brushless Motor

Stepping Motor

Linear Motor

Gear Motor

And also Motor Components, assembly, & More...

Our comprehensive product line is normally sold to medical equipment, industry automation, office automation, printer device, all kinds of industry where quality and long term value is in highest priority. Not only focusing on OEM items with volume quantity for endusers or machine builder, we also work on middle and small quantity items. We are not only interested in motor and motor parts, but also keen on subassembly with added value for your project development. Reliability and consistency is always what we pursue in daily work.

Besides our in house production of DC brush and brushless motors, stepping motors, we are also organized to serve our loyal customer with versatile outsourcing products, through our ISO9001 quality assurance system.
