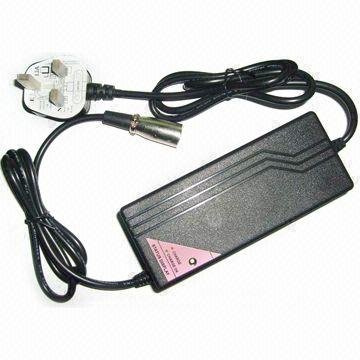

28V 1.8A Smart NIMH Battery Charger

Name: 28V 1.8A Smart NIMH Battery Charger
Brand: all-electronics-online.com
SKU: 615789272
Availability: InStock
Rating: 5 (127 reviews)

Price:	US $ 13/Piece
Trade Terms:	FOB,EXW
Min Order:	200/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

28V 1.8A Smart NIMH Battery Charger

Voltage	28v
Current	1.8a
Connector	Customzied

Input:
Rating input: 100 to 240V AC, 50/60Hz
Input range: 90 to 264V AC
Rating input current: 0.8A (Input: 220V Output: full load)
Maximum input power: 70W

Output:
Rating output voltage: 28V DC
Output voltage range: 20 to 40V DC
Suit with battery: 24V, 3 to 14Ah, NI-MN (MCU auto detective)
Charge current: 1.8A
Trickle current: less than 0.15A
Inner timer: 8 hours (default), (1 to 10 hours)
Maximum output power: 60W
Hold-on time NC (Input: 220V AC Output: full load)
Ripple current: 100mA (Input: 220V AC Output: full load)
Main charge end condition: greater than 5mV/cell
Vmax: ≥1.6V/cell
Timer out(for Ni-Cd, Vmax is 1.8V/cell)

LED indication
Red: charging
Green: finished
Flashing: errors (error means: reverse polarity, battery pack short-circuit or connector short)
Output short-circuit and output reverse protection
Efficiency: 80% (at maximum load)

Environment:
Operate temperature: -10 to +40 degrees Celsius (full load and natural convection)
Operate humidity: less than +90% RH (relative humidity and non-condensing)
Storage temperature: -40 to +70 degrees Celsius
Storage humidity: 0 to +95% (relative humidity and non-condensing)
Cooling: natural convection
Vibration: 5mm/50Hz/600s (non-operating condition)
Impact resistance: 1m drop set, ≥3 times (non-operating condition)

Mechanical:
Weight: 550g
Size: 129 x 91 x 68mm (casing only)
AC/DC connector: defined when order

Safety:
Maximum temperature rise: less than 40 degrees on casing (at any line and maximum load)
MTBF: 30,000 hours
ESD: 8.0kV
I/P to O/P: 3,000 (one minute) (for final unit cut-off current of 10mA)

Prod Model:	QW280-018-N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Desktop Type:	Yes
Delivery Date:	15days
Warranty:	One Year
Type:	Ni-MH Battery
Charger Type:	Electric Charger
Nominal Voltage:	28V
