2A Schottky Barrier Rectifier Diode Sb220 Sr220 Sb2200 Sr2200 Do-15 Package
| Price: |
US $ 0.01-0.035/Piece |
| Min Order: |
10000/Piece |
| Pay Type: |
L/C,T/T |

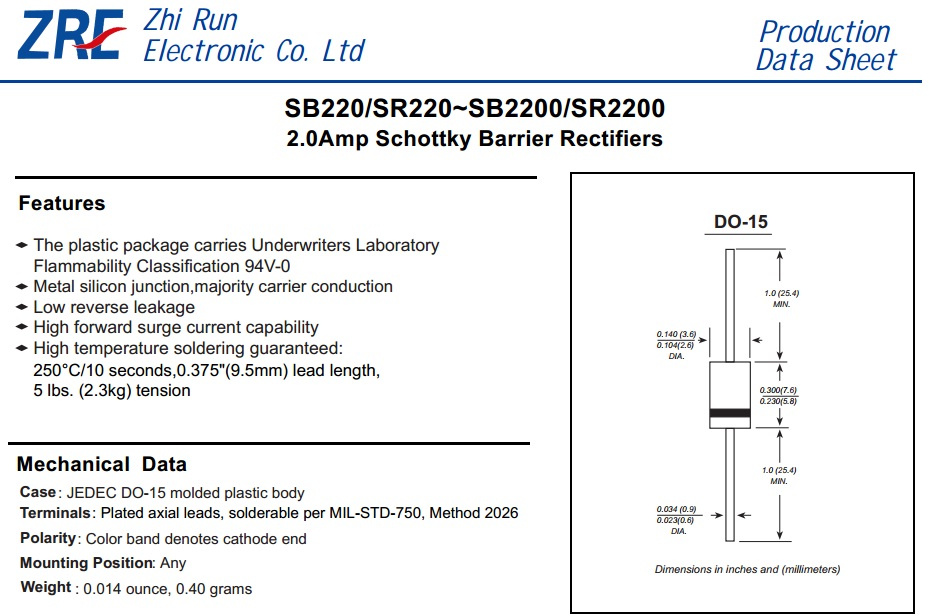

Schottky Barrier Rectifier Diode
ITEM:SB220/SR220~SB2200/SR2200
VRRM:20V-200V
IF:2.0A

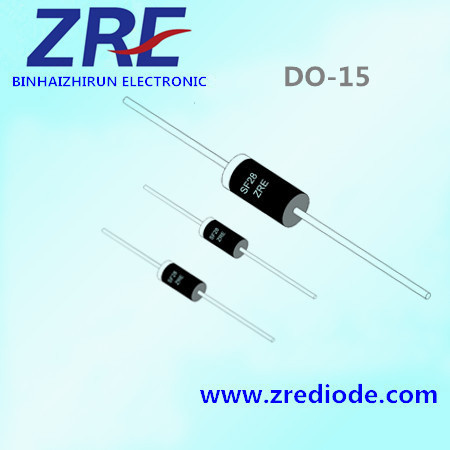

Package:DO- 15
We have other package for your choice:SMB,TO-220AC,SMA,SMC KBJ GBU
OUR BRAND CUSTOMERS
Our Services
Why do you choose us?
(1) High quatliy.
(2) Competitre price.
(3) Quick leadtime.
(4) Perfect service.
FAQ
Q1:About Package
(1) For through hole diode:Ammo Box // Bulk Packing // Tape Reel Packing
(2) For SMD diode:Tape Reel packing
Q2:Relate To (FREE SAMPLE)
We can provide customers samples for free, the maximum sample quantity is 50 pcs. Customers only pay for the freight cost.
Bulk Packing:
| Package | Inner Size (mm) | Box (EA) | Carton Size (mm) | Carton
(EA) | Approx. Gross Weight (Kg) |
|
| R-1 | 198*85*21 | 1,000 | 455*225*250 | 50,000 | 11.8 |
| A-405 | 198*85*21 | 1,000 | 455*225*250 | 50,000 | 12.9 |
| DO-41 | 198*85*21 | 1,000 | 455*225*250 | 50,000 | 14.9 |
| DO-15 | 198*85*21 | 500 | 455*225*250 | 25,000 | 10 |
| DO-27 | 198*85*21 | 250 | 455*225*250 | 12,500 | 11.8 |
| DO-27 | 307*75*40 | 500 | 325*325*290 | 12,000 | 11.7 |
| R-6 | 198*85*21 | 100 | 455*225*250 | 5,000 | 11 |
| R-6 | 307*75*40 | 200 | 325*325*290 | 4,800 | 10.7 |
Ammunition Packing:
| Package | Ammo (pcs) | Component Pinth (mm) | Tape Space (mm) | Box Size (mm) | Carton Size (mm) | Carton (EA) | Approx. Gross Weight (Kg) |
|
| R-1 | 5,000 | 5 | 52 | 255*150*75 | 420*276*312 | 50,000 | 11.5 |
| A-405 | 5,000 | 5 | 52 | 255*150*75 | 420*276*312 | 50,000 | 12.5 |
| DO-41 | 5,000 | 5 | 52 | 255*150*75 | 420*276*312 | 50,000 | 15.1 |
| DO-15 | 3,000 | 5 | 52 | 255*150*75 | 420*276*312 | 30,000 | 11.5 |
| DO-27 | 1,250 | 10 | 52 | 255*150*75 | 420*276*312 | 12,500 | 15.4 |
| R-6 | 500 | 10 | 52 | 255*150*75 | 420*276*312 | 5,000 | 10.5 |

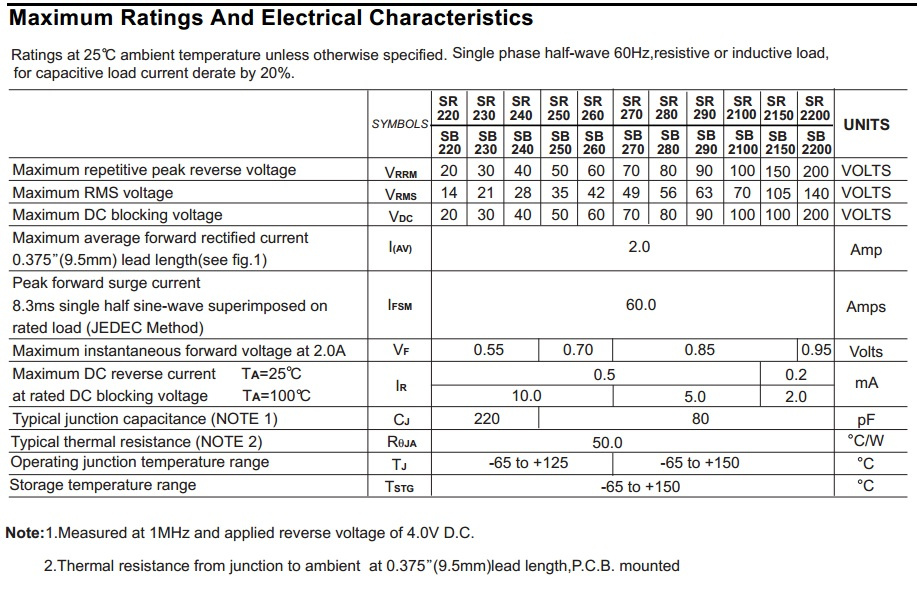

| Prod Model: |
SB220 SB230 SB240 SB260 SB2100 SB2150 SB2200 |
| Package: |
Do-15 |
| Repetitive Peak Reverse Voltage: |
Vrrm:20V~200V |
| Average Forward Rectified Current: |
I(AV):2.0A |
| Surge(Non-Repetitive)Forward Current: |
Ifsm:60A |
| Peak Forward Voltage: |
Vf:0.55V-0.95V |
| Peak Reverse Current: |
IR:0.2mA |
| Delivery Detail: |
3-15 Days |
| Packaging Details: |
Do-15:500PCS/Box,25kpcs/Carton |
Binhai for wetting electronics Co., Ltd is by Shanghai electronic equipment limited company invested semiconductor factory. Shanghai embellish electronic was founded in 2003, and in 2008 set up the binhai embellish electronic governance. Factory covers an area of 35 mu, comprehensive office building has a modern plant 4 and 1, a total construction area of 12000 square meters, is engaged in the diode class electronic products research and development, production, sales as one of professional high-tech enterprises. We have a patent for invention, 9 utility model patents, and has passed the national recognition of hi-tech enterprises.
Factory existing staff 500 people, including professional and technical personnel more than 100 people, about 20% of total employees. Company's main products are series of transient suppression diodes, rectifier diodes, fast recovery series diode, schottky diode series, series of high-voltage diode, switch series diodes, zener diodes, bridge pile, particle, semiconductor power diode, semiconductor diode power thyristor, special for auto rectifier diode, and all kinds of die cutting products, special viscose products, all kinds of adhesive tape, all kinds of printing products such as semiconductor devices, annual production capacity of 1.5 billion.
Company is committed to establish good market image, and more than 80% of the products to independent brand " ZRE" Sales, with the most advanced equipment, using the ERP system management, the factory passed the ISO9001 quality certification, ISO14001 environmental management system certification, all products through the SGS testing, in compliance with RoHS and REACH regulation 1907/2010 / EC 48 standard. With the continuous improvement of product quality and professional after-sale technical support to win the trust of customers for the company brand. The company's products are widely used in PC POWER, green lighting, set-top boxes, digital products, automotive electronic systems, industrial control, communications equipment and other fields, customers in domestic and international famous manufacturer. With the expansion of the market, in shenzhen, China, dongguan, guangzhou, xiamen, wuxi respectively set up offices.
New things, we will be " Realistic refinement" Concept as a quality environment system policy, in good faith to win credibility, molded products by character, based on the market by quality, after years of development, has been in the market's recognition and praise, insist on continuous technological innovation continuously create value for our customers. In the future, put to embellish electronic Co., Ltd will continue to be committed to the development of semiconductor industry electronic market, meet the challenges of the global electronics field more hasten is changing.
