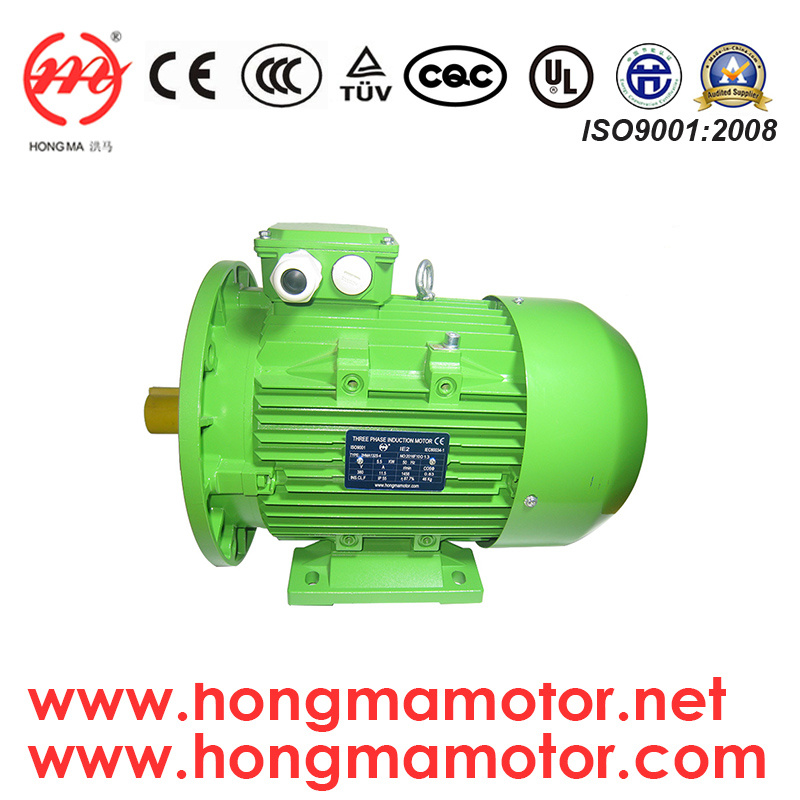

2HMI Series Motor/Ie2 (EFF1) High Efficiency Electric Motor with 4pole-30kw
| Price: |
US $ 418/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
2HMI-IE2(EFF1) Series Cast Iron Housing High Efficiency Electric Motor 2HMI-IE2(EFF1) Series Three Phase High Efficiency Electric Motor is the basic series of general-purpose motor with low voltage upgraded of IE1 series motor. 2HMI-IE2(EFF1) Series Motors are designed of high efficiency, energy saving, high quality performance, small vibration, low noise, long life, high reliability, easy maintenance and large start torque, etc. The mounting dimension and power totally conform to IEC standard. 2HMI-IE2(EFF1) Series Cast Iron Housing MotorCharacteristics and advantages:Efficiency Class:IE2Frame Size: H80-355Poles: 2, 4,6polesRated Power: 0.75KW-315KWRated Voltage: 220/380V,380/660V,230/400V,400V/690VFrequency: 50HZ,60HZProtection Class: IP44,IP54,IP55, IP56Insulation Class: B, F, HMounting Type:B3,B5,B35multi and pad mountingAmbient Temperature: -20~+40 °CAltitude: ≤1000M | 2HMI-IE2 Series Technical Data |
| Type | (kW) | η(%) | Cosφ | r/min | Rated current(A) | Ts/Tn | | Is/In | Weight
(C.I) |
| 380 | 400 | 415 |
| 2HMI-IE2 | 801-2 | 0.75 | 77.4 | 0.83 | 2875 | 1.8 | 1.7 | 1.6 | 2.5 | 3 | 5.3 | 18 |
| 2HMI-IE2 | 802-2 | 1.1 | 79.6 | 0.84 | 2888 | 2.5 | 2.4 | 2.3 | 3.2 | 3.8 | 7 | 19 |
| 2HMI-IE2 | 90S-2 | 1.5 | 81.3 | 0.84 | 2887 | 3.3 | 3.2 | 3.1 | 2.7 | 3.5 | 7.1 | 25 |
| 2HMI-IE2 | 90L-2 | 2.2 | 83.2 | 0.85 | 2889 | 4.7 | 4.5 | 4.3 | 2.4 | 3 | 6.9 | 28 |
| 2HMI-IE2 | 100L-2 | 3 | 84.6 | 0.87 | 2890 | 6.2 | 5.9 | 5.7 | 3.2 | 4 | 8 | 34 |
| 2HMI-IE2 | 112M-2 | 4 | 85.8 | 0.88 | 2901 | 8.0 | 7.6 | 7.4 | 2.5 | 3 | 7.5 | 45 |
| 2HMI-IE2 | 132S1-2 | 5.5 | 87 | 0.88 | 2915 | 10.9 | 10.4 | 10.0 | 2.7 | 3.5 | 7.5 | 67 |
| 2HMI-IE2 | 132S2-2 | 7.5 | 88.1 | 0.88 | 2915 | 14.7 | 14.0 | 13.5 | 2.4 | 3.3 | 7.5 | 73 |
| 2HMI-IE2 | 160M1-2 | 11 | 89.4 | 0.89 | 2930 | 21.0 | 20.0 | 19.2 | 2.2 | 2.9 | 7.6 | 123 |
| 2HMI-IE2 | 160M2-2 | 15 | 90.3 | 0.89 | 2940 | 28.4 | 26.9 | 26.0 | 2.3 | 3 | 7.6 | 127 |
| 2HMI-IE2 | 160L-2 | 18.5 | 90.9 | 0.90 | 2940 | 34.4 | 32.6 | 31.5 | 2.3 | 3.1 | 7.4 | 158 |
| 2HMI-IE2 | 180M-2 | 22 | 91.3 | 0.90 | 2945 | 40.7 | 38.6 | 37.2 | 2.8 | 3 | 8.2 | 190 |
| 2HMI-IE2 | 200L1-2 | 30 | 92 | 0.90 | 2950 | 55.1 | 52.3 | 50.4 | 2.6 | 3 | 7.8 | 256 |
| 2HMI-IE2 | 200L2-2 | 37 | 92.5 | 0.90 | 2955 | 67.5 | 64.2 | 61.8 | 2.6 | 3 | 7.7 | 265 |
| 2HMI-IE2 | 225M-2 | 45 | 92.9 | 0.90 | 2975 | 81.8 | 77.7 | 74.9 | 2.4 | 2.6 | 7.5 | 332 |
| 2HMI-IE2 | 250M-2 | 55 | 93.2 | 0.90 | 2975 | 99.6 | 94.6 | 91.2 | 2.3 | 2.8 | 7.1 | 423 |
| 2HMI-IE2 | 280S-2 | 75 | 93.8 | 0.90 | 2985 | 135.0 | 128.2 | 123.6 | 2.5 | 2.8 | 7.4 | 592 |
| 2HMI-IE2 | 280M-2 | 90 | 94.1 | 0.91 | 2972 | 159.7 | 151.7 | 146.2 | 2.8 | 2.8 | 7.6 | 690 |
| 2HMI-IE2 | 315S-2 | 110 | 94.3 | 0.91 | 2982 | 194.8 | 185.0 | 178.3 | 2.4 | 2.9 | 6.9 | 1110 |
| 2HMI-IE2 | 315M-2 | 132 | 94.6 | 0.91 | 2982 | 233.0 | 221.3 | 213.3 | 2.6 | 2.9 | 7.1 | 1222 |
| 2HMI-IE2 | 315L1-2 | 160 | 94.8 | 0.92 | 2979 | 278.7 | 264.8 | 255.2 | 2.5 | 2.8 | 7.1 | 1230 |
| 2HMI-IE2 | 315L2-2 | 200 | 95 | 0.92 | 2979 | 347.7 | 330.3 | 318.4 | 2.5 | 2.8 | 6.9 | 1270 |
| 2HMI-IE2 | 355M-2 | 250 | 95.0 | 0.92 | 2979 | 434.6 | 412.9 | 398.0 | 2.5 | 2.8 | 7 | 1800 |
| 2HMI-IE2 | 355L-2 | 315 | 95.0 | 0.92 | 2979 | 547.6 | 520.2 | 501.4 | 2.5 | 2.9 | 6.9 | 1900 |
| 2HMI-IE2 | 802-4 | 0.75 | 79.6 | 0.76 | 1428 | 1.9 | 1.8 | 1.7 | 2.4 | 2.9 | 5 | 18 |
| 2HMI-IE2 | 90S-4 | 1.1 | 81.4 | 0.77 | 1431 | 2.7 | 2.5 | 2.4 | 3 | 3.5 | 6 | 25 |
| 2HMI-IE2 | 90L-4 | 1.5 | 82.8 | 0.79 | 1438 | 3.5 | 3.3 | 3.2 | 3.2 | 3.8 | 6.8 | 31 |
| 2HMI-IE2 | 100L1-4 | 2.2 | 84.3 | 0.81 | 1441 | 4.9 | 4.7 | 4.5 | 3 | 3.5 | 7 | 37 |
| 2HMI-IE2 | 100L2-4 | 3 | 85.5 | 0.82 | 1429 | 6.5 | 6.2 | 6.0 | 2.6 | 3.3 | 7 | 40 |
| 2HMI-IE2 | 112M-4 | 4 | 86.6 | 0.82 | 1444 | 8.6 | 8.1 | 7.8 | 3.5 | 4 | 7.5 | 46 |
| 2HMI-IE2 | 132S-4 | 5.5 | 87.7 | 0.83 | 1456 | 11.5 | 10.9 | 10.5 | 2.2 | 2.8 | 6.4 | 73 |
| 2HMI-IE2 | 132M-4 | 7.5 | 88.7 | 0.84 | 1455 | 15.3 | 14.5 | 14.0 | 2.4 | 3 | 7 | 88 |
| 2HMI-IE2 | 160M-4 | 11 | 89.8 | 0.84 | 1470 | 22.2 | 21.0 | 20.3 | 2.5 | 2.9 | 6.9 | 134 |
| 2HMI-IE2 | 160L-4 | 15 | 90.6 | 0.85 | 1470 | 29.6 | 28.1 | 27.1 | 2.5 | 3 | 7.5 | 153 |
| 2HMI-IE2 | 180M-4 | 18.5 | 91.2 | 0.86 | 1475 | 35.8 | 34.0 | 32.8 | 2.6 | 3.1 | 7.8 | 194 |
| 2HMI-IE2 | 180L-4 | 22 | 91.6 | 0.86 | 1475 | 42.4 | 40.3 | 38.9 | 2.6 | 3.1 | 7.5 | 198 |
| 2HMI-IE2 | 200L-4 | 30 | 92.3 | 0.86 | 1480 | 57.4 | 54.6 | 52.6 | 2.4 | 2.9 | 7.1 | 293 |
| 2HMI-IE2 | 225S-4 | 37 | 92.7 | 0.87 | 1485 | 69.7 | 66.2 | 63.8 | 2.5 | 2.7 | 7.5 | 298 |
| 2HMI-IE2 | 225M-4 | 45 | 93.1 | 0.87 | 1485 | 84.4 | 80.2 | 77.3 | 2.5 | 2.8 | 7.6 | 335 |
| 2HMI-IE2 | 250M-4 | 55 | 93.5 | 0.87 | 1480 | 102.7 | 97.6 | 94.1 | 2.6 | 2.7 | 7.3 | 462 |
| 2HMI-IE2 | 280S-4 | 75 | 94 | 0.87 | 1485 | 139.3 | 132.4 | 127.6 | 2.7 | 2.7 | 7.6 | 582 |
| 2HMI-IE2 | 280M-4 | 90 | 94.2 | 0.87 | 1489 | 166.9 | 158.5 | 152.8 | 2.7 | 2.7 | 7.5 | 717 |
| 2HMI-IE2 | 315S-4 | 110 | 94.5 | 0.88 | 1492 | 201.0 | 190.9 | 184.0 | 2.7 | 2.9 | 7.1 | 1128 |
| 2HMI-IE2 | 315M-4 | 132 | 94.7 | 0.88 | 1486 | 240.7 | 228.6 | 220.4 | 2.7 | 2.9 | 7.3 | 1201 |
| 2HMI-IE2 | 315L1-4 | 160 | 94.9 | 0.89 | 1486 | 287.8 | 273.4 | 263.6 | 3 | 3 | 7.4 | 1210 |
| 2HMI-IE2 | 315L2-4 | 200 | 95.1 | 0.89 | 1487 | 359.0 | 341.1 | 328.7 | 3 | 3 | 7.6 | 1368 |
| 2HMI-IE2 | 355M-4 | 250 | 95.1 | 0.90 | 1485 | 443.8 | 421.6 | 406.4 | 2.8 | 2.9 | 7.5 | 1740 |
| 2HMI-IE2 | 355L-4 | 315 | 95.1 | 0.90 | 1490 | 559.2 | 531.2 | 512.0 | 2.6 | 2.8 | 7.4 | 1800 |
| 2HMI-IE2 Series Tech Data |
| Type | (kW) | η(%) | Cosφ | r/min | Rated current(A) | Ts/Tn | | Is/In | Weight
(C.I) |
| 380 | 400 | 415 |
| 2HMI-IE2 | 90S-6 | 0.75 | 75.9 | 0.72 | 944 | 3.4 | 2.0 | 1.9 | 2.2 | 2.4 | 4.5 | 24 |
| 2HMI-IE2 | 90L-6 | 1.1 | 78.1 | 0.73 | 928 | 4.7 | 2.8 | 2.7 | 2.4 | 2.6 | 4.5 | 29 |
| 2HMI-IE2 | 100L-6 | 1.5 | 79.8 | 0.75 | 939 | 6.2 | 3.6 | 3.5 | 1.8 | 2.2 | 4.2 | 33 |
| 2HMI-IE2 | 112M-6 | 2.2 | 81.8 | 0.76 | 936 | 8.7 | 5.1 | 4.9 | 2.3 | 2.8 | 4.5 | 45 |
| 2HMI-IE2 | 132S-6 | 3 | 83.3 | 0.76 | 960 | 11.7 | 6.8 | 6.6 | 1.8 | 2.4 | 4.5 | 63 |
| 2HMI-IE2 | 132M1-6 | 4 | 84.6 | 0.76 | 957 | 15.3 | 9.0 | 8.7 | 2.3 | 2.7 | 5 | 75 |
| 2HMI-IE2 | 132M2-6 | 5.5 | 86 | 0.77 | 962 | 20.5 | 12.0 | 11.6 | 1.9 | 2.8 | 5.5 | 86 |
| 2HMI-IE2 | 160M-6 | 7.5 | 87.2 | 0.77 | 975 | 27.5 | 16.1 | 15.5 | 2 | 3 | 6.5 | 128 |
| 2HMI-IE2 | 160L-6 | 11 | 88.7 | 0.78 | 975 | 39.3 | 22.9 | 22.1 | 2.4 | 3.3 | 7.5 | 159 |
| 2HMI-IE2 | 180L-6 | 15 | 89.7 | 0.81 | 975 | 51.1 | 29.8 | 28.7 | 2 | 2.7 | 6.4 | 209 |
| 2HMI-IE2 | 200L1-6 | 18.5 | 90.4 | 0.81 | 985 | 62.7 | 36.5 | 35.1 | 2.3 | 3 | 7 | 222 |
| 2HMI-IE2 | 200L2-6 | 22 | 90.9 | 0.83 | 980 | 72.3 | 42.1 | 40.6 | 2.3 | 2.8 | 7 | 267 |
| 2HMI-IE2 | 225M-6 | 30 | 91.7 | 0.84 | 985 | 96.9 | 56.2 | 54.2 | 2.2 | 2.7 | 6.5 | 282 |
| 2HMI-IE2 | 250M-6 | 37 | 92.2 | 0.86 | 985 | 116.1 | 67.4 | 64.9 | 2.5 | 2.7 | 6.9 | 443 |
| 2HMI-IE2 | 280S-6 | 45 | 92.7 | 0.86 | 990 | 140.5 | 81.5 | 78.5 | 2.2 | 2.4 | 7 | 566 |
| 2HMI-IE2 | 280M-6 | 55 | 93.1 | 0.86 | 994 | 171.2 | 99.2 | 95.6 | 2.4 | 2.5 | 7.1 | 631 |
| 2HMI-IE2 | 315S-6 | 75 | 93.7 | 0.86 | 992 | 232.4 | 134.3 | 129.5 | 2.8 | 3 | 7.3 | 1140 |
| 2HMI-IE2 | 315M-6 | 90 | 94 | 0.86 | 991 | 278.0 | 160.7 | 154.9 | 2.7 | 2.9 | 7.1 | 1207 |
| 2HMI-IE2 | 315L1-6 | 110 | 94.3 | 0.86 | 991 | 338.0 | 195.8 | 188.7 | 2.9 | 2.9 | 7.4 | 1234 |
| 2HMI-IE2 | 315L2-6 | 132 | 94.6 | 0.87 | 990 | 400.9 | 231.5 | 223.1 | 3 | 3.1 | 7.6 | 1320 |
| 2HMI-IE2 | 355M1-6 | 160 | 94.8 | 0.88 | 990 | 480.4 | 276.8 | 266.8 | 3.1 | 3.1 | 7.6 | 1550 |
| 2HMI-IE2 | 355M3-6 | 200 | 95 | 0.88 | 991 | 600.5 | 345.3 | 332.8 | 3 | 3 | 7.8 | 1700 |
| 2HMI-IE2 | 355L2-6 | 250 | 95.0 | 0.88 | 992 | 750.7 | 431.6 | 416.0 | 3.1 | 3 | 7.7 | 1900 |

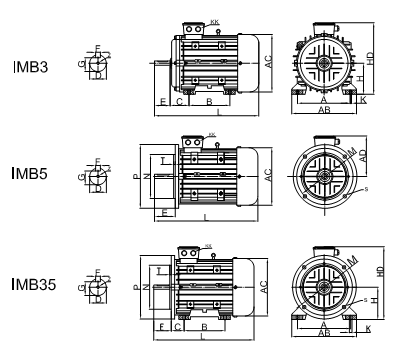

2HMI-IE2 Series Mounting Dimensions-B3,B5,B35
| Prod Model: |
2HMI200L-4-30KW |
| Efficiency Class: |
Eff1 |
| Frame Size: |
H200L |
| Rated Power: |
30kw |
| Protection Class: |
IP44, IP54, IP55, IP56 |
| Frequency: |
50Hz, 60Hz |
| Rated Voltage: |
220/380V, 380/660V, 230/400 |
| Poles: |
4poles |
| Application: |
Power Tools |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
Y, Y2 Series Three-Phase |
| Rotor Structure: |
Winding Type |
| Casing Protection: |
Protection Type |
| Brand: |
Hongma |
