This form is of my company's process capacity for your reference, for more messages, pls contact with us freely!
Item | Specification |
| Material | FR-4 / Hi-Tg FR-4 / Lead free Materials(RoHS Compliant)/CEM-3/CEM-1/Aluminium |
| Layer | single layer,double layer,multi-layer(4-10) |
| Board Thickness | 0.3mm-3.0mm,+/-0.1mm(tolerance) |
| Copper Thickness | 1/2OZ-3OZ (35um to 105um),+/-8um(tolerance),purity 99.5% |
| Impedance Control | ±10% |
| Bow and Twist MAX. | 0.75%(SMT) |
| Anti-strip | 0.88N/mm |
| Resistance | ≤20Ω |
| Reactance | 500V |
|
| Min. Value |
|
| Min. Trace/Space Width | 6 mil,+/-0.15mm(tolerance) |
| SMD Pitch | 10 mil |
| BGA Pitch | 20 mil |
| Min Pad Space | 4mil(SMT) |
| Plating Copper Thickness | 15um |
|
| Hole |
|
| Hole Size | 0.25mm--6.2mm |
| Hole Position Tolerance | ±0.1mm |
| PTH/NPTH Tolerance | ±0.15mm(dia.=0.4-1.4mm) |
| Pad Tolerance | ±0.1mm(dia.≥0.6mm) |
| Pad to hole/to pad Tolerance | ±0.05mm/±0.2mm |
|
| Solder Mask |
|
| Pad no Open | soldermask must cover all on both side, reject tin on pad |
| Pad Open | reject soldermask inside the hole on both side |
| Solder Mask Thickness | 0.7mil,raised H≤0.05 |
| Colour | green,blue,red,yellow,black,white(LPI/MATT.,UL 94 V0 approved) |
|
| Surface Finish |
|
| HAL | tin height≤0.05mm |
| ENIG | Nickel 3-7um,gold:0.5-0.7um |
| OSP/flash gold | 0.2-0.5um |
| Pealable mask | cover all on pad,thickness≥0.20mm |
| Carbon Ink | cover all on trace,Value≤30Ω |
|
| Outline |
|
| Outline Tolerance | ±0.2mm |
| Beveling | 30°,45° |
| V-cut position/depth | ±0.2mm(length≤100mm)/±0.2mm |
| Punch | ±0.1mm |
|
| E-testing pass percent | 97% pass for the first time,+/-2%(tolerance) |
|
| Certificate | SGS,ISO,ROHS,UL, |
Features * Low water absorption rate
* Hard to be deformed
* High mechanical strength
* Good electric performance wether under the moist or dry environment, Flame retardant grade could reach 94-V0
* High temperature resistant,high dielectric performance and mechanical processing performance.
PCB manufacture and PCB assembly * PCB board file with parts list provided by customer
* PCB board made, circuit board parts purchased by us
* PCB board with parts assembled
* Electronic testing circuit board or PCB

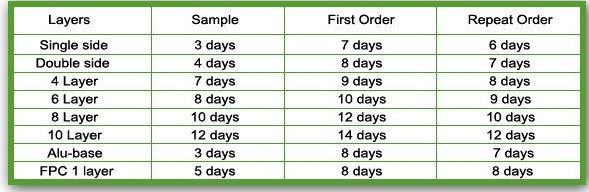

* Fast delivery, anti-static package
* RoHS Directive-compliant, lead-free
Testing procedures * Visual Inspection
* Flying probe
* Impedance control
* Solder-ability detection
* Digital metallograghic microscope
*AOI (Automated Optical Inspection)
FAQ:A. For PCB order, please provide Gerber file or *.pcb file. Any details are also welcomed if no Gerber file.
B. Large PCB quantity order, quotation will be based on SQM.
C. For PCBA order, please provide the Gerber file, *.pcb file and BOM List.
D. Reverse engineering and PCB clone service can be supplied with your printed circuit board supplied.
E. Any questions, welcome to contact our sales person Lucy by sending inquiry. Your satisfaction is our pleasure.
Payment and Shippin term:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal
DHL,Fedex,UPS,EMS,ect
Found PCB, established in 2005, Shenzhen Found Printed Circuit Board Co., Ltd. is part of Found group. Found PCB dedicated to provide one-stop service, to meet highest technology, quality and quick turn over challenges with lowest cost.

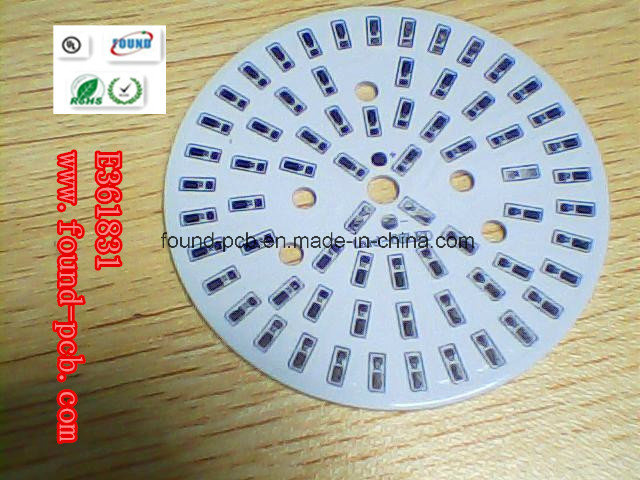

Shenzhen Found Circuit Board Co., Ltd supply all kinds of PCBs more than 10 years. Products including Rigid PCB (1-20 layers), flex PCB(1-4 layer), metal core PCB, Rigid-Flex PCB, especially in the metal core PCB, they use widly in the LED lighting.
A lot of comepays from Europe and North American buy from Found, cause we are the source, we can offer very good price, we think we can save a lot of your purchasing cost.
We also offer PCB solution. Such as Rigid-flex PCB, a lot of factories in China can not made this kind of the rigid-flex PCB. But Found is good at this...
With several year's rapid development, the production capability of our factory reachs 25, 000 square meters with over 500 employees and 180, 000 sq. M production area. Found PCB has been certified by International Quality System IS09001, ISO14001, TS16949 and UL (E361831).
We welcome the every opportunity to working for you. We have the good name in the PCB market.
