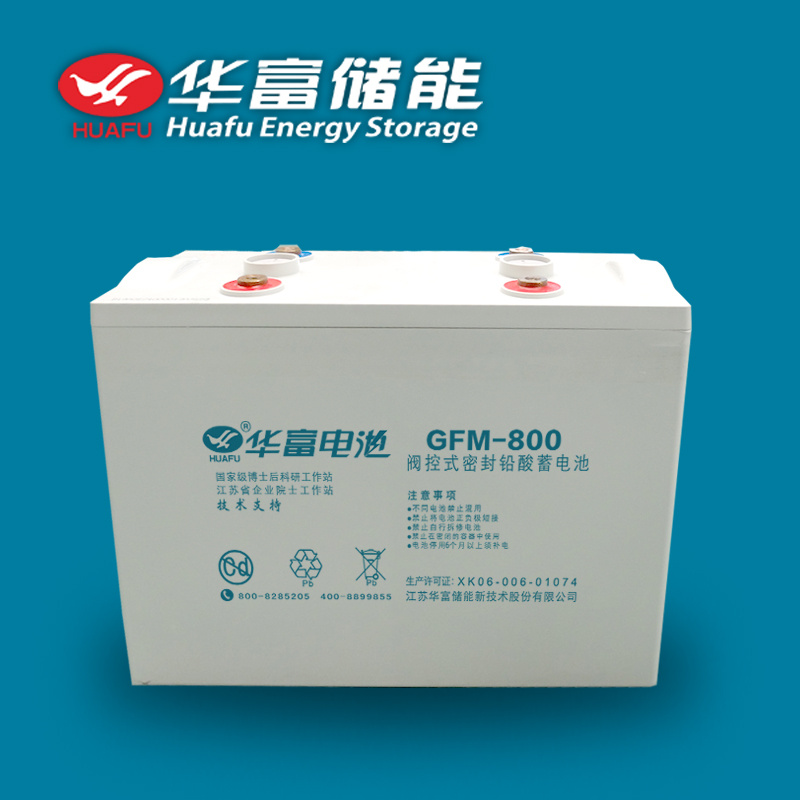

2V 800ah UPS Lead Acid Gel Battery
Price: |
US $ 1-4/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
10/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
GFMJ-800 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Italian Grey |
Size: |
83*171*330mm |
Weight: |
48.2kgs |
Maintenence Free: |
Yes, No Need to Add Water |
Terminal: |
Copper |
Type: |
Lead-Acid Batteries |
Usage: |
Lighting |
Nominal Voltage: |
2V |
Discharge Rate: |
High Discharge Rate |
Shape: |
Square Battery |
Rechargeable: |
Chargeable |
Product Description
Item No: GFMJ-800
Nominal Voltage: 2V
Nominal Capacity: 800AH
Net Size: 383*171*330(L*W*H)mm Total H: 342mm
Weight: 48.2KGS
Warranty: 4 years
Design life: 18 years
Maintenance free: YES
Standard: GB/T 19638.2-2005, YD/T 1360-2005
Application:
Communication
Equipment switch
Power generator
Emergency power supply
UPS.
Comprehensive performance:
1. Patents structure: Have "easy connection storage battery" patent structure, can buried underground to installation, to avoid pole corroded.
2. Excellent recovery performance: Use a special patented alloy and lead paste formula, have a strong capacity of recovery performance after deep discharge.
3. Strong charge acceptance: Used import low resistance materials and advanced technology, current become smaller at end of the charge and has a strong charge accept ability.
4. Wide temperature range: -30 degrees Celsius- 45 degrees Celsius
5. Long life: Using gel electrolyte, no acid layer and has long life.
6. Environment friendly: Not include Cadmium metal which is pollution to environment. With no leaking and ensured the battery's environmental protection and safety.
Model | 2V 800Ah |
Max.Discharge Current | 30I10A (3min) |
Self-Discharge(25°C) | <3%/month |
Warranty | 4 years |
Designed life | 8 years |
Using Temperature | Discharge: -25°C~50°C |
Charge: -20°C~45°C |
Storage: -30°C~40°C |
Recommended Using Temperature | 15°C~30°C |
Charge Voltage (25°C) | Float Charge: 13.5V-13.8V |
Average Charge: 14.4V-14.7V |
Max.Charge Current | ≤0.25C10 |
Charge Mode(25°C) | Float Charge:13.65±0.15V/Cell |
Temperature Compensation Coefficient :±18 mV/Cell°C |
Cycle Charge:14.7±0.3V/Cell |
Temperature Compensation Coefficient: ±30 mV/Cell°C |
Cover Material | ABS Engineering Plastic |
Cycle life | 105 % @ 40°C |
85 % @ 0°C |
60 % @ -20°C |
| 100%DOD 520 times |
DOD cycle | 50%DOD 1350 times |
| 30%DOD 2188 times |
