SPECIFICATION:COPPER WIRE CONDUCTOR| model( size) | Specification Description | Insulation Out Dia. | Jacket/sheath
Material Colour |
| (mm) |
| 0.35mm2 | 2CX20/0.15mm | O. D: 2.0X4.0 | PVC/Transparent or any |
| 0.5mm2 | 2CX28/0.15mm | O. D: 2.2X. 4.4 | PVC/Transparent or any |
| 0.75mm2 | 2CX42/0.15mm | O. D: 2.4X4.8 | PVC/Transparent or any |
| 1.0mm2 | 2CX57/0.15mm | O. D: 3.0X6.0 | PVC/Transparent or any |
| 1.5 mm2 | 2CX85/0.15mm | O. D: 3.6X7.2 | PVC/Transparent or any |
| 2.5mm2 | 2CX7X20/0.15mm | O. D: 4.2X8.4 | PVC/Transparent or any |
| 4.0 mm2 | 2CX7X32/0.15mm | O. D: 5.0X10.0 | PVC/Transparent or any |
| 6.0mm2 | 2CX7X48/0.15mm | O. D: 5.5X11.0 | PVC/Transparent or any |
CCA CONDUCTOR WIRE HOT IN MIDDLE EAST MARKET| model( size) | Specification Description | Insulation Out Dia. | Jacket/sheath
Material Colour |
| (mm) |
| 0.5mm2 | 2x20/0.18mm | O. D:2.5x5.0 | PVC/Transparent or any |
| 0.75mm2 | 2x30/0.18mm | O. D:2.8x5.6 | PVC/Transparent or any |
| 1.0mm2 | 2x32/0.20mm | O. D:3.2x6.4 | PVC/Transparent or any |
| 1.5 mm2 | 2x48/0.20mm | O. D:3.8x7.6 | PVC/Transparent or any |
| 2.0mm2 | 2x64/0.20mm | O. D:4.0x8.0 | PVC/Transparent or any |
| 2.5mm2 | 2x50/0.25mm | O. D:4.4x8.8 | PVC/Transparent or any |
CHARACTERISTIC:1) Different series of zips and twist wires
2) Product range: 10GA, 12GA, 14GA, 16GA, 18GA, 20GA and ultra classic strands
3) Conducot available:100% (Tinned)Bare copper wire,copper coated al,
4) PVC material available:simplex color pvc(Red,Black,Blue,White and so on),transparence and so on

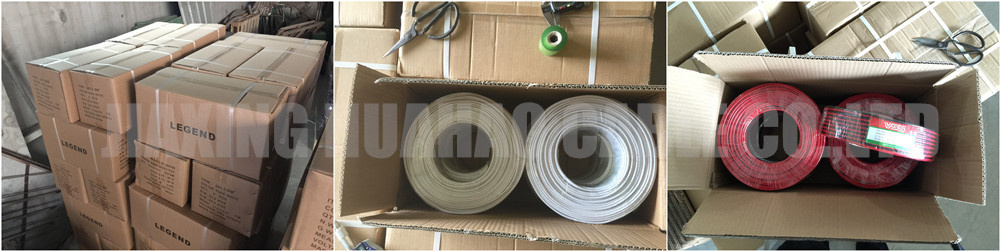

Packing:
a) Packing lengths: 100m/roll, 200m/roll, 305m/roll
b) Inner packing: wooden drum, plastic drum, paper drum
c) Outer packing: carton box, pull out box
d) Other packing available according to customer
Special cables can be made according to your requirement.Welcome to negotiate OEM with us!
Application:
These cables are used in connecting for audio appliances, home appliances, small electric tolls and instruments.
Construction: Stranded copper conductor, PVC insulated, twin parallel or twisted.
Voltage: 300/500V
COPANY INFORMATION:Jiaxing Huahao Cable Co., Ltd., is located in Haiyan Economic Developing Zone, Zhejiang Province. We are at the north of Hangzhou Bay Bridge, 100km away from Shanghai Pudong Airport, 50 minutes away from Hangzhou International Airport by car. The superior geographical surrounding and speedy transportation network provide us a great convenience for goods transportation at home and abroad. Since the establishment in 2010, we have been specialized in designing, developing, and producing all kinds of PVC cable materials, injection materials, environmental protection materials, such as welding cables, speaker cables, and audio cables. All products are subjected to the most advanced testing equipment by virtue of strong human resources, technical support and production strength. Welcome to visit our cable factory and we are expecting to cooperate with all kinds of cable importers, wholesaler &retail trader from all over the world as well as double-win with our partners and build long-time business relationship. Since the establishment, we have implemented the business philosophy"QUALITY FIRST, CUSTOMER FIRST, HONEST FIRST. "That is our presistent persuit to offer you excellent service and quality guarantee.FAQ:Q: Are you trading company or manufacturer ?
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
