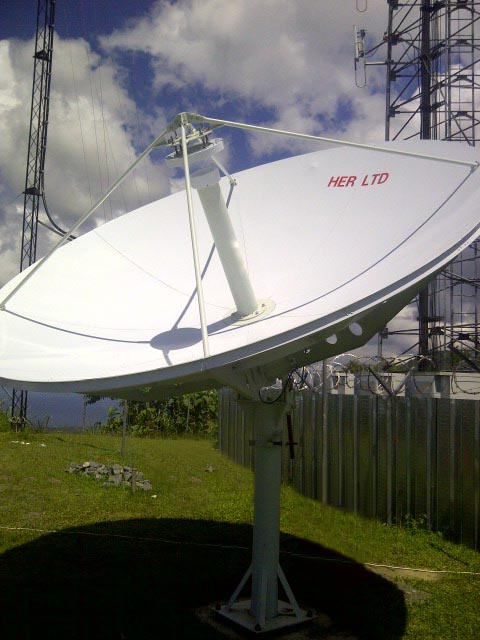

3.0m Vsat Rxtx Satellite Dish Antenna
| Price: |
US $ 10-100/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
3.0m VSAT Antenna
Features: Dual shape ring-focus designAluminum major reflector & sub reflector with high precisionHigh gain and excellent sidelobe performanceFactory feed system and king post pedestal assembled to reduce installation timeWell in anti-corrosionExcellent in stability Approvals or Compliance: ASIASATAPTCHINA SATCOMSINOSATINTELSATEUTELSAT Main parts:Feed hornOMT & FilterPanelsWeb plateHubKing post pedestalFoundation kit Options:Circular polarizationNon-penetrating mountAmplifier HolderLightning rodAnti-icing systemSite Installation, commissioning and network access supportAnti-salt treatment for steel structureCustomized available Specification of 3.0m VSAT Antenna| R.F SPECIFICATIONS | C-Band | Ku-Band |
| RECEIVE | TRANSMIT | RECEIVE | TRANSMIT |
| 1. Frequency(GHz) | 3.625-4.2 | 5.85-6.425 | 12.25-12.75 | 14-14.5 |
| | 3.4-4.2 ★ | 5.85-6.725 ★ | 10.95-12.75 ★ | 13.75-14.5 ★ |
| 2. Typical Gain(dBi) | 39.99 at 3.8GHz | 43.64 at 6.0GHz | 50.01 at 12.5GHz | 50.8 at 14.25GHz |
| 3. VSWR | 1.25:1 | 1.25:1 | 1.25:1 | 1.25:1 |
| 4. Beamwidth (-3dB) | 1.645° | 1.081° | 0.519° | 0.474° |
| 5. Antenna Noise Temperature(K) | 2Port Feed | | 2Port Feed | |
| 10°Elevation | 38K | | 43K | |
| 20°Elevation | 31K | | 38K | |
| 40°Elevation | 26K | | 34K | |
| 6. Typical G/T at 20°EL | 22.14dB/K(3.8GHz, 30K LNA) | 29.68dB/K(12.5GHz, 70K LNA) |
| 7. Power Handling Capability | | 5KW/Port | | 1KW/Port |
| 8. Feed Interface | CPR-229 | CPR-137 | WR-75 | WR-75 |
| 9. Feed Insertion Loss | 0.25dB | 0.2dB | 0.25dB | 0.25dB |
| 10. Tx to Rx Isolation | ≥85dB | ≥85dB |
| 11. Axial Ratio (dB) | 1.5dB | 1.0dB | | |
| 12. Cross Pol Isolation | | | | |
| On Axis | ≥35dB | ≥35dB |
| 13. Sidelobes | CCIR.580-6 | CCIR.580-6 |
| MECHANICAL SPECIFICATION | ENVIRONMENTAL SPECIFICATION |
| 1. Antenna Type | Ring-focus | 1. Wind Loading, Operational (Maintain Precision) | 60mph(97km/h) |
| 2. Drive Type | Manual | 2. Wind Loading, Operational (Decrease Precision) | 65mph(105km/h) |
| 3. AZ Travel | 0 to 360° | 3. Wind Loading, Survival (Fixed Heavenward) | 125mph(200km/h) |
| 4. EL Travel | 5° to 90° | 4. Ambient Temperature | -40°C to 60°C |
| 5. POL Travel | ±90° | 5. Rain | 100mm/h |
| 6. Reflector Material | Precision formed aluminum | 6. Relative Humidity | 0 to 100% |
| 7. Reflector Segments | 8 | 7. Solar Radiation | 360 BTU/h/ft2 (1000Kcal/h/m2) |
| 8. Mount Type | King post pedestal | 8. Ice | 25mm on all surface or 13mm on all surface with 130km/h wind gusts |
| 9. Surface Accuracy | 0.5mm(R.M.S) | 9. Shock and Vibration | As encountered during shipment by commercial air, sea or truck |
| Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice. |
| Prod Model: |
HXWT3.0m |
| Drive Type: |
Manual |
| Polarization: |
Linear/Circular |
| Size: |
3.0m |
| Color: |
White |
| Warranty: |
1 Year |
| Enterprise Nature: |
Manufacturer |
| Customized: |
Available |
| Certificate: |
ISO9001 |
| Market: |
Global |
| Logo: |
Huaxin/Customized |
| Usage: |
Communication Antenna |
| Material: |
Al |
| Usage Occasion: |
Fixed Earth Station Antenna |
| Operating Wavelength: |
C-Band, Ku-Band |
| Sturcture Form: |
King Post Pedestal |
