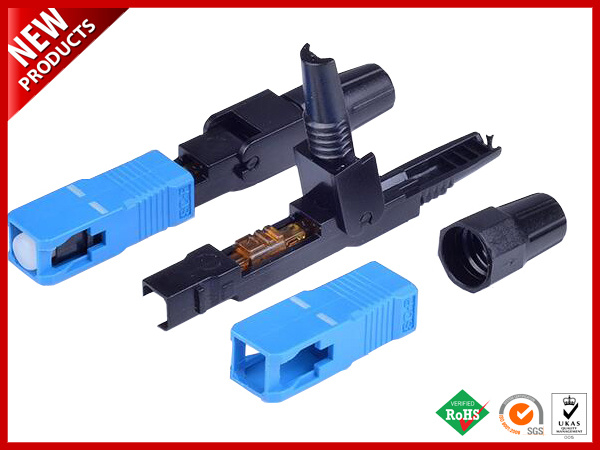

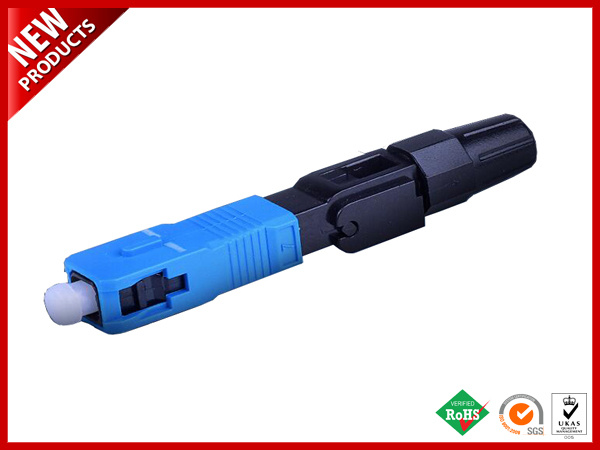

3.0mm SC Fiber Optic Pre-embedded Fast Connector
| Price: |
US $ 0.1-0.6/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
3.0mm SC Fiber Optic Pre-embedded Fast Connector
The SC/APC fast connector are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers. The Field Assembly Connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and with the expansion of FTTH, is already proving itself to be the connector of choice by incumbents, municipalities, utilities & alternative carriers. Our Field Assembly Optical Connector series are now available in SC, LC, or FC variants, catering for 250um to 900um, and 2.0mm, 3.0mm diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with SPC or APC ferrules.
Please kindly note that 0.9mm, 2.0mm and 3.0mm diameter are for the same usage. If 2.0mm or 3.0mm are needed, just remove the tail handle from 0.9mm fast connector.
√ Key Features & Applications
No epoxy and polishing required;
No expensive tools required;
Quick and easy fiber termination;
Precision mechanical alignment insures low insertion loss;
Superior optical performance;
Streamlined component design, convenient operation;
Pre-installed, on-site assembly without end face grinding and consideration;
Uses proven, molded v-groove technologies;
Allow optical continuity to be verified by use of visual fault locator (VFL);
Fiber optic communication system and telecommunication networks;
Fiber optic data transmission;
CATV;
Optical access.
√ Application
This is very useful for our demonstration sensors. Much quicker and easier than the epoxy and polish method is a really good website store where you can find everything you want at a very affordable price!
√ Spectication | Connector Type | SC | Polishing | APC |
| Ferrule | Ceramic | Fiber Mode | 9/125μm, Singlemode |
| Cable Diameters | 0.9/2.0/3.0mm | Dimension | 50mm |
| Insertion Loss | ≤0.35dB | Return Loss | ≥50dB |
| Tension Test | ≥100N | Operating Temperature | -40°C~+75°C |

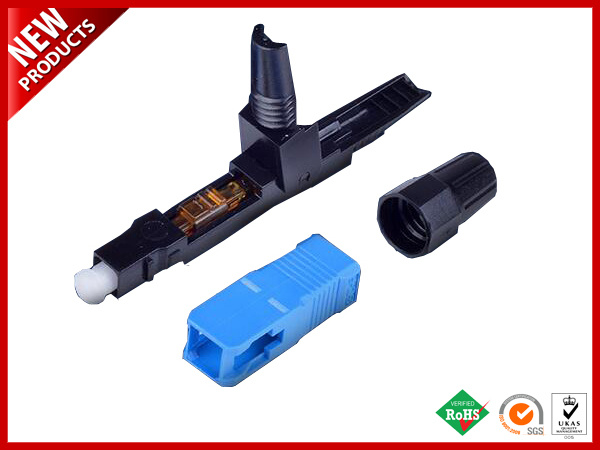

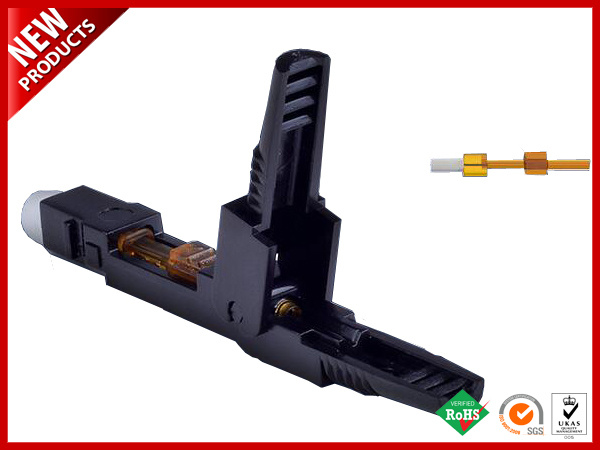

√ Structure Example
| Prod Model: |
008 |
| Housing: |
PC |
| Color: |
Green |
| Polishing: |
APC, UPC |
| Cable OD: |
3.0mm |
| Insertion Loss: |
0.35dB |
| Dimension: |
50mm |
| Fiber Mode: |
9 125um, Singlemode |
| Ferrule: |
Ceramic |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
| Light Source TYPE: |
Fiber |
| Connector Type: |
SC |
