3 Core 1.5mm Cable Price/1.5mm Stranded Wire Cable/1.5mm Single Core Cable

Name: 3 Core 1.5mm Cable Price/1.5mm Stranded Wire Cable/1.5mm Single Core Cable
Brand: all-electronics-online.com
SKU: 836862175
Availability: InStock
Rating: 5 (95 reviews)

Price:	US $ 0.8/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

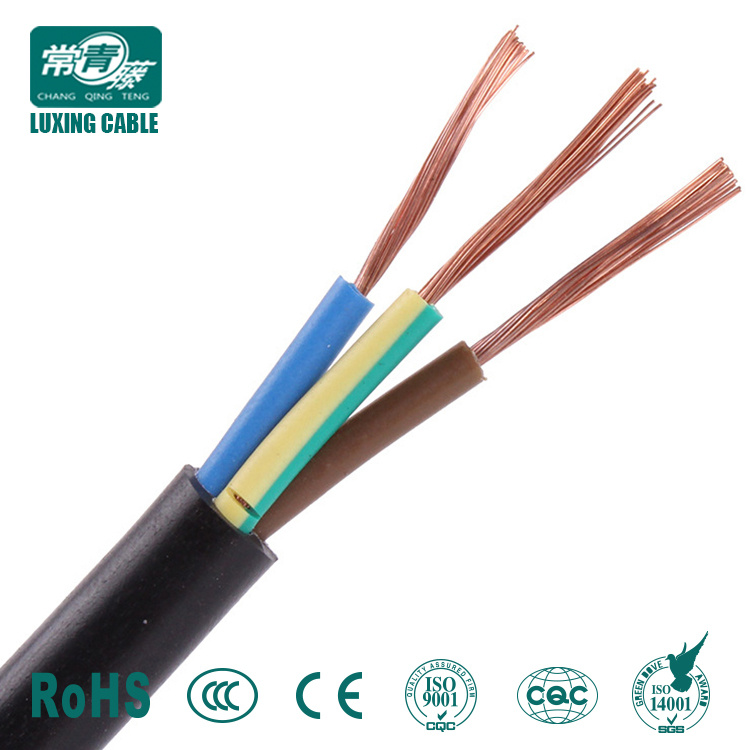

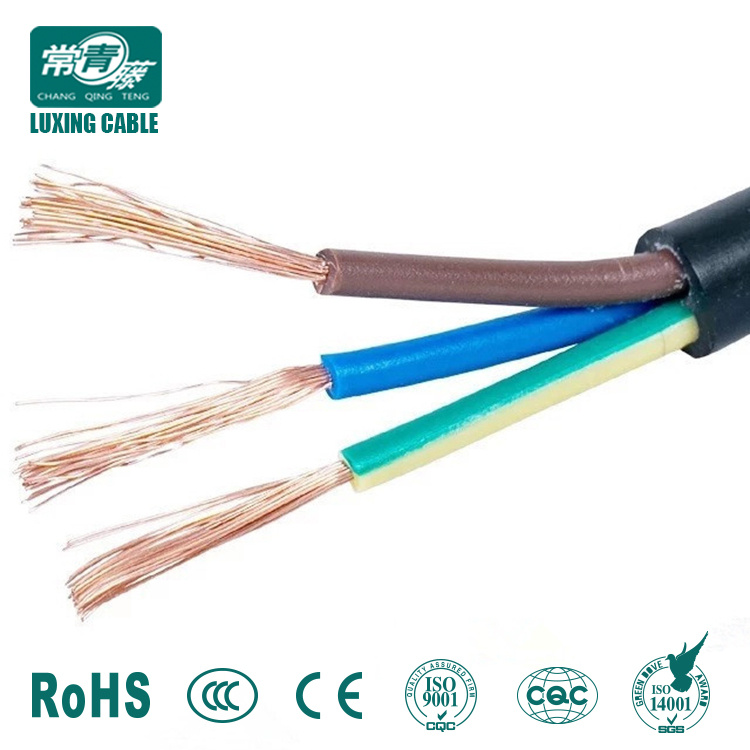

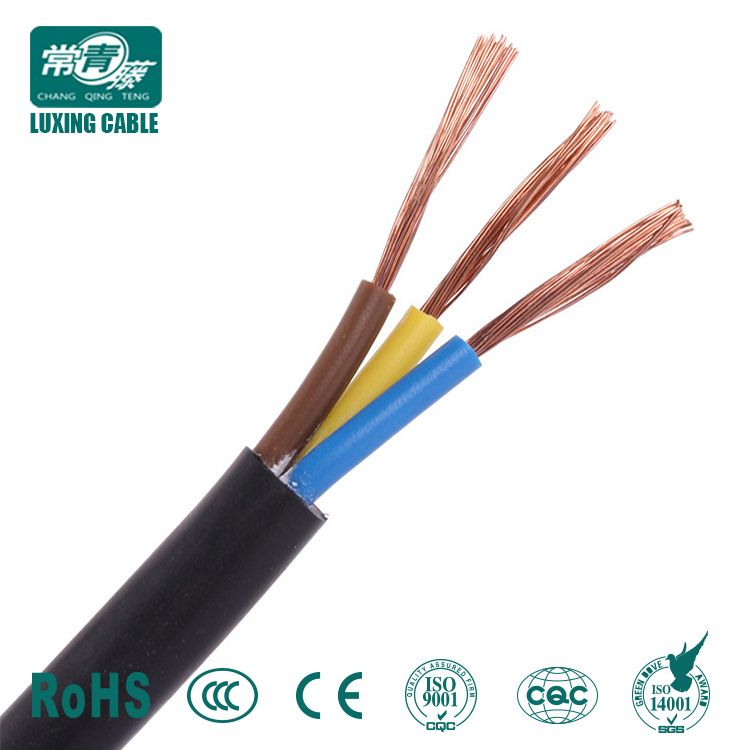

3 core 1.5mm cable price/1.5mm stranded wire cable/1.5mm single core cable

Product Description

3 core 1.5mm cable price/1.5mm stranded wire cable/1.5mm single core cable

Specification:

1,This cable is produced according to the standard BS6500,IEC60227:1993, VDE 0281

2,BS6360 Class 5,Solid or Stranded Bare Copper Conductor

3,BS7655 TI 1 PVC Insulation

4,PVC Sheathed, color available

Application:

The cable is suitable to be fixed wireing of power device,power lighting of home electric equipment and instrument, inner wiring of electric
enquipment Instrument, electron equipment, automatization device etc.

Suitable for use in conduit and for fixed, protected installation of Wiring Burglar Alarm, Public Address Systems,Intercoms, Telephone
Stations, Speakers, Instrumentation, Control and other Low Voltage Circuits that are Power Limited and anti-interference needed

Product Feature:

Model No.	Conductor		Insualtion		Jacket
	Cores × Nom. Area	Max. Resistance at 20°C	Thickness	Min. Resistance at 70°C	Thickness	Min. Dia.	Max.
	mm²	MΩ/km	mm	MΩ/km	mm	mm	mm
RVV2×0.75	2×0.75	26	0.6	0.011	0.8	6	7.6
RVV2×1.0	2×1.0	19.5	0.6	0.01	0.8	6.4	8
RVV2×1.5	2×1.5	13.3	0.7	0.01	0.8	7.4	9
RVV2×2.5	2×2.5	7.98	0.8	0.009	1	8.9	11
RVV3×0.75	3×0.75	26	0.6	0.011	0.8	6.4	8
RVV3×1.0	3×1.0	19.5	0.6	0.01	0.8	6.8	8.4
RVV3×1.5	3×1.5	13.3	0.7	0.01	0.9	8	9.8
RVV3×2.5	3×2.5	7.98	0.8	0.009	1	9.6	12
RVV4×0.75	4×0.75	26	0.6	0.011	0.8	6.8	8.6
RVV4×1.0	4×1.0	19.5	0.6	0.01	0.9	7.6	9.4
RVV4×1.5	4×1.5	13.3	0.7	0.01	1	9	11
RVV4×2.5	4×2.5	7.98	0.8	0.009	1.1	10.5	13
RVV5×0.75	5×0.75	26	0.6	0.011	0.9	7.4	9.6
RVV5×1.0	5×1.0	19.5	0.6	0.01	0.9	8.3	10
RVV5×1.5	5×1.5	13.3	0.7	0.01	1.1	10	12
RVV5×2.5	5×2.5	7.98	0.8	0.009	1.2	11.5	14

Workshop: we are the 19 years Electric wire & Power cable factory.

Certifications

Certifications: ISO9001/14000, RoHS, CE, CCC, IEC, BS, EN, VDE Standard

Contact:

Prod Model:	VV, RVV, KVV, YJV.
Product Name:	3X2.5mm2 Power Cable/3X1.5 Cable/3 Core 1.5mm Cabl
Number Of Cores:	Single/2/3/4/5/6/7/8/10/16 Core...
Rated Voltage:	0.6/1kv,1.8/3kv,3.6/6kv,6/6(10)Kv,8.7/10(15)Kv,12/
Cross Section Area/Measure:	3.5/4/6/10/16/25/35/50/70/95/120/150/185/240/300/4
Standard:	IEC 60502-1, BS 7870-6, BS 6622, BS 7835, GB 5023-
Conductor:	Stranded/Solid/Flexible Copper/Aluminum Conductor
Insulation:	XLPE/PVC/PE/Pur
Aplication:	Electric, House Wire, Building Wire...
Shield:	Copper Wire Screen(Cws), Aluminium Wire Screen(Aws
Armoured:	Steel Tape Armoured (Sta) or Steel Wire Armoured (
Application:	Telecommunication
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	PVC
Certification:	VDE
Model:	VV,Yjv...
Brand:	Chang Qing Teng

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
