| Prod Model: |
PDB-G Series 300-500W |
| Output Voltage: |
5-220VDC |
| Output Current: |
0-30A |
| Size: |
200*148*59mm |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Output Power: |
300-500W |
| Input Voltage: |
18-800VDC |
| Brand: |
Pengtu |
Product Description

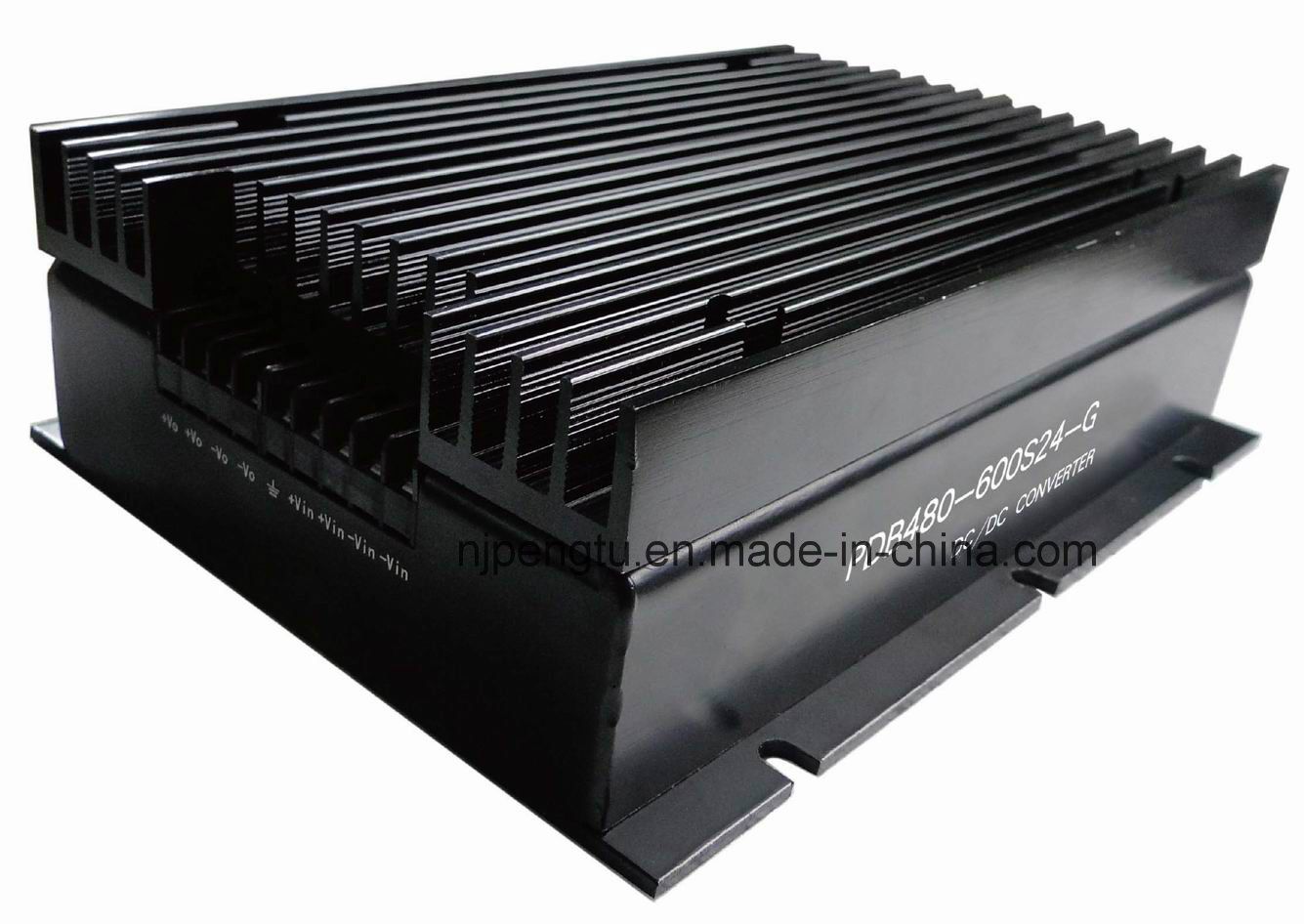

300-500W DC/DC Module Power SupplyProduct Description Features l II type input filterl 2X input voltagel Constant output currentl Output short circuit protectionl Easy installation, single side pin outl Best case connected model Design for high reliability, long lifetime Input Characteristic l Inputvoltage range............18 ~ 36 VDC Rated value: 24VDC 36 ~ 72 VDC Rated value: 48VDC 70 ~ 140 VDC Rated value: 110VDC 400 ~ 800 VDC Rated value: 600VDC Reverse Protection Fuse Outside Output Characteristic l Voltage set-point accuracy .........±1%l Output Volt. adjusted...................................±10%l Line regulation(main) .................±0.2%l Load regulation(main) ......….......…±0.4%l Temperature coefficient ..............…±0.01%/ºCl Output current limiting ...............… 120%(Typ)l Dynamic response ............… 400μsl Output current ...............… 5-40Al Output voltage ...............… 5-48Vl Power ..................... 300-500W General Characteristic l Switching frequency ............ 160-200 KHzl Isolation resistance ............ 200 MΩl MTBF ..................… >500000Hl Isolation voltage Input-output:>1500 VDC Input-case: >1050 VDC Output-case: >500 VDC l Environmental Characteristic Case temperature ............ Industry: -25+85ºC; Military I: -40~ +85ºC; Military II: -55~ +85ºC Storage temperature ........... Industry: -45~ +105ºC; Military: -55~ +105ºC Models | Model | Output Lines | Input Voltage (V) | Input Voltage Range (V) | Output Voltage (V) | Output Current (A) | Ripple pk-pk (mv) | Efficieency (Typ) |
| PDB360-24S12-G | Single | 24 | 18-36 | 12 | 30 | 100 | 85% |
| PDB480-24S24-G | Single | 24 | 18-36 | 24 | 20 | 200 | 86% |
| PDB560-24S28-G | Single | 24 | 18-36 | 28 | 20 | 200 | 88% |
| PDB480-24S48-G | Single | 24 | 18-36 | 48 | 10 | 400 | 89% |
| PDB360-48S12-G | Single | 48 | 36-72 | 12 | 30 | 100 | 85% |
| PDB480-48S24-G | Single | 48 | 36-72 | 24 | 20 | 200 | 89% |
| PDB360-110S12-G | Single | 110 | 70-140 | 12 | 30 | 100 | 84% |
| PDB480-110S24-G | Single | 110 | 70-140 | 24 | 20 | 200 | 85% |
| PDB480-600S24-G | Single | 600 | 400-800 | 24 | 20 | 200 | 85% |
| PDB480-600S48-G | Single | 600 | 400-800 | 48 | 10 | 400 | 86% |

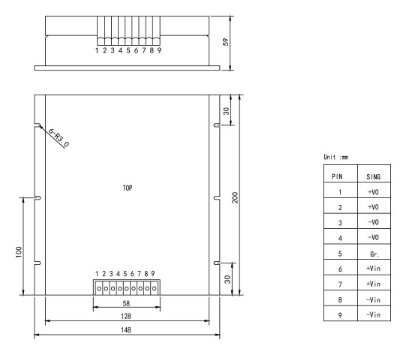

Remarks: Custom-made specifications are acceptable. Mechanical drawing and pin definition
