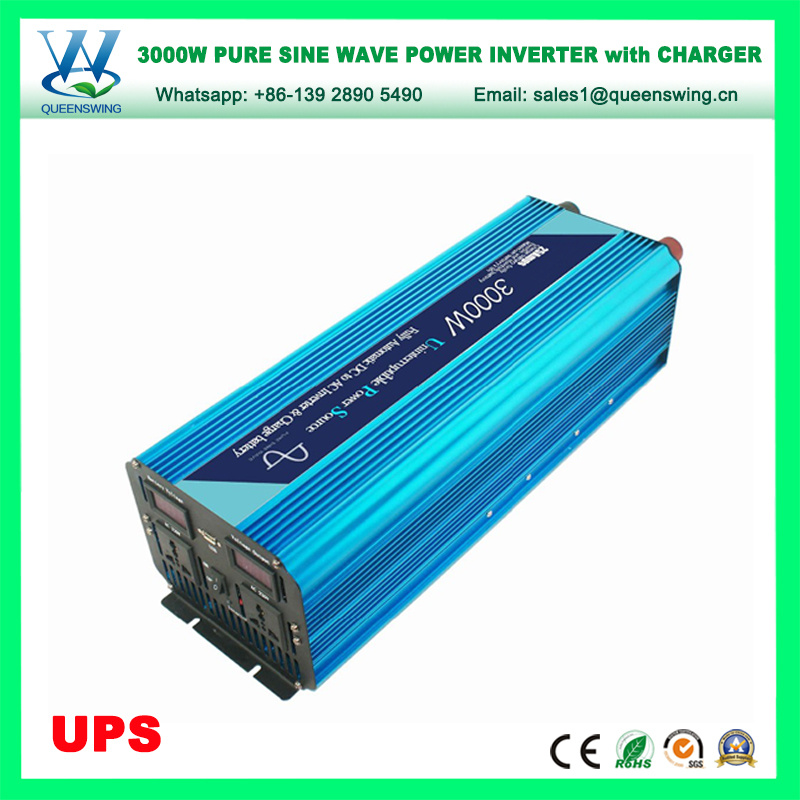

3000W UPS Pure Sine Charger Inverter with Digital Display (QW-P3000UPS)

3000W UPS Pure Sine Charger Inverter with Digital Display (QW-P3000UPS)

Products Description:
Queenswing 3000W DC12/24V Pure Sine Wave Solar Power Inverter supplies high-quality true sine output wave, it is designed to operate popular electronic appliances and sensitive loads. Connecting Queensing pure sine wave inverter with battery terminals, then you can get AC power for your appliances.

Main Features:
* Pure sine wave output: Relative to the square wave or modified sine wave ( Step wave), it have a stronger effect in loading or load capacity.
* Digital display: Input voltage and Output Voltage.
* UPS+charger function: when city power is on, inverter use city power first; once city power cut off suddently, inverter transfer to use battery back-up power automatically, and the transfer time ≤5mS.
* Revolving speed of the intelligent fan control.
* With USB port.
* Maximum 3000W continuous output and 6000W surge power.
* Available with capacitive load, inductive load and any other type of general-purpose AC load, if it runs a refrigerator, television or radio equipment,  there would be no interference and noise and will not affect the load equipment performance and life.
* High stability: Since it has over voltage, under voltage, overload, overheating, short circuit, reverse  and improved protection, stability of the system.

Technical Parameter:

Model No.	PSW-3000UPS
Rated power	3000W
Peak power	6000W
Transfer efficiency	≥90%
Input voltage	12Vdc	24Vdc
Input voltage range	10-15Vdc	20-30Vdc
Output voltage	110Vac	220Vac
Output voltage range	110Vac±5% or 220Vac±5%
Voltage display	digital display
Frequency	50Hz±2% or 60Hz±2%
No load current	<0.7A	<0.5A
Waveform	Pure Sine Wave
Low voltage alarm (no-load)	DC 11.0V+/-0.5V	DC 21V+/-0.5V
Low voltage cut off (no-load)	DC 10V+/-0.3V	DC 20V+/-0.3V
Over voltage protection (no-load)	DC 15V+/-0.5V	DC 30V+/-0.5V
USB port	yes
Over-load Protection	3000W-3100W
Cooling Way	Intelligent Cooling Fans
Fan Start Temperature; Temperature Protection	≥40±5ºC; 70±5ºC
UPS transfer time & Max. Charger	≤10mS & Max.25A
Packaged	1*pair battery cable(red & black) 1*battery charger cable 1*english user manual 1*neutral packing box
Dimension	Inverter: 529*180*142mm/7.5kg Carton: 630*430*230mm/17kg/2pcs
Certifications	CE,Rohs

All protection:
1. Over load protection
2. Over current protection
3. Over voltage protection
4. Low voltage protection
5. Surge protection
6. Short circuit protection
7. High temperature protection
8. Reverse connection protection
9. Internal fuse protection
10. Leakage Protection

Application:
Wind generation, solar panel, home, office, car, board and some place that lack electricity. Ideally suitable for Journeys, Camping, Tents, Boat Trip, Working on the way and everywhere, where is no electricity!

Load:
1> Office equipment series: Computers, Printers, Copiers, Scanners, digital camera, etc.
2> Household appliances series: Vacuum cleaners, Fans, Lighting, Electric cutting knife, Television, Sewing machines, Electric fans, AC, etc.
3> Kitchen utensils series: Microwave ovens, Freezers, Coffee machines, Blenders, induction cooker, etc.
4> Electronics Series: TV, VCR, Game consoles, Radios, Power amplifiers, Audio equipment, Monitoring equipment, Terminal equipment, Intelligence platforms, Satellite communications equipment.
5> In-car or on-boat devices series: Military vehicle, police cars, medical ambulance, ships, traffic lights, and etc.
6> Industry equipments series: Solar energy, wind power, gas discharge lamp and etc.

User Guide
Application	Wattage	Inverter Wattage
		150W	300W	500W	800W	1000W	2000W	3000W	4000W
Mobile phone	5W	√	√	√	√	√	√	√	√
12 inch color television	16W	√	√	√	√	√	√	√	√
Video games console	20W	√	√	√	√	√	√	√	√
Electric light	25W	√	√	√	√	√	√	√	√
Satellite TV receiver	30W	√	√	√	√	√	√	√	√
CD or DVD player	30W	√	√	√	√	√	√	√	√
HiFi stereo 4-Head VCR	40W	√	√	√	√	√	√	√	√
Guitar amplifier (at average volume)	40W	√	√	√	√	√	√	√	√
Stereo system (at average volume)	55W	*	√	√	√	√	√	√	√
Electric fan	55W	√	√	√	√	√	√	√	√
Notebook	60W	√	√	√	√	√	√	√	√
GE 9 inch color TV/radio/cassette	65W	√	√	√	√	√	√	√	√
19 inch color TV	80W	√	√	√	√	√	√	√	√
20 inch VCR combo	110W	√	√	√	√	√	√	√	√
27 inch color TV	170W		√	√	√	√	√	√	√
Stereo amplifier	250W		*	*	√	√	√	√	√
Small-medium printer	350W			*	*	*	√	√	√
Home theater system	400W			*	*	*	√	√	√
Power drill	400W			√	√	√	√	√	√
Rice cooker	500W			√	√	√	√	√	√
Small coffee machine	600W				*	*	√	√	√
Refrigerator	750W				*	*	*	√	√
Small microwave oven	800W				*	*	*	√	√
Toaster	1000W					*	*	√	√
Hair dryer	1000W						√	√	√
Full size microwave oven	1500W						*	*	*
Electric kettle	1800W						√	√	√
Induction cooker	2000W						*	*	*
washing machine	2500W							*	*
Air conditioner 16000BTU	2500W								*
Air compressor 3HP	2800W								*
Heavy duty power tools	2800W								*
Air conditioner 22400BTU	3500W								*
Note: For those starred models, pure sine wave inverters are preferred.

Warranty:
L - The good construction warranty-1 years
L - Your client satisfied on the right schedule and quality
L - Your can get good reputation from your market and obtain more orders
L - Our professional service before and after sale
L - The reasonable price

Some about us
Queenswing is a professional manufacture specialized in Power inverter and solar products, We have professional development team. We pursues to establish the culture of "quality first, reputation best ".

Product category
Car Power inverter
Car Inverter with USB Port
Pure sine wave invertrer
UPS Pure sine wave inverter with charger
Modify sine wave inverter
UPS power inverter with charger
Solar energy power source
Solar charge controller

Our products usually are exported big quantity in to Europe, USA, African, Russia, Australiaetc. And our power inverter serials enjoy better reputation. With reliable quality and stable performance.

Payment Terms:
T/T, Western Union, Money Gram
Production arranged after receipt of payment.

Lead Time:
Sample order will be delivered within 7 working days.
Order quantity below 100PCS, delivery time is 7-15 working days.
Container order will be delivered within 15-30 working days.

Shipment:
Courier: FedEx, DHL, TNT, UPS, Aramex, EMS ect.
Forwarder: By sea / air or Customer designated


FAQ:

1. What is inverter?
Inverter is an electronic equipment that turn 12v/24v/48v dc into 110v/220v ac.

2. What is the difference between the inverter with UPS + charger and inverter with charger?

A2: UPS inverter: When the mains is on, the current through the inverter power to the load, and at the same time charge the battery. When mains drops, it will automatic transfer and let the battery to supply power for the load: Current flow direction is: Battery - inverter - Load.

With battery without UPS inverter: When the mains is on, the main electricly charge the battery, and the current of the battery through the inverter power to the load, always use battery power, without automatic transfer function.

3. What can a UPS do for me?

A1: Every UPS will supply power to a load (such as a computer, telephone switch or medical equipment) when mains power fails, it may also condition the power and prevent spikes, brownouts, interference and other unwanted problems from reaching the supported equipment.
