300W off Grid Pure Sine Wave Power Inverter
| Price: |
US $ 35.5-40/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Western Union,Paypal |

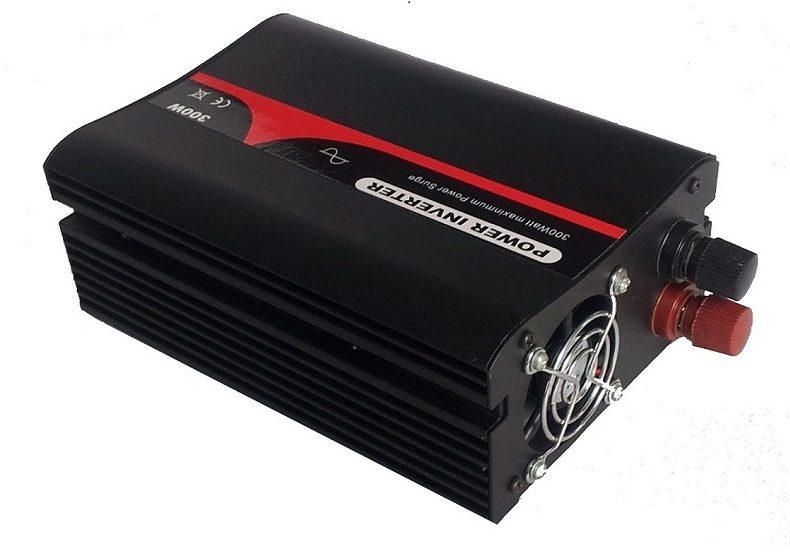

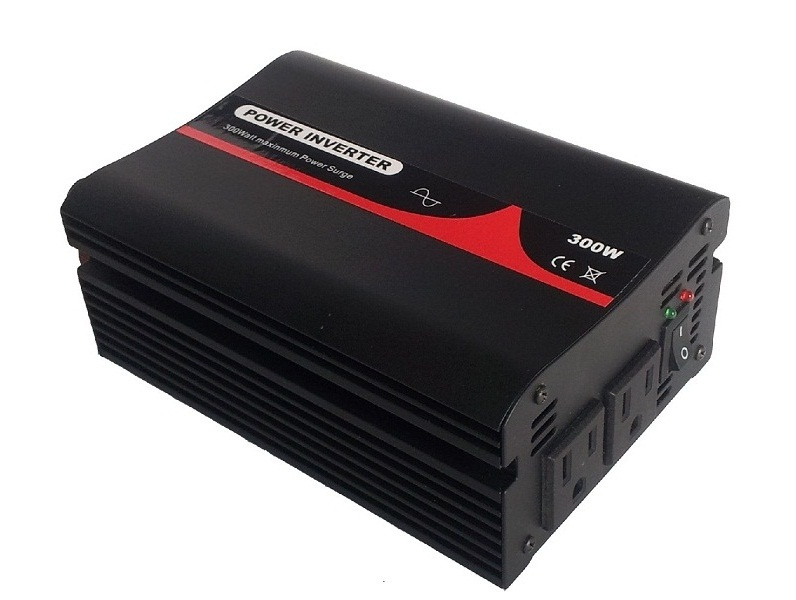

300W Off Grid Pure Sine Wave Power Inverter
Output wave form: Pure sine wave output (THD<3%)
Power ON-OFF switch
Thermo control cooling fan
Two-color indicators display power and fault status
Max efficiency to 92.5%
Topology: Microprocessor
Low battery voltage, over battery voltage, lack-voltage alarm.
Protections:short circuit, overload, over temperature.
Approvals:CE mark / EMC / LVD/ RoHS
Applications:
You can use many place. such as laptop, camcorder, the Internet, GPS, camera, PDA, cell phone, mobile DVD, audio, battery charger, printers, monitors, game consoles, trucks, etc.
1. Field operations: lighting, drilling, disaster relief, commercial promotions.
2. Hospital emergency rescue: surgical lighting, equipment use, etc.
3. Home Appliances: Electronic energy-saving fluorescent, incandescent, small television sets, car refrigerator, etc.

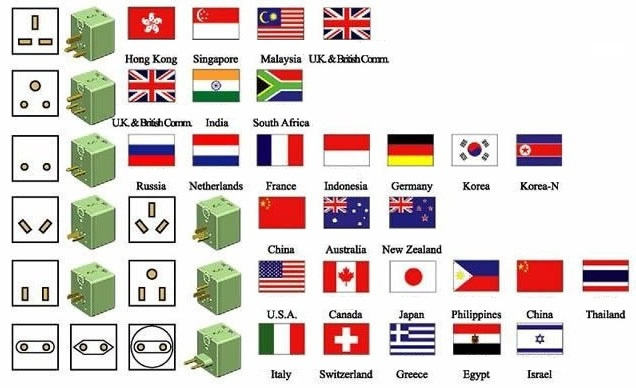

Socket type (When you release order, please let me know your choose, thanks!!)
Specification
| Model No. | SKP-300W |
| Input | DC voltage | 12V | 24V | 48V |
| No load current draw | <0.2A | <0.12A | <0.6A |
| Voltage range | 10.8~15VDC | 21~30VDC | 41~56VDC |
| Efficiency | 88%~92% |
| DC connector | Cables with Clips or Car Adapter |
| Output | AC voltage | 110V±10% / 220V±10% |
| Rated power | 300W |
| Peak power | 600W |
| Waveform(THD) | Pure sine wave (<3%) |
| Frequency | 60Hz±0.3% / 50Hz±0.3% |
| Protection | Low voltage alarm | 10.2~10.8VDC | 20.4VDC | 40.8VDC |
| Low voltage shut down | 9.5VDC | 19.5VDC | 38.5VDC |
| Over voltage shut down | 15.5VDC | 30.5VDC | 61.2VDC |
| Over load | Shut Off Output |
| Over thermal | Shut Off Output Automatically |
| Fuses | Short Circuit |
| Environment | Working temperature | -10ºC~+50ºC |
| Working humidity | 10%~90% RH |
| Storage temperature | -20ºC~+50ºC |
| Package | Machine size | 150*130*52mm |
| | Packing size | 260*195*95mm |
| | N.W | 1.0kg |
| | G.W | 1.2kg |
| Others | Start | Soft Start |
| | Cooling ways | Cooling fan |
Company Information
Who we are

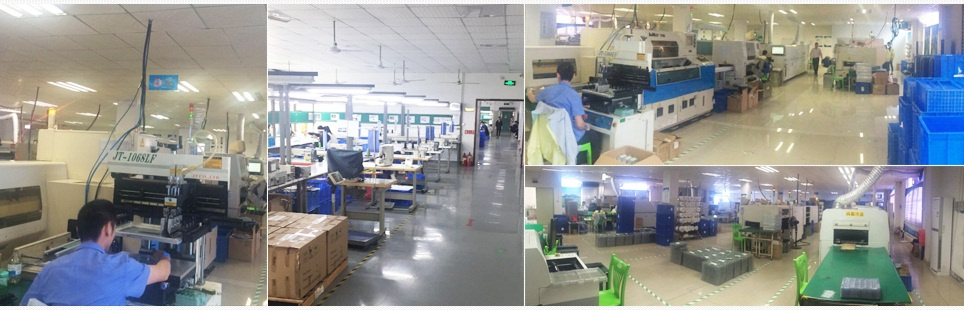

SINO-K is a professional high-tech manufacturer that integrates R&D, manufacturing and marketing of energy electronic series products,including DC-DC Power Converters,DC-AC Power Inverters, and Custermized services.The headquarters is located in Shenzhen. Shenzhen production workshop area of 850 square meters, and, in inland city, the production base with 6900 square meters.Our professional technicians and senior engineers with more than 10 years of energy product research and development, production management experience.
Contact us
If you can not find a suitable model, our technical engineers will be based on your actual needs, corresponding to the rapid power solutions.I hope that we can become a long-term partner.
| Prod Model: |
SKP-300W |
| Input Voltage: |
12V/24V/48V DC |
| Output Voltage: |
AC110-120V/AC 220-240V |
| Output Frequency: |
50Hz/60Hz |
| Efficiency: |
90% |
| Rated Power: |
300W |
| Peak Power: |
600W |
| Color: |
Black,Optional |
| Warranty: |
12 Months |
| Delivery Time: |
Normally One Week |
SINO-K is a professional high-tech manufacturer that integrates R&D, manufacturing and marketing of energy electronic and medical device series products. The headquarters is located in Shenzhen. Shenzhen production workshop area of 850 square meters, and, in inland city, the production base with 6900 square meters, with a number of modern production workshop, advanced production and testing equipments, professional technicians and senior engineers with more than 10 years of energy, medical products research and development, production management experience.
SINO-K main products include the Waterproof DC-DC Boost-Buck Converter, High-Frequency Switching Power Supply, DC-AC Power Inverter, On/Off-grid Inverter and public health series products, widely used in automobiles, ships, telecommunications, solar system, military and aerospace, medical and other industrial equipments. SINO-K has passed ISO 9001 quality management system certification, some products with CE, RoHS certificates. The products are sold to more than 100 countries and regions in the world, and established long-term cooperation with many distributors.
SINO-K respected "pragmatic, hard work, responsibility" spirit of enterprise, based on "honesty, innovation and win-win" operation philosophy, to create a good production and working environment. The new management mode, perfect technology, good service, and excellent quality are basic for survival. We always adhere to the customer first, service to customers by heart, and insist on using our best and professional service to impress customers. SINO-K can offer you professional OEM/ODM solutions.
Welcome to visit us!
