30A Fuse with 1000V DC Fuse Holder for PV Combiner Box Components

30A Fuse with 1000V DC Fuse Holder for PV Combiner Box Components
Price: US $ 1-10/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: SDPV-30
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
CE Standard: IEC60947-2/GB14048.2
Current: 3A,4A,6A,10A,13A,16A,20A,25A,32A,40A,50A,63A
Poles: 1p,2p,3p,4p
DC Voltage: 400V,600V,1000V Optional
Brand: Bangzhao or OEM

Product Description

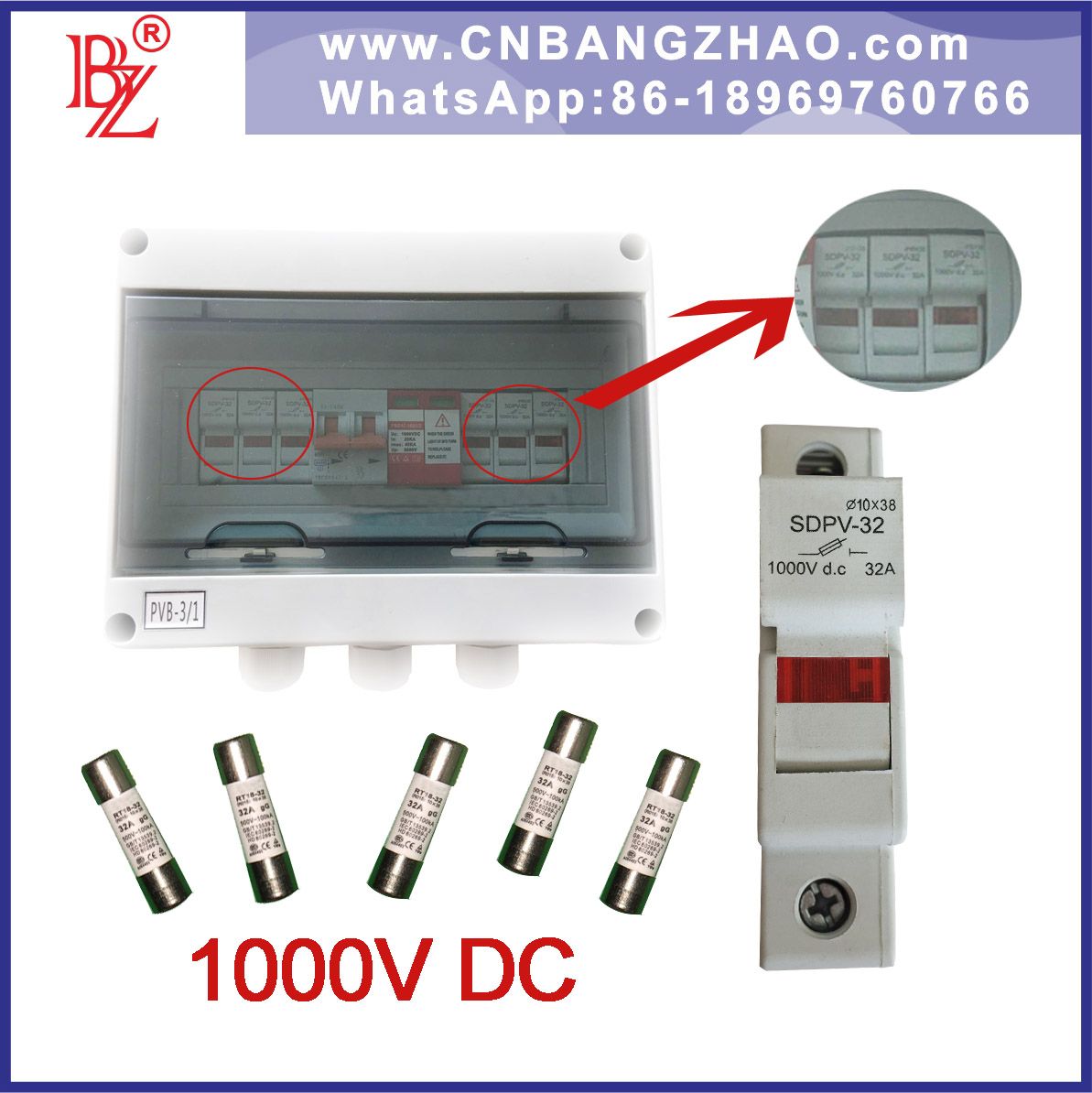

30A fuse with 1000V DC Fuse Holder for PV Combiner Box Components
PV DC PVH-30 Fuse Holder was designed and manufactured , complying with the standard IEC60947-3. The Rated Current up to 30A,rated voltage up to 1000V DC. It applied for PV DC combiner box, inverter etc, with the main function of over-current protection and effective disconnection.


PV DC PVH-30 Fuse Holder
Pole1P
According toIEC 60947-3
Electrical Characteristics
Rated Working VoltageUe1000V DC
Rated CurrentIn30 A
Breaking Capacity20KA
Max Power Dissipation3W
Contol and Indication
Operating State/Fault IndicationIndicator Light OFF/Indicator Light ON
Connection and Installation
Wire2.5mm2~25
Terminal ScrewsM5
TorqueNm2.5
Degree of ProtectionIP20
Installation Environment
Fuse Size10x38 mm
Operating Temperature RangeTU-30ºC~+70ºC
For Mounting OnTH35-7.5/DIN35
Pollution Degree3
Relative Humidity+20 ºC≤ 95%,+40ºC≤50%
Weight0.07kg Per pole
Installation ClassIII
