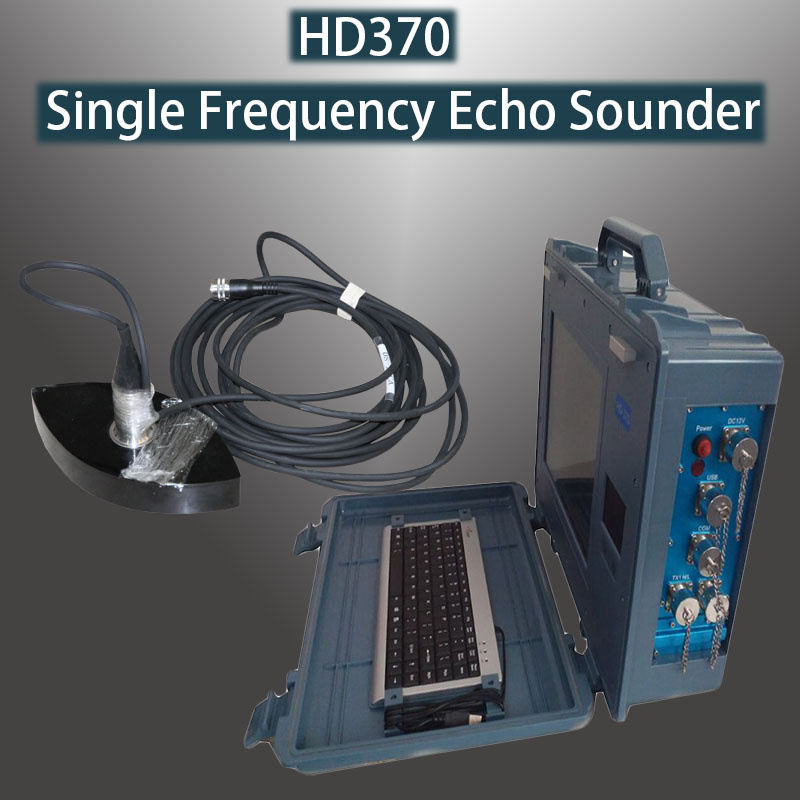

30Hz Water Depth Collecting Rate Marine Echosounder
Price: |
US $ 3000-6000/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,Western Union,Paypal |
Technical Specification of the single frequency echo sounder:Accuracy:Static | Horizontal ±2.5mm + 1ppm vertical ±5mm + 1ppm |
RTK | Horizontal ±1cm + 1ppm vertical ±2cm + 1ppm |
RTD | ±0.45m (RMS) |
Input/output data format:Differential message | CMR, CMR+, RTCM2.1, RTCM2.2, RTCM2.3, RTCM3.0,RTCM3.1 |
Observation data format | ZHD |
Port component:
1 serial port for differential data
1 COM3
1 GNSS antenna port
1 GPRS antenna port
1 UHF antenna port
Reserve 1 for event input
Initialization
Time: <30s
Liability: >99.9%
Data record/storage
Built-in 64M flash memory card
U disc style, plug and paly
Environment:Operating temperature | -30ºC~+60ºC |
Storage temperature | -30ºC~+65ºC |
Main Features of the echo sounder:Accuracy
Advanced VF Frequency adjustable technology lower the buzzer noise caused by the transducer, eases interference echo.
Latest designed TVG curve provides perfect Gain Control for Sonar transmission attenuation.
Advanced bottom digitizing capabilities and pulse width selection technology assure the accuracy of underwater survey.
Efficiency
30Hz water depth collection rate, improve sounder efficiency and provide echogram more detailed and precise.
Adjustable frequency for various transducer, expand the scope of application.
Stable performance
Enbedded windows XP operating system, stable to use.
Adopt unique "fast mapping failback" technology for protecting from virus.
Dual storage disk, dual operating system, one key ghost.
High strength ABS+PC material cover, waterproof, shock resistance.
Convenience
Range is automatically and manually
Digital image resolution technology, display like falls and record, easy to reply and print.
Portable design, easy to carry.
1024*768 dpi high-resolution, high-brightness LCD display, high definition in the sun.
Application mode
>>Working station echoing mode:
Only need to connect the echosounder to the DGPS receiver and 12V DC battery can launch survey work, greatly simply water depth survey work.
>>Precise echoing mode:
Connecting to a surge compensator, for correcting error which evocable from surge in water depth surveying, to increase surveying precision.
>>Combined echoing mode:
The echosounder also carries out working mode with echosounder + laptop + GPS + battery, satisfying customer's traditional surveying requirement.
>>Construction positioning surveying mode:
The echosounder is not only a set of digital echosounder, but also a set of stable industrial controlling computer. To effectively solve unstable AC power supply on board, it's available for direct power supplying in 12V DC, connecting GPS receiver and processing construction.Contact US:
Prod Model: |
HD-370 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Static Accuracy: |
Horizontal;2.5mm + 1ppm Vertical;5mm + 1ppm |
Rtk Accuracy: |
Horizontal;1cm + 1ppm Vertical;2cm + 1ppm |
Rtd Accuracy: |
0.45m (RMS) |
Differential Message: |
Cmr, Cmr+, Rtcm2.1/2.2/2.3/3.0, Rtcm |
Observation Data Format: |
Zhd |
Initialization Time: |
< 30s |
Initialization Liability: |
>99.9% |
Operating Temperature: |
-30c~+60c |
Storage Temperature: |
-30c~+65c |
Dimension: |
22.5*13.8*7cm 1.0kg |
Screen Size: |
7" |
Type: |
Echosounder |
Operating Principle: |
Echosounding |
Model: |
HD 370 |
Brand: |
Hi-Target |
Certification: |
ISO9001 |
