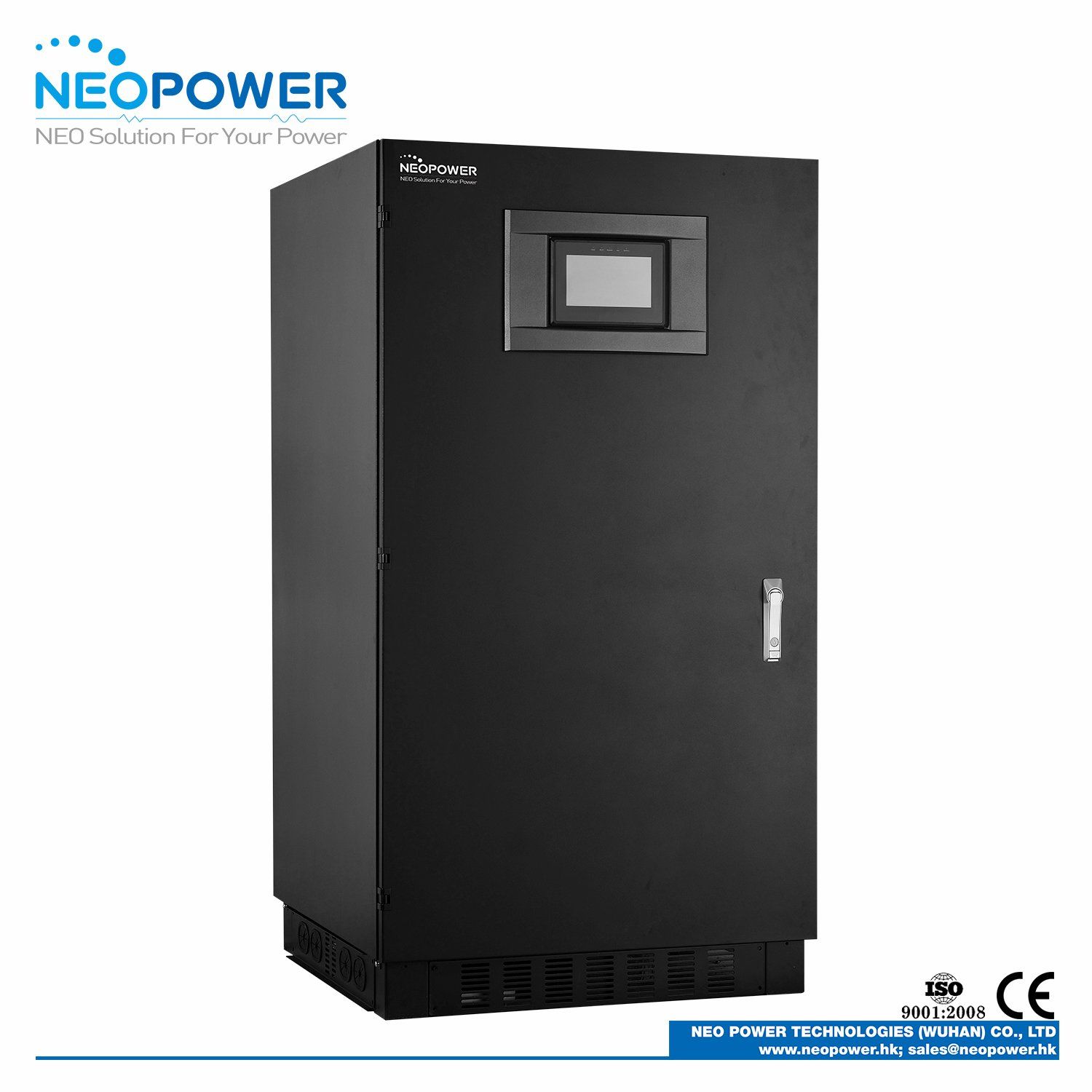

30kVA/50kVA/80kVA/100kVA/120kVA/160kVA/200kVA 3 Phase Industry Online UPS
| Price: |
US $ 8930-11100/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Model | NP33100 |
| Capacity | 100 kVA |
| Power Rating | 80/90 kW |
| Input Voltage | 380/400/415 Vac +/-20%, three phase + N + PE |
| Input Frequency | 40 ~ 65 Hz (auto sense) |
| Input Power Factor | >0.9 |
| Output Voltage | 380/400/415 Vac +/-1%, three phase + N + PE |
| Output Frequency | input frequency synchronized |
| Output Power Factor | 0.8/0.9 |
| THD | <1% (linear load), <3% (non-linear load) |
| Crest Factor | 3 : 1 |
| Efficiency | 95% (normal); 98% (ECO) |
| Overload Ability | 600' / 10' / 1' (110% / 125% / 150%) |
| Battery Voltage | 384 Vdc (optional 192/240/480 Vdc) |
| Transfer Time | 0 ms |
| Display | touch screen (optional LED) |
| Communication Port | RS 232 / RS 485 / SNMP Card / Dry Contact |
| Operation Temperature | -10 ~ 50ºC |
| Noise | 60 ~ 65 dB |
| Altitude | full power rating at 1000 m, 1% decrease as per 100 m higher |
| Humidity | 95% (non-condensing) |
| Alarm | buzzer + LED indicators (+optional LCD display) |
| Standards | EMI: IEC50091-1; EMC: IEC50091-2 |
| Dimension | 800 * 800 * 1800 mm |
| Net Weight | 900 kG |

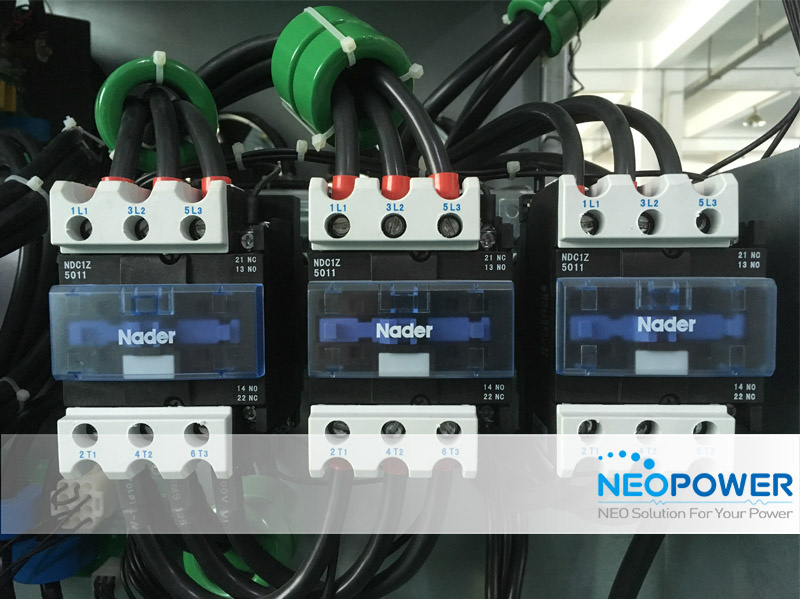

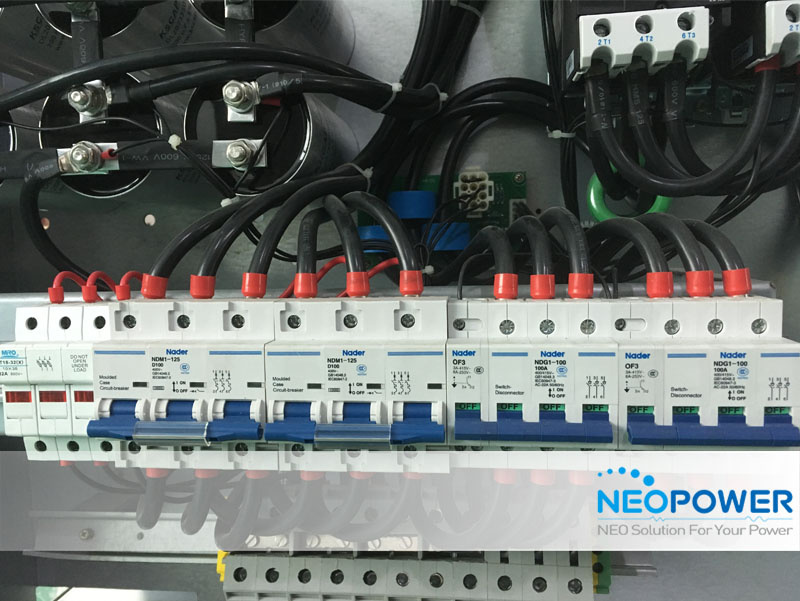

| MILITARY BRAND BREAKERS & SWITCHES |
Industrial Grade

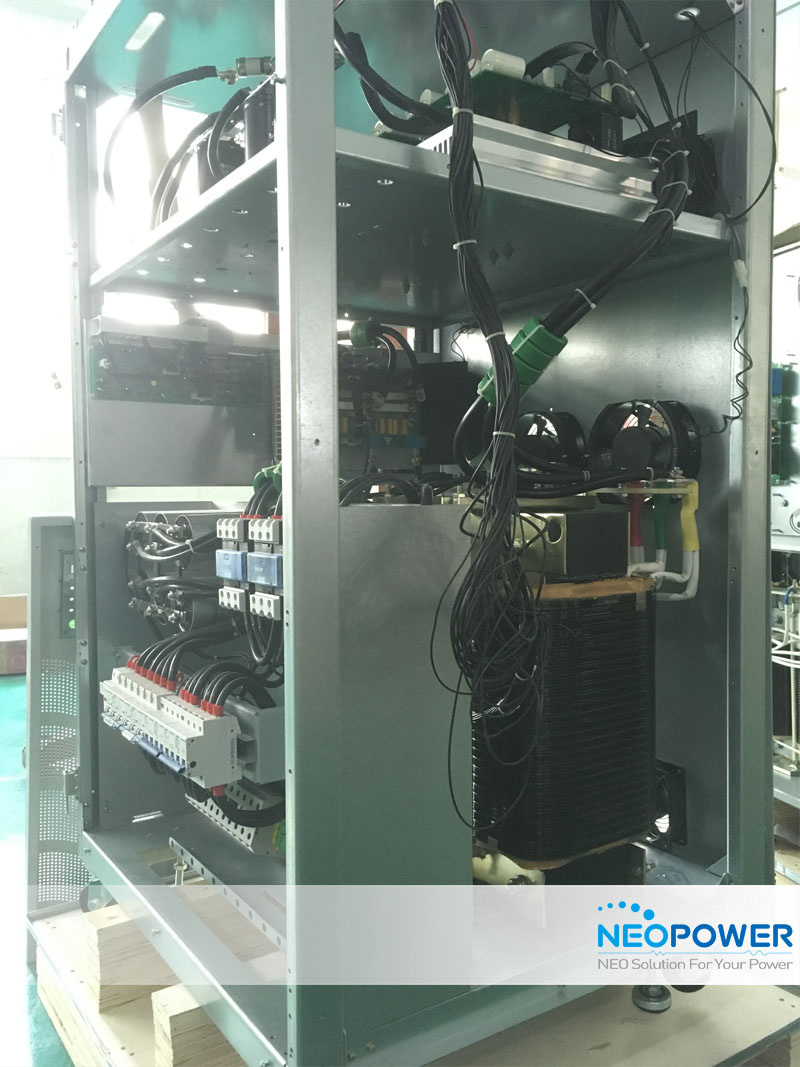

Built-in Output Isolation Transformer
Max 8 Units Parallel Connection Available

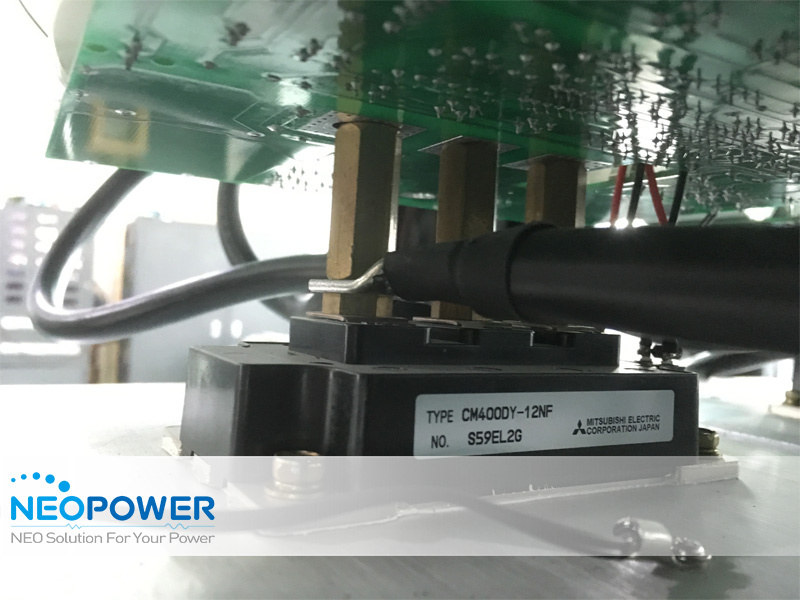

6th Pack IGBT Module
Double DSP Control Units
Frequency Tracking, Phase-Locked
Bypass Mode Available
Optional Bypass Isolation Transformer
Built-in Manual Maintenance Bypass Switch
LCD Touch Screen & LED Display Options
| Prod Model: |
NP33100 |
| Capacity: |
100kVA |
| Power: |
80kw |
| Input Voltage: |
380V/400V/415V +/-20% |
| Power Factor: |
0.8/0.9 Optional |
| Wave Form: |
Pure Sine Wave |
| Battery Voltage: |
384V/192V |
| Mtbf: |
300,000 Hours |
| Communication Port: |
RS232/RS485/Dry Contact |
| Features: |
Built-in Output Isolation Transformer |
| Certificate: |
Ce |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Classification: |
Power Supply |
| Brand: |
Neopower |
NEOPOWER was born for providing high efficient and reliable solutions and products for people who are living with power problems, like power surges, sags, spikes, fails, harmonic etc. Integrating R&D, manufacturing, marketing, and sales, NEOPOWER supplies various power products, such as Uninterruptible Power Supplies (UPS), Automatic Voltage Regulators/Stabilizers (AVR/AVS), Inverters & Chargers, Load Banks, Voltage Optimizers, Voltage Transformers, Surge Protective Devices (SPD), and Power Distribution Units (PDU).
NEOPOWER set foot in power optimization in early 1990s. Now the power product range covers miscellaneous fields: Not only precision machines in telecommunications, IT, TV or radio broadcasting, and medical systems, but also heavy equipment in oil & gas, military, mining, HVAC, fire-fighting, and building. Where there are power problems, there are NEO Solutions.
Certified with ISO9001, NEOPWOER has received wide recognition from partners in Africa, Middle East, Southest Asia, Europe, the Caribbean, and Latin America during past decades, and has exclusive distributors in Kenya, Papua New Guinea, and Zimbabwe, authorized distributors in Ghana, Zambia, Ethiopia, and Nigeria, and Philipines exclusive distributor is in progress.
NEO: The New, Effective, Optimistic attitudes towards your power problems!
Slogan: NEO Solution For Your Power
Purpose: To be a global leading expert in power optimization.
Mission: To multiply values for our customers and our employees, to improve energy efficiency for our society.
Vision: After equipped with NEOPOWER products, people are no longer tormented by the poor power quality from their daily life, production, and work.
Value: Adhering to the customer demand-oriented development and sincere customer care principles, deeply understanding customers' demands, providing instructive solutions and finally creating value for them.
Quality: Pursuing high-quality products and efficient services, taking an uncompromising attitude towards the quality problems.
