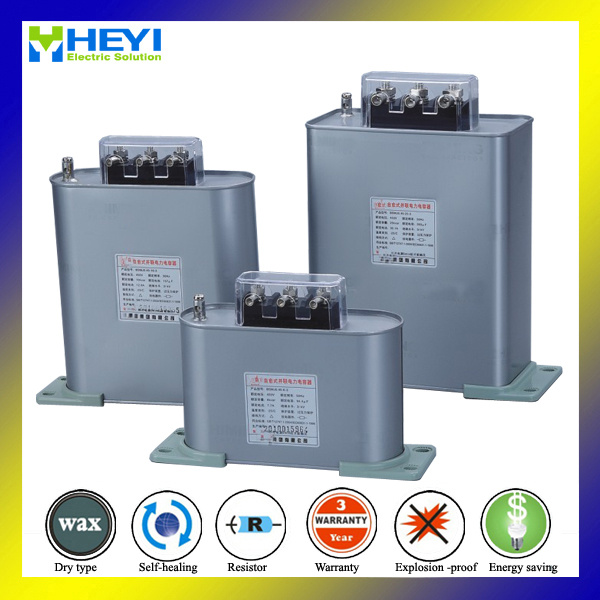

30kvar Single Phase Metallized Polypropylene Film Capacitor

Prod Model:	BSMJ0.23KV-30KVAR-3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Anti Rust Metal Sheet Power Capacitor
Terminal Connection:	Anti Fire Bakelite Run Capacitor
Metallized Polypropylene Film Function:	Reduce Reactive Start Capacitor
Medium:	Wax Type
Release Electricity Time:	30 Second
Anti Explosion:	Explosion Device Inside
Capacitor Type:	Self Healing Low Voltage
IEC Standard:	IEC60831
Phase:	Single Phase Metallized Polypropylene Film Capacit
Handle Sample Time:	5 Days Solid Capacitor
Type:	Polypropylene Capacitor
Application:	Power
Package Type:	Surface Mount
Capacitance:	50-100uf

Product Description

Metallized Polypropylene Film Capacitor 230V 30KVAR single phase 50hz /60hz
1.low voltage shunt type
2.30% reduce power loss
3.dry type ,no pollution
4.explosion proof device inside
Metallized Polypropylene Film Capacitor 230V 30KVAR single phase 50hz /60hz
Voltage:230V
Capacity:20KVAR
Rated capacity UF:1019UF
Rated current :80A
Metallized Polypropylene Film Capacitor 230V 30KVAR single phase 50hz /60hz   Specification

Series	BSMJ0.23KV-25KVAR-3
Rated Voltage Range	From 220-1000 VAC
Capacitor Connection	3 phase (1 phase on request)
Capacitor Frequency	50/60 Hz.
Capacitor Power Range	5- 60 KVAR
Dielectric	Metalized polypropylene film with self healing
Protection	IP 42 (IP 54 on request)
Discharge Resistors	Built in automatic discharge resistors included, less than 75V within 3 minutes after de-energizing the capacitor
Tolerance	±5%
Maximum Ambient Temperature	-25 °C--50°C  (Other temperature range on request)
	Average temperature within 24 hours below 40°C&average
	temperature with a year below 30°C
Max. Relative Humidity	≤90%
Max. Altitude	≤2000m (Other altitude on request
Over Voltage Tolerance	1.1   UN  (8 hours max. in every 24 hours)
	1.15 UN  (30 minutes in every 24 hours)
	1.2 UN  (5 minutes in every 24 hours)
	1.3 UN  (1 minutes in every 24 hours)
Over Current  Tolerance	30% permanently
Max. Surge Current	200 times of rated current
Dielectric Loss	≤0.2 Watt / KVAR
Voltage Test	Between terminals: 2.15 Un for 10 seconds.
	Between terminals to container:  3000VAC for 10 seconds
Safety System	Self protection device
Capacitor Case Material	Rust-Proof painted steel
Execution	Indoor, minimum distance between units  : 50mm
Standard	IEC60831 / GBT12747

Metallized Polypropylene Film Capacitor 230V 30KVAR single phase 50hz /60hz     advantage

1.20 years global leading profession manufacture of power capacitor
2.Metallized polypropylene film work with 20 degree the whole day
3.Import auto machine wind the film core in order confirm the core quality
4.each core will test the capacity by auto machine
5.Each products will put explosion proof device and release resistor
6.OEM is warmly welcome
 7.Convenient : 45 minutes to wenzhou airport

Metallized Polypropylene Film Capacitor 230V 30KVAR single phase 50hz /60hz   function
1.Safety: With over pressure prodection device, automatic power disconnection to any fault or overload; the residual voltage will drop to 75V or lower in 3 minutes after capacitor being disconnected from power source.
2.Full-dry construction: Fine vacuum silicon oil prevention No pollution to the environment.
3.Long-life: Constructed with special composite electrical material and reinforced insulation materrial,The spoilage is low with tiny loss of power capacity,Normally capacity  drops 2% in two years longer operation.
4.Small dimension and novel appearance,convenient for installation,designed at the customers' request,adapted in compensation capacitors.

Metallized Polypropylene Film Capacitor 230V 30KVAR single phase 50hz /60hz  Payment terms
1. 30% T/T advance , the balance against to the copy B/Lor LC at sigh
2. The other specific issues can negorate.
3. Pls confirm the details with us before do the prepayment.

Metallized Polypropylene Film Capacitor 230V 30KVAR single phase 50hz /60hz   Packing information
1. Inside foam package ,outside strong paper package
2. 6pcs/per CTN
3. G/N.W: 20/19kg
4. We can packing as your required,good looking design

Why choose Metallized Polypropylene Film Capacitor 230V 30KVAR single phase 50hz /60hz
1).ISO9001,SGS,Gold golden supplier
2) Monthly Production Capacity -- 100000 Pcs
3)All goods examined before delivery by 10 QC staff
4)Prompt Reply Within 12 Hours
5)8000 square meters work environment
