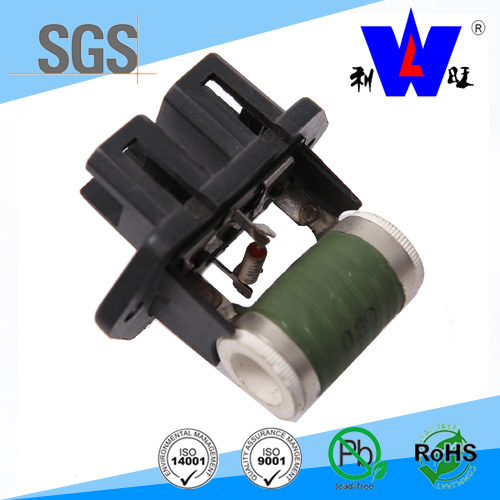

30W 0.3r Coating Wirewound Auto Fan Resistor, Heating Wire Blower Motor Resistor

Name: 30W 0.3r Coating Wirewound Auto Fan Resistor, Heating Wire Blower Motor Resistor
Brand: all-electronics-online.com
SKU: 810564775
Availability: InStock
Rating: 5 (86 reviews)

Price:	US $ 1/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Product description of Ry(RFC) Autombile Fan Resistor with TS16949 & ISO9001

1.Part Name
RX26G-30W-R3K(0.3ΩK)

2.Dimension(Unit:mm)

No.	Item	Testing Method	Requirment
1.	Dimension	Calipers	See the above drawing
2.	Surface	Visual inspection	label clearly and clean, trademarks, models, resistance and tolerance all marked. Paint layer is basically the same color, smooth. No accumulation, paint tumors and cracking. Allow small amount painting repairing. From the roots of 2mm above does not allow any paint. The lead terminal connects firmly, No dislocation on installing holes, smooth,and bright tin layer. Plating bright ,no rust.
3.	Resistance	0.2 levels of resistance bridge	Among Tolerance
4.	Short time overload	5Times Rated power 5s	△R≤±(5%R+0.05Ω)
5.	Terminal strength	Adding Vertical Tesion 20N10S	△R≤±(5%R+0.05Ω) No Damage
6.	Vibration	Amplitude 10~500Hz 0.75mm X Y Z 3 Hours	△R≤±(3%R+0.05Ω) No Damage
7.	Load life	Room temperature, rated power load for 1000 hours, 1.5 hours pass, 0.5 hours off	△R≤±(5%R+0.1Ω) No Damage
8.	Moisture	RH 93% 40ºC±2ºC 96h	△R≤±(5%R+0.1Ω) No damage Label is clear

If there are any questions or requirements, please contact us freely in any time.
Welcome to provide us your specifications. We will submit the best quotation shortly.

Environmental Certification:	ISO14000
Quality Certification:	ISO9001 Ts16949
Resistance Tolerance:	5%,10%
Temperature Coefficient:	+/-250ppm
Product Name:	Ry(Rfc) Autombile Fan Resistor with ISO9001
Resistance:	Fixed Resistor
Function For Resistance:	Load Resistor
Material:	Wire-wound Resistor
Package Type:	Throught Hole
Application:	Auto
Brand:	Liwang

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment"
