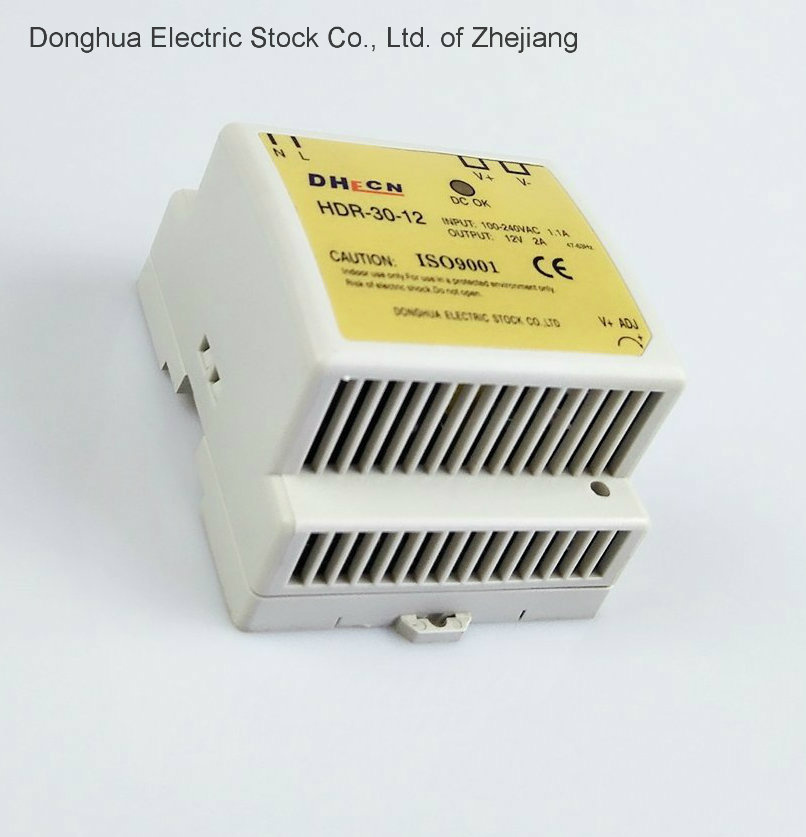

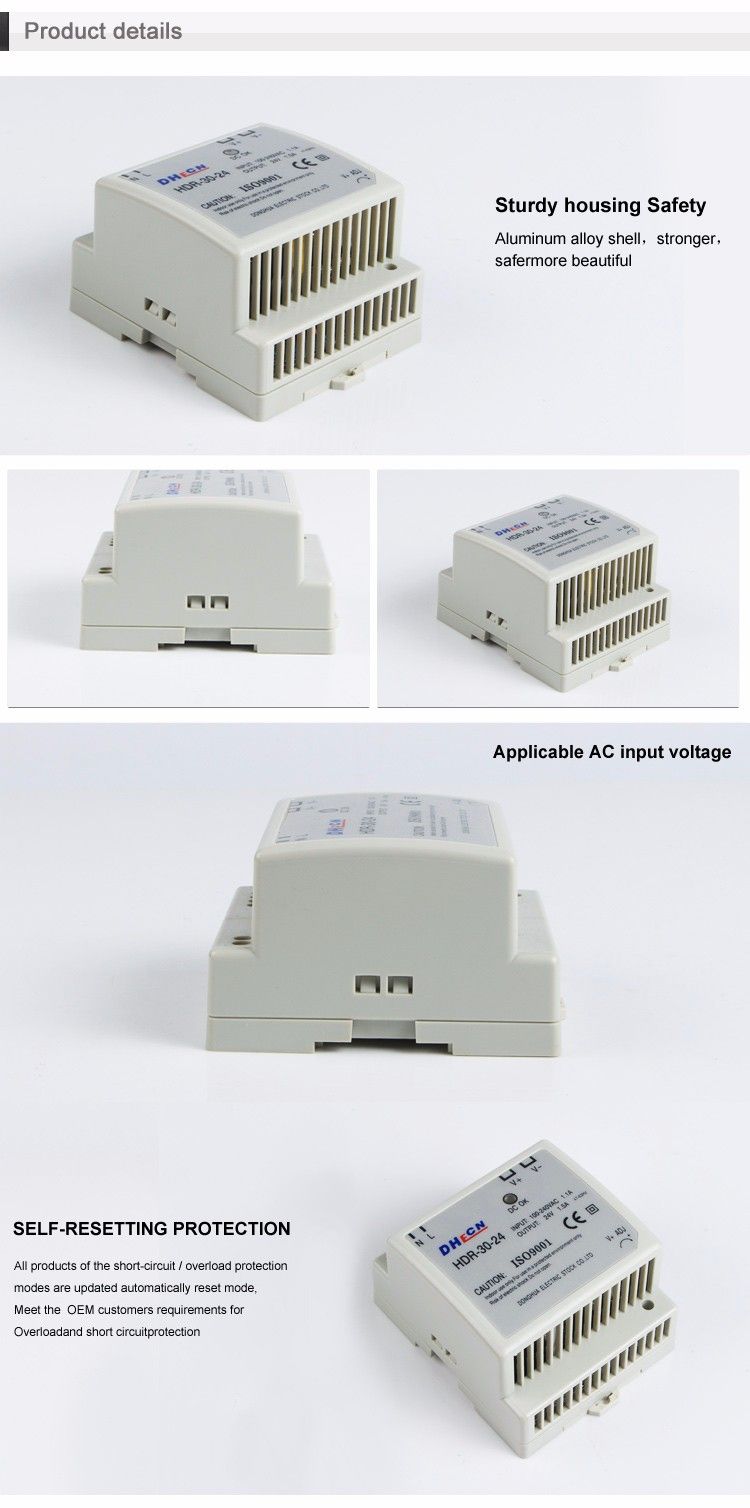

30W Single Output DIN Rail Power Supply
Features:
· Universal AC input / Full range
· Protections: Short circuit/ Over load/ Over voltage
· Cooling by free air convection
· Can be installed on DIN rail TS-35/7.5 or 15
· LED indicator for power on
· 100% full load burn-in test
· 3 years warranty
· Dimensions: 78*93*56mm (W*H*D)
Specification:
1) INPUT
· Voltage Range: 85-264VAC, 120-370VDC; 47-63Hz
· AC Current: 0.88A/115VAC 0.48A/230VAC
· Inrush Current: Cold start 15A/115V 30A/230V
· Leakage Current: <1mA/240VAC
2) PROTECTION
· Over Load: 105%-160%; Constant current limiting, recovers automatically after fault condition is removed.
· Over Voltage: 115%-135%; Shut down o/p voltage, re-power on to recover.
3) ENVIRONMENT
· Working Temp. & Humidity: -20º C~+60º C; 20%~90% RH.
· Storage Temp. & Humidity: -40º C~+85º C; 10%~95% RH.
· Vibration: 10~500Hz, 2G 10min. /1 cycle, period for 60min, each along X, Y, Z axes.
4) SAFETY STANDARDS
· Withstand Voltage; I/P-O/P: 3KVAC
· Isolation Resistance: I/P-O/P: 100MΩ /500VDC
· Safety Standards: Design refer to UL60950-1, TUV, EN60950-1, EN50178
· EMC Standards: Design refer to EN55011, EN55022, EN61000-3-2, -3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3
5) OUTPUT
Type No Output Tol. R&N Effi.
HDR-30-5 5V, 3A ± 2% 80mVp-p 74%
HDR-30-12 12V, 2A ± 1% 120mVp-p 81%
HDR-30-15 15V, 2A ± 1% 120mVp-p 82%
HDR-30-24 24V, 1.5A ± 1% 150mVp-p 83%

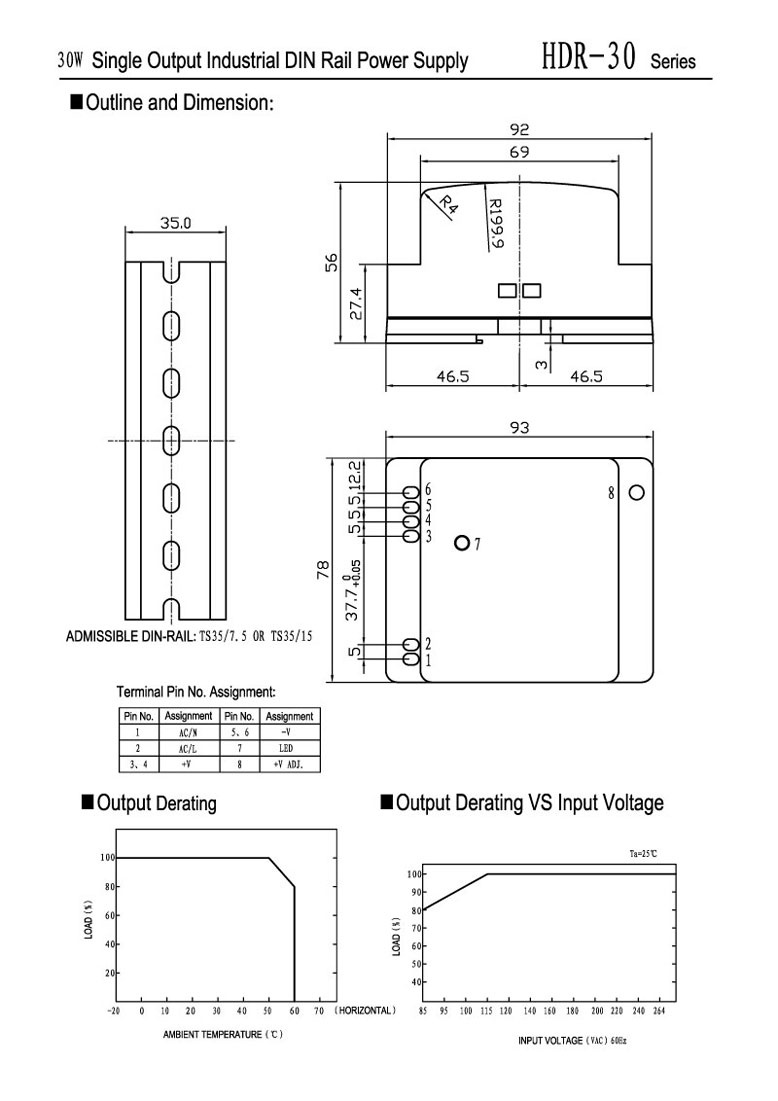

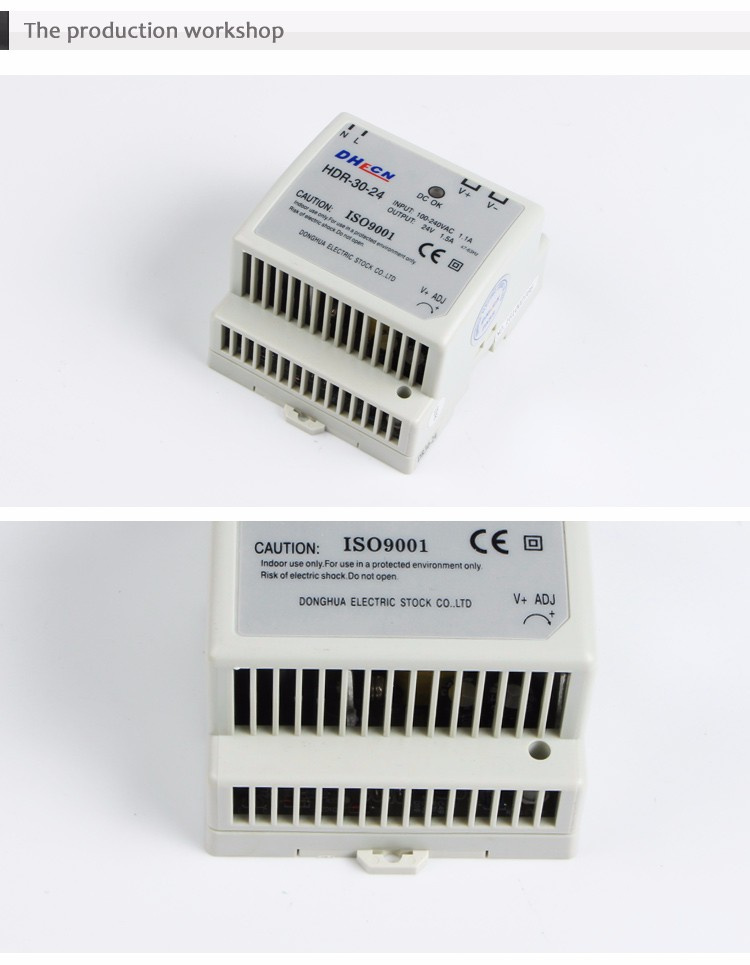

MODEL:HDR-30 Single Output Industrial DIN Rail Power Supply |
·Universal AC input/ full range
·Protections: Short circuit/ Over load/ Over voltage
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
Isolation class 2
LED indicator for power on
100% full load burn-in test
1 year warranty
Dimensions: 78*93*56mm (W*H*D) |
casing No. : H033 |
|
MODEL | HDR-30-5 | HDR-30-12 | HDR-30-15 | HDR-30-24 |
OUTPUT | DC Voltage | 5V | 12V | 15V | 24V |
Voltage Tolerance | ±2% | ±1% | ±1% | ±1% |
Rated Current | 3A | 2A | 2A | 1.5A |
Current Range | 0-3A | 0-2A | 0-2A | 0-1.5A |
Rated Power | 15W | 24W | 30W | 36W |
Ripple & Noise | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p |
DC Adjustment Range | -5%,+10% | ±10% | ±10% | ±10% |
Setup, Rise, Hold Time | 100ms,30ms/230VAC100ms,30ms/115VAC at full load |
INPUT | Voltage Range | 85~264 VAC47~63 Hz; 120~370VDC |
AC Current | 0.88 A/115 V 0.48A/ 230 V |
Efficiency | 74% | 81% | 82% | 83% |
Inrush Current | Cold start 15A/115V 30A/230V |
PROTECTION | Over Load | 105%~160% |
Protection type: Constant current limiting, recovers automatically after fault condition is removed |
Over Voltage | 115%~135% |
Protection type: Shut down o/p voltage, re-power on to recover |
ENVIRONMENT | Working Temp., Humidity | -20ºC~+60ºC;20%~90 %RH |
Storage Temp., Humidity | -40ºC~+85ºC;10%~95 %RH |
Vibration | 10~500Hz,2G 10min/1cycle, period for 60min, each along X, Y, Z axes |
SAFETY | Withstand Voltage | I/P-O/P:3KVAC |
Isolation Resistance | I/P-O/P:100M Ohms / 500VDC |
STANDARD | Safety Standard | Design refer to UL60950-1,TUV EN60950-1,EN50178 |
EMC Standard | Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2,EN61204-3 |
OTHERS | Weight | 0.27Kg |
Packing | 48pcs/14Kg/1.02CUFT |
NOTE | 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
