30W Programmable Constant Current LED Driver with Metal Case
PLD030-1SCF691WB-700 offers digital programmable drivers with wide-range adjustable output current and 108~305Vac universal input.
The output current of this series are programmable up to 0.7A, and designed for 0-10V/PWM/Rset/Clock dimming applications.
Applications
Outdoor & indoor LED lights
LED lights with flexible current settings
Downlights, high bay and low bay lights, spot lights, LED panels
Features
Ultra-deep dimming down to 1%, with dimming-off control
> 50,000 hours lifetime at 75ºC Tcase
> 5 years warranty at 75ºC Tcase
Constant current output
Output current programmable
Compatible with 0(0.1)-10V, PWM, external resistor, clock dimming
Universal input voltage: 108~305Vac
Safety according to UL1310 & EN61347-2-13
UL Class 2 Output
EMC according to FCC Part 15 Class A
Lightning, OVP, SCP, & Open Circuit Protection
Electrical Specifications| Model | PLD030-1SCF691WB-700 |
Output Voltage | 20~50V |
Output Current | 350~700mA |
Dimming
| 0~10V, PWM, External Resistor, Clock |
Dimming Range
| 1~100% |
Current Programmable
| Yes |
Output Power | 30W |
Max. Current Ripple | ±40% |
Voltage Range | 108~305Vac |
Frequency Range | 47~63Hz |
Max. Input Current @ 230Vac | 0.4A |
Max. Input Power | 37W |
Power Factor | >0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load |
Efficiency | 85% |
Max. Open Circuit Voltage | 59.5V |
THD | <20% @ 120Vac/277Vac & 80~100% full load |
Protections | OVP, OTP, OCP, SCP |
Environmental Protection | UL Dry & Damp & Wet, and Type TL |
Working Temperature | -20~+50ºC |
Max. Case Temperature | 90ºC |
Surge Protection | Line to Line 1kV |
Agency Approbations | UL1310 Class 2 |
Electromagnetic Compliance | Per Title 47 CFR Part 15 Class A |
Ansi Surge Type | 1.2/50μs Combination Wave (w/t 2Ω) |
Isolation | Primary to Secondary: 3750Vac / 10mAMax / 60seconds |
Dimension | 136x46x31 mm (5.35x1.81x1.22 inch) Metal Case |
Mounting Length | 126 mm (4.96 inch) |
Overall Length | 136 mm (5.35 inch) |
Weight | 0.21 kg (0.79 lb) |
Life Time | >50,000 hours @ full load, 75ºC Tcase |
* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.
Performance Characteristics

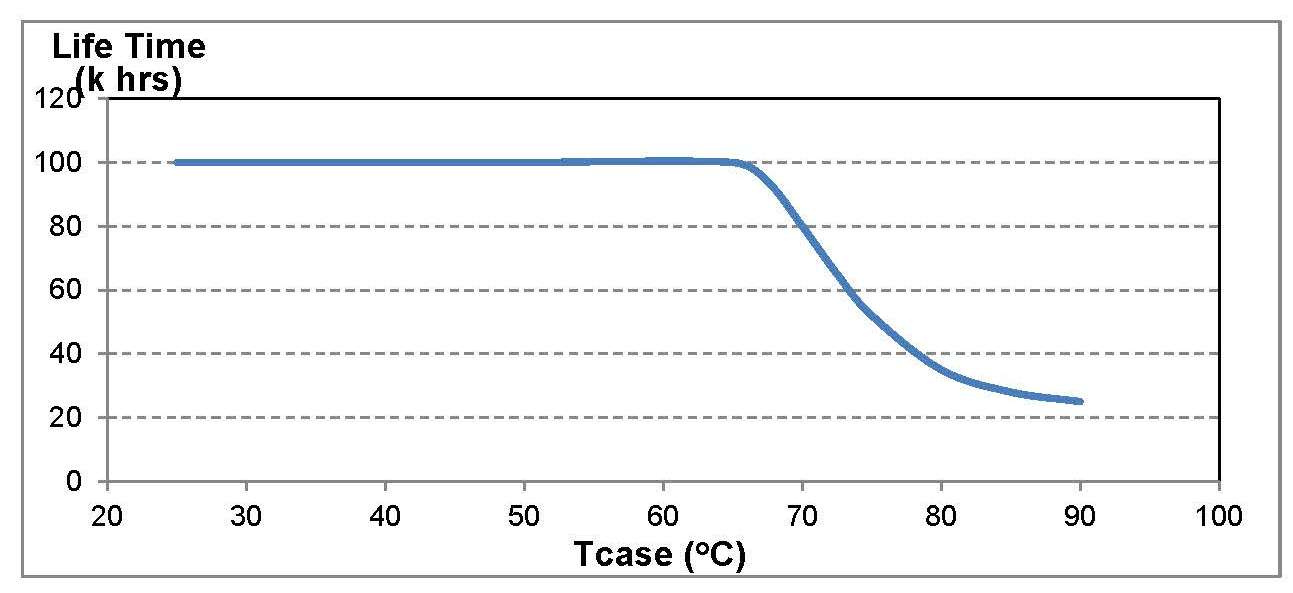

Life Time vs. Case Temperature
Electrical Specifications
I-V Programming Area: Output Voltage vs. Output Current
Electrical Specifications

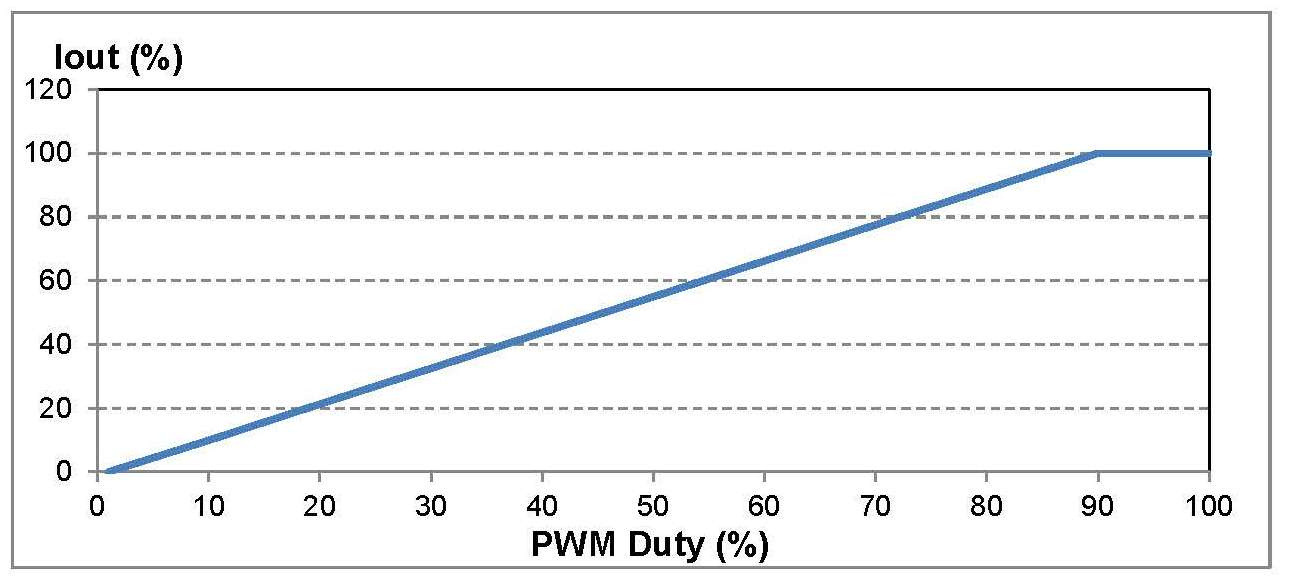

Output Current vs. PWM Dimming Duty Cycle
Performance Characteristics

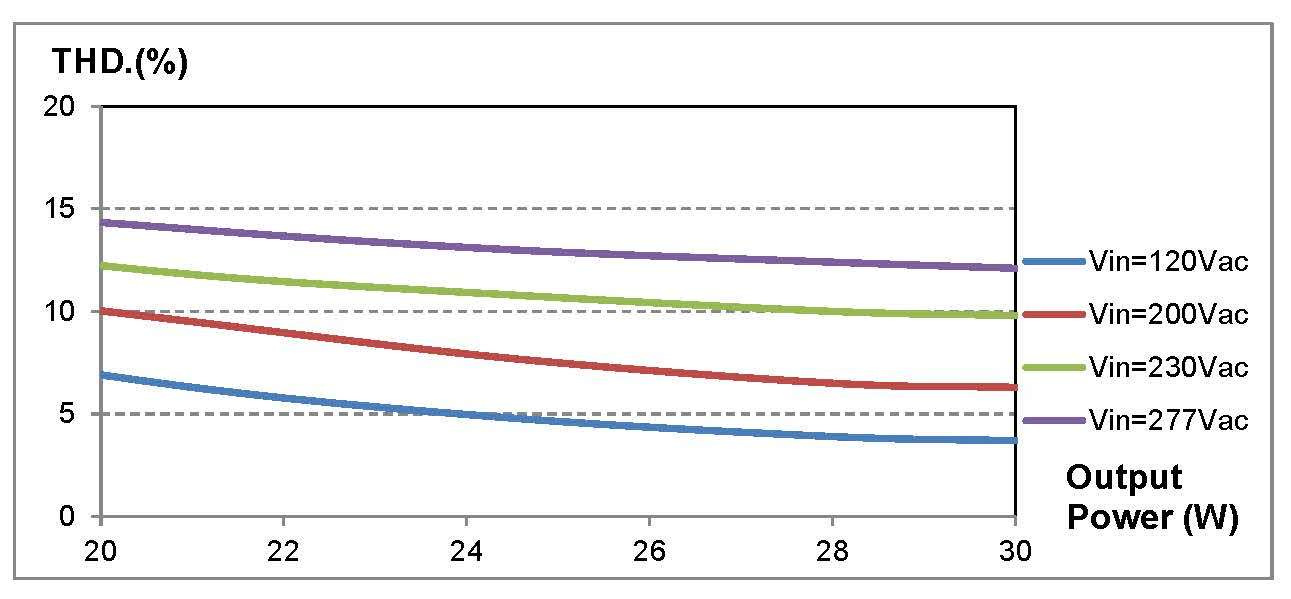

THD vs. Output Power
Mechanical Specification
