| Prod Model: |
YD309 |
| Product: |
30W Type-C Charger |
| Output: |
20V 1.5A/12V 2A/5V 2A |
| Power: |
30W |
| Input: |
DC 100-240V 50/60Hz |
| Weight: |
145g |
| Material: |
ABS+PC |
| Advantage: |
Over Charging Protection |
| Warranty: |
1 Year |
| Certificate: |
Ce FCC RoHS |
| DC Tip: |
USB Type C |
| Usage: |
Phone |
| Output Type: |
DC |
| Connection: |
Plug In |
| Certification: |
Ce FCC |
| Internal Structure: |
AC DC |
| Bluetooth Standard: |
No |
| Brand: |
OEM |
Product Description

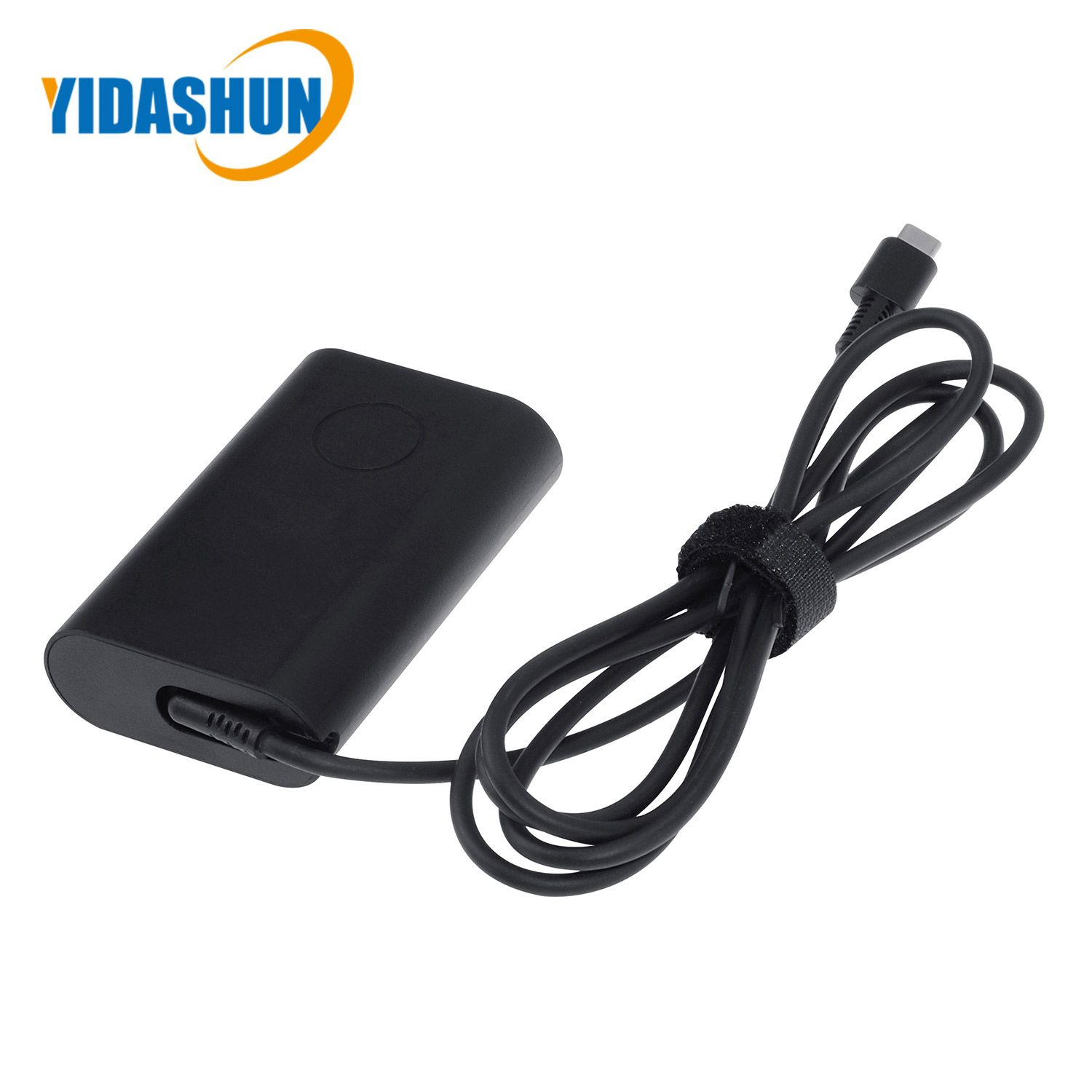

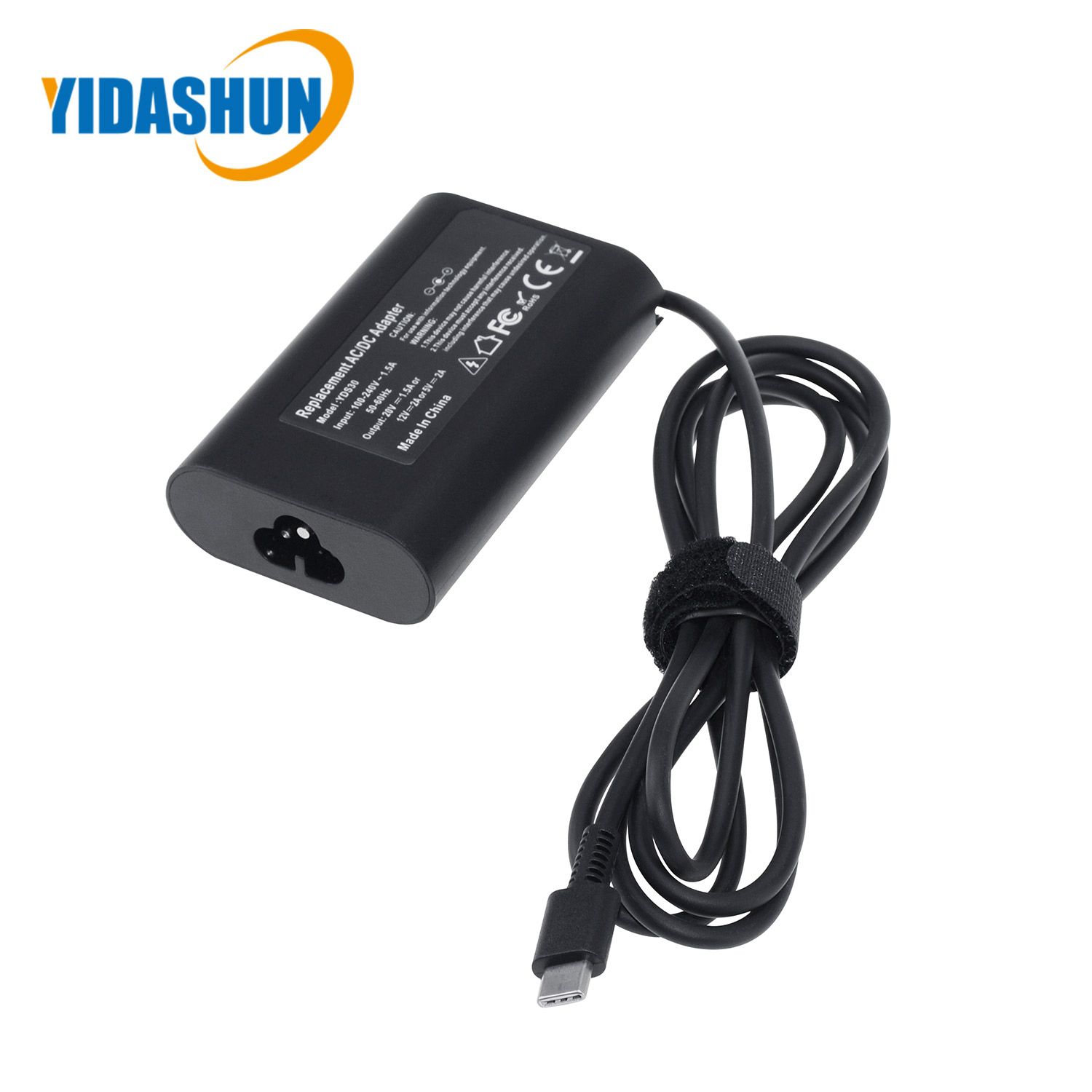

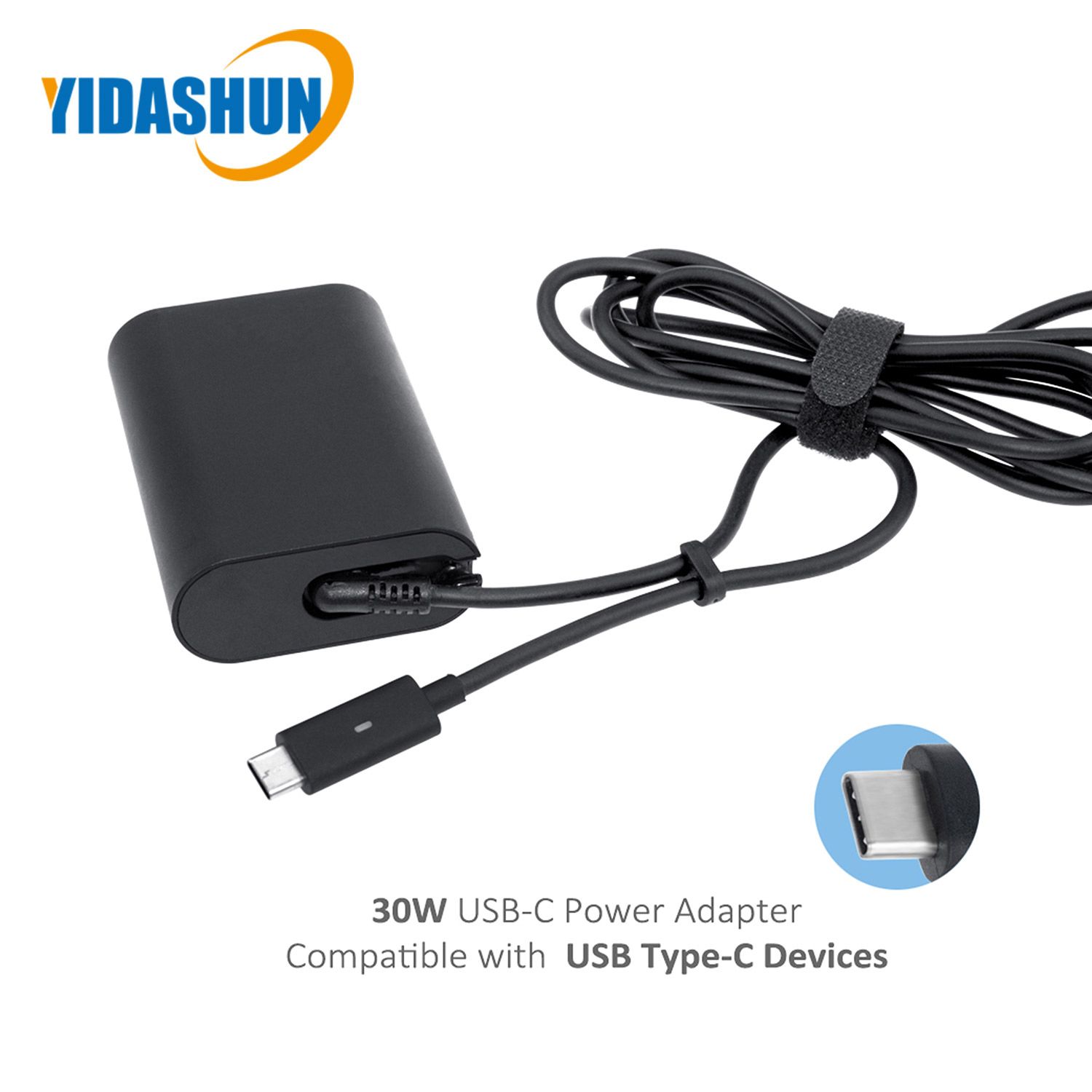

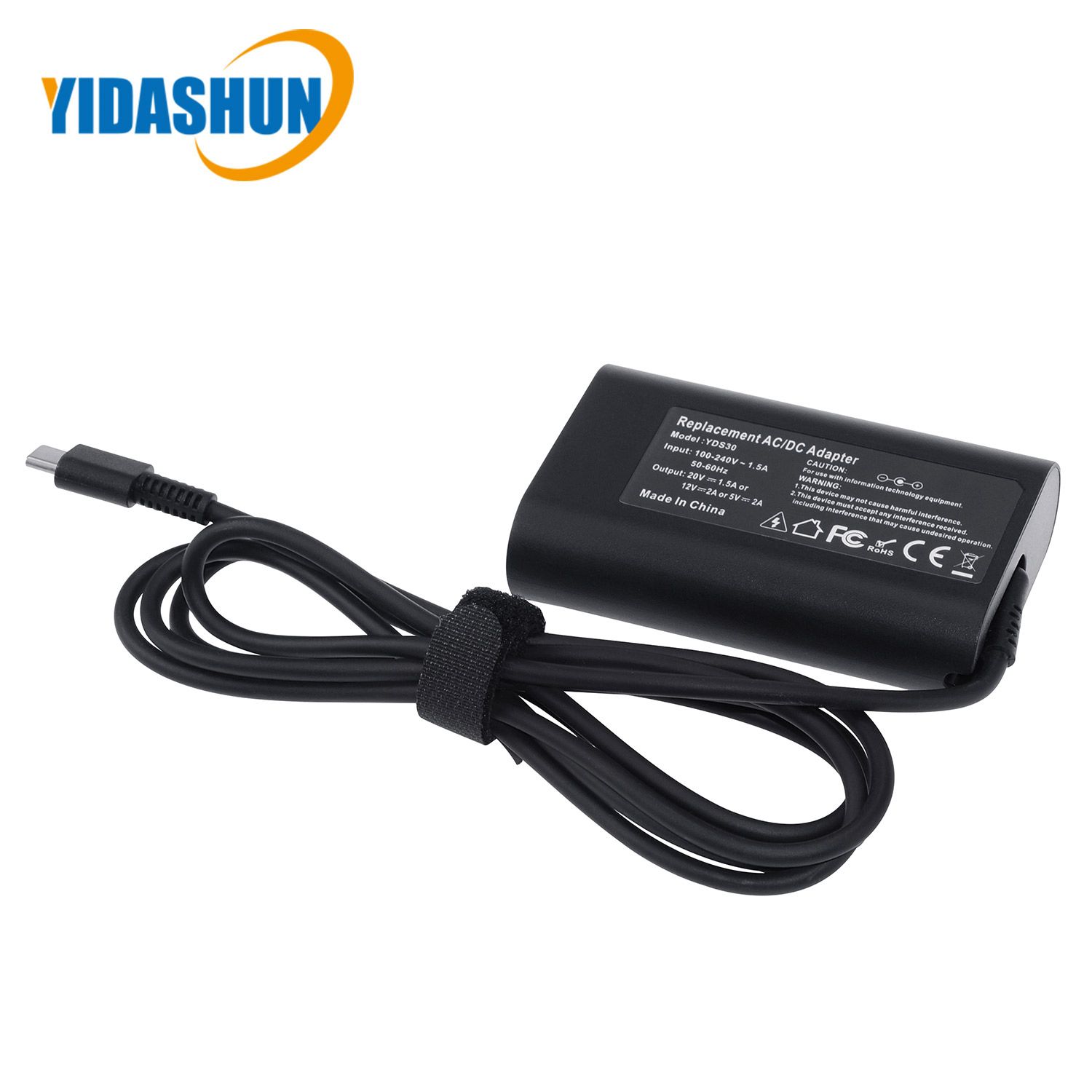

30W USB-C Power adapter Type-c PD laptop charger adaptor for DELL Specification: | Specifications |
| Model No. | YD309 |
| AC Input |
| Nominal Input Voltage | AC 100V~240V |
| Input Voltage Range | AC 95V~265V |
| Input Frequency | 50/60Hz |
| DC Output |
| Output Voltage& current | 20V 1.5A/12V 2A/5V2A |
| Output Power | 30W |
| DC Connector Size | TYPE-C |
| Line Regulation | 2% |
| Load Regulation | 5% |
| Ripple Noise | 180 Mvp-p |
| Efficiency | >85% |
| Output Cable Standard | 0.5mm2, OD 4.0mm Pure Copper |
| Output Cable Length | 2m normally or customized requirement |
| Environment |
| Operating Temperature | 0°C ~40°C |
| Operating Humidity | 5%~95%RH |
| Storage Temperature | -20°C ~85°C |
| Storage Humidity | 5%~95%RH |
| Protection |
| Over Load Protection | Short Circuit Protection |
| Over Current Protection | Over Temperature Protection |
| Certificates |
| CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE |
| Dimensions |
| Adapter Size | 8.7*5.5*2.2 CM |
| Adapter Weight | 145G |
| Inner Box Size | 19*13*4.7 CM |
| Inner Box Weight | 40G |
| PCS/CTN | 50PCS |
| Outer Carton Size | 48.5*32*40 CM |
| Outer Carton Weight | 860G |
| GW/CTN | 10110 |
| Package |
| Inner Box | Normally neutral brown box or customized requirement |
| Outer Carton | Normally neutral standard carton or customized requirement |
| Warranty |
| Guarantee | 30 days |
| Warranty | 2 years |
| Terms and Conditions |
| MOQ | 100PCS for mixed order |
| Payment Terms | T/T, L/C, PayPal, western union |
| Delivery Time | 3-5 days |
| Manufacturing Process |
| 1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping |
| Test Procedures |
1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test
|
We have more models of type c charger for choose as below :
| 29W TYPE C charger for Apple | Output:14.5V 2A or 5.2V 2.4A |
| 61W TYPE C charger for Apple | Output:20.3V 3A/14.5V 2A/9V 3A/5.2V 2.4A |
| 87W TYPE C charger for Apple | Output:20V 4.3A/14.5V 2A/9V 3A/5.2V 2.4A |
| 45W TYPE C charger for HP | Output:5V 9V 15V 3A/20V 2.25A |
| 45W TYPE C charger for ASUS | Output:5V 2A/12V 2A/20V 2.25A |
| 45W TYPE C charger for lenovo | output:5V 2A/12V 3A/20V 2.25A |
| 30W TYPE C charger for DELL | Output:5V 2A/12V 2A/20V 1.5A |
| 45W TYPE C charger for DELL | Output:5V 2A/20V 2.25A |
| 65W TYPE C charger for DELL | Output:20V 3.25A/15V 3A/9V 3A/5V 3A |
| 90W TYPE C charger for DELL | Output:20V 4.5A/15V 3A/9V 3A/5V 3A |
Each one package in our color box, then 50pcs in one carton
Shipping details:
♦ FedEx/DHL/UPS/TNT for samples, Door-to-Door;
♦ By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
♦ Customers specifying freight forwarders or negotiable shipping methods;
♦ Delivery Time: 1-3 days for samples; 5-15 days for batch goods.
Company information:About us:Shenzhen Yidashun Technology Co., Ltd. was founded in 2007.We are a manufacturer specialized in laptop adapter and ac dc power supply for 9 years. And dedicated to producing laptop adapter ,universal laptop adapter,AC DC power adapter, wall adapter , Metal case switching power supply for LED/CCTV ,car charger,USB wall socket, mobile charger&cable and so on. Our products with CE,FCC, ROHS, ERP,CB certificate. OEM/ODM orders are welcome. for more about us, you can visit our official website:www.ydspower.com
Our service:1.10 years focus on charger Research and development, Production;
2.For control the quality ,we have professional test from the raw material to finished products to control the quality seriously;
3.can offer wholesale Factory prices, After-sale guaranteed;
4.Flexible and fast delivery, bulk orders usually delivery within one weeks, General small batch orders can be arranged delivery within 2-5 days,cause we usually have large quantity of PCB in stock;
5. All our high quality adapters with OCP/OVP/SCP/OTP protection;
6.Full power: our charger with full output Voltage/current/Power;
7.Certificate:CE/FCC/ROHS
FAQ:
1.Q: What is your MOQ?
A:we can accept small quantity for your trial order, like 50pcs tec.
2.Q: How about your prices? can you offer better prices?
A: We always offer our customers the most competitive factory price. if the quantity you need is big, we can offer you more discount prices.
3.Q: What's the package of your products?
A:usually brown box or in white box then into carton, we can customized the package as your demands.
4.Q: Can you print our logo on your new cases Or the package?
A: Yes, of course. We can print your artwork designs for example logo, company name, label etc as your request, and the MOQ depend on exact model. You can discuss it with us or send us the original artwork by email in JPG, TIF.
5.Q:Could I get a sample before making order?
A: Our company offers samples for quality test or other business purposes,but we kindly ask you to pay for samples and the freight.
6.Q:What is your production time?
A:Normally for small order 2-5 days,for big order in 7-10 days.
7.Q: How long will it take to deliver the goods?
A:For small order We usually ship the goods by DHL, UPS, FEDEX (take about 3-5 working days to the destination), for big order by sea or by air.
8..Q:What are the terms of payment you offer?
A:T/T, Western Union, paypal or cash.

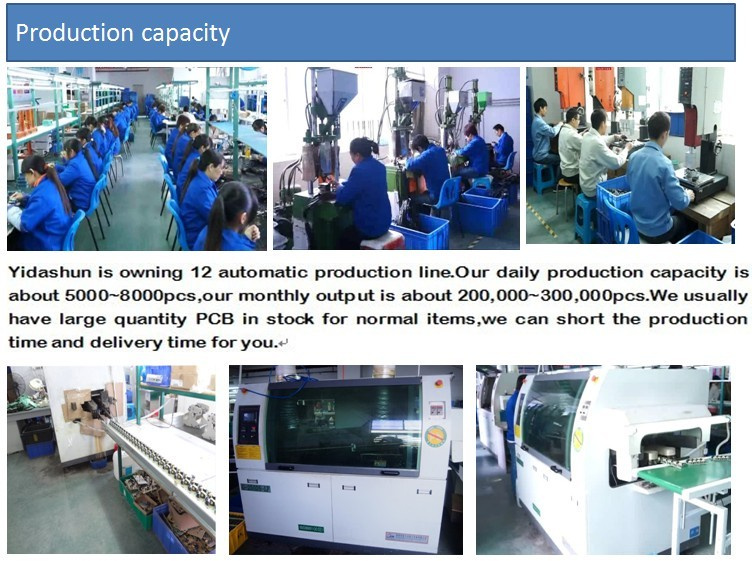

SHENZHEN YIDASHUN TECHNOLOGY Co., Ltd. Shenzhen Yidashun Technology Co., Ltd. Is a high-tech enterprise approved by government, dedicated to the R&D, manufacture and sales of laptop adapters, other AC/DC adapters, universal laptop adapters, swiching power supply and waterproof LED driver. The company is founded in 2007, it has a R&D team with 10 engineers, who can provide the whole solution of power adapters and power supplies for clients; Excellent sales team export our products to European and American countries, Middle East countries, HK, Southeast Asia countries and Oceania. The company is located in shenzhen, there are more than 300 staffs, owning more than 5, 000 square meters of development and production base.
Currently we start new projects selfie stick monopod, USB patch board and USB socket, we make our own special mould and our own color box to make them different in the market! And we offer cost prices to expand the market and support our each client! Welcome to inquiry!
QC Team: A QC team with more than 20 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.
Cercificate: CE, RoHS, REACH, FCC, ERP, CB, GS, TUV, UL, cUL, CCC, PSE
WARRENTY
♥ Normal Production according to eth sample that confirmed by customers or customer's instruction. So please do give us right and confirmed instruction as well as check the sample carefully before you confirm.
♥ Should you need any assistance with product problems or for warranty claims please feel free to contact us. We are here 7 days a week to help. You will receive a prompt reply from us.
♥ If the product specification above is some different from what you required actually, pls kindly let us know the details, we will be pleased to re-offer you as per your requirement asps.
