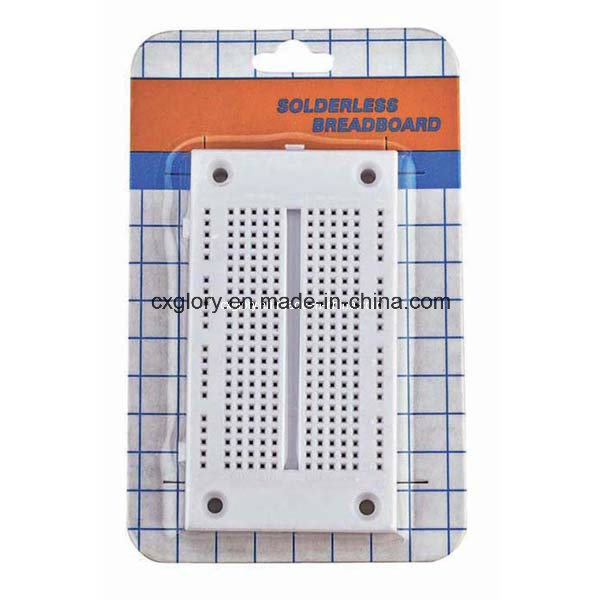

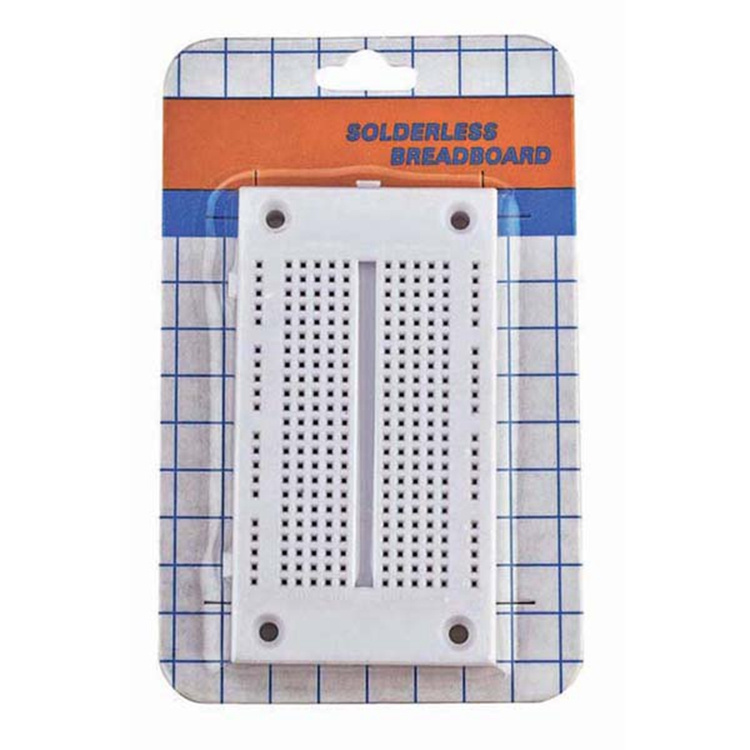

310 Points Solderless Breadboard

Product Name: 310 points solderless breadboard
* 1 Terminal Strips, Tie-point 270
* 2 Distribution Strips, Tie-point 40
* Board size (cm), 8.6*4.6*0.85
Management Certification: ISO 9001: 2008;
Paper Box;
1pc/ set

ABS plastic material
Completely reusable
Coloured coordinates for easy component placement
Phosphor bronze nickle plated spring clips
Accepts a variety of wrie sizes (AWG: 20-29)

Solderless breadboards are commonly used for prototyping because they allow you to quickly build temporary circuits without soldering. Breadboards accept most through-hole parts and up to #22 wire. When you're done or want to change your circuit, it's easy to take your circuit apart. For best results, use solid wires when breadboarding; you'll find pre-cut jumper wire kits and premium jump wires especially convenient. This small board is compatible with the Arduino proto shield and is available in assorted colors:
This 46mm × 35 mm solderless breadboard has 17 rows of tie points, enough for up to two 14- or 16-pin DIP ICs. Although it is difficult to see in the pictures, the rows and columns are conveniently labeled. The board features an adhesive backing and two mounting holes, and tabs allow multiple units to be connected for larger projects. This breadboard is a traditional white; other colors are also available.
