| Prod Model: |
SLT80BLF40 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Slt80blf40 |
| Voltage: |
315V |
| No Load Speed: |
6300rpm |
| Rated Torque: |
0.6n.M |
| Rated Speed: |
5500rpm |
| Rated Power: |
400W |
| Rated Current: |
1.6A |
| Peak Torque: |
1.8n.M |
| Weight: |
2.2kg |
| Length: |
105mm |
| Application: |
Medical Equpiments |
| Operating Speed: |
Constant Speed |
| Excitation Mode: |
Compound |
| Structure And Working Principle: |
Brushless |
| Certification: |
Ce |
| Brand: |
Slt |
Product Description
Parameters:
Rated Speed:5500rpm
No Load Speed:6300rpm
Rated Torque:0.6N.m
Rated Power:400W
Rated Current:1.6A
Peak Torque:1.8N.m
Weight:2.2kg
Length:105mm

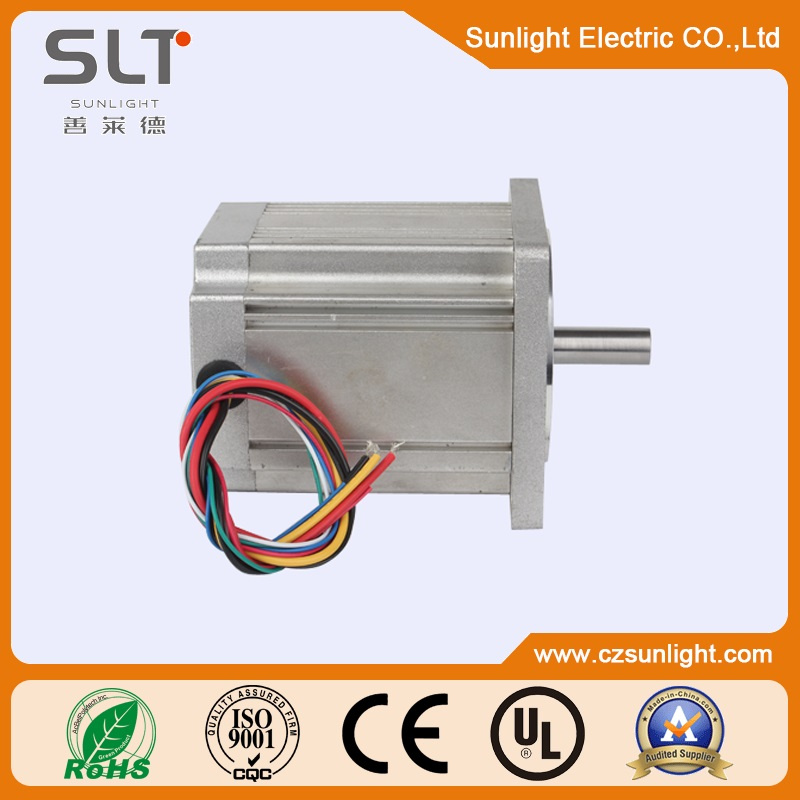

The specification of 315V Industry Mini BLDC Electric Brushless Motor for Tools
| 80BLF-Brushless DC Motor |
| Technique Specification |
| Model | SLT80BLF40 |
| Number of poles |
| 4 |
| Voltage | V | 315 |
| No load speed | RPM | 6300 |
| Rated torque | N.m | 0.6 |
| Rated Speed | RPM | 5500 |
| Rated power | W | 400 |
| Rated Current | A | 1.6 |
| Peak torque | N,m | 1.8 |
| Back-EMF constant | V/KRPM | 34 |
| Weight | Kg | 2.2 |
| Length | mm | 105 |
Advantages of 315V Industry Mini BLDC Electric Brushless Motor for Tools
a: Save cost, price is low
b: Better reliability.
c: Low energy consumption.
d: Speed is steady.
e: Easy to run and adjust the speed.
f: Small size, easy to carry.
g: Application range is super wide.
Applications of 315V Industry Mini BLDC Electric Brushless Motor for Tools
A:Car (Fan,View mirror,wiper blade,car seat adjustment and so on.)
B.Home Applicance ( Electric cooker, Electric mop and other products.)
C.Medical equipments and beauty products.
D.Office products (such as printer, scanner......)
E.Other Fields.
