| Prod Model: |
PG32M395 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Construction: |
Permanent Magnet |
| Commutation: |
Brush |
| Effiency: |
Ie1 |
| Protect Feature: |
Drip-Proof |
| Gear Type: |
Planetary Gear |
| Application: |
Universal |
| Operating Speed: |
Low Speed |
| Structure And Working Principle: |
Brush |
| Certification: |
Ce,RoHS |
| Brand: |
Leison Motor |
Product Description

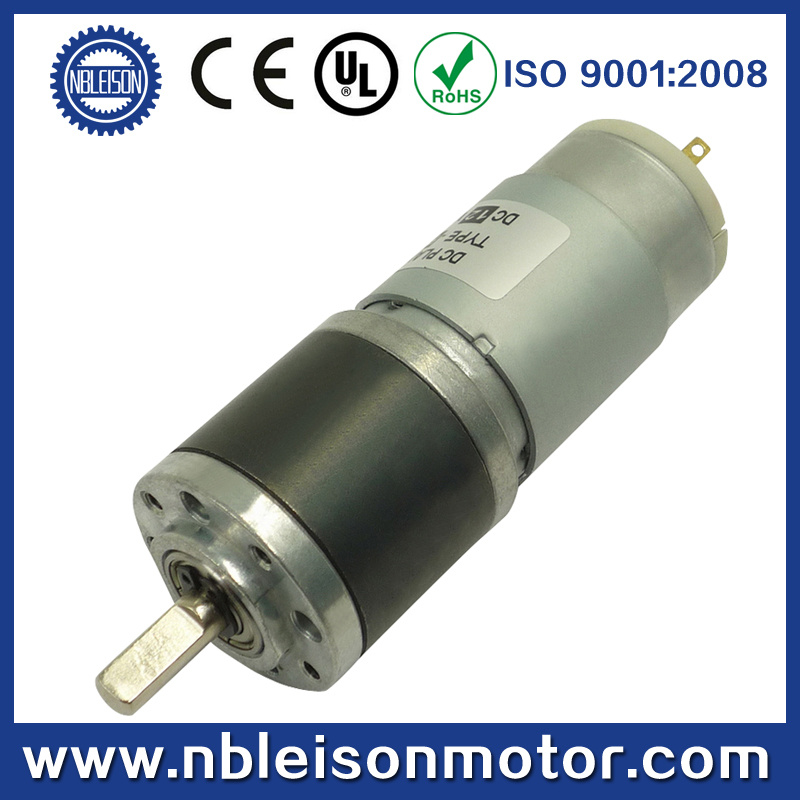

Planetary gearhead dc motor1. Voltage: 12V 24V
2. Speed: 1-1500rpm
3. Torque: Up to 5N. M rated torque

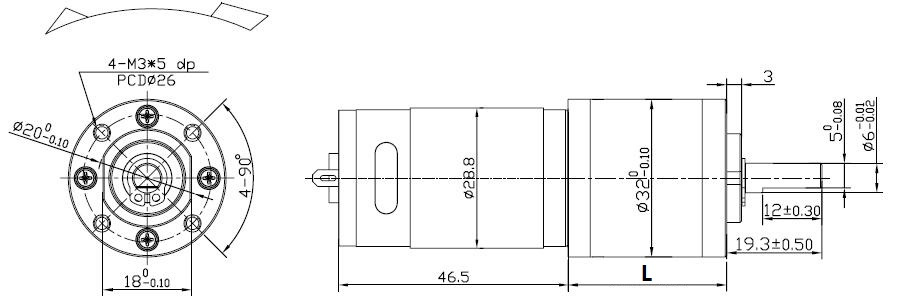

4. Gearbox: 32mm Dia X 22-42.4mm length
Motor length: 51mm
Shaft: 6mm Dia X 15.5mm Length
5. Weight: 150-200g/PCS(approx)

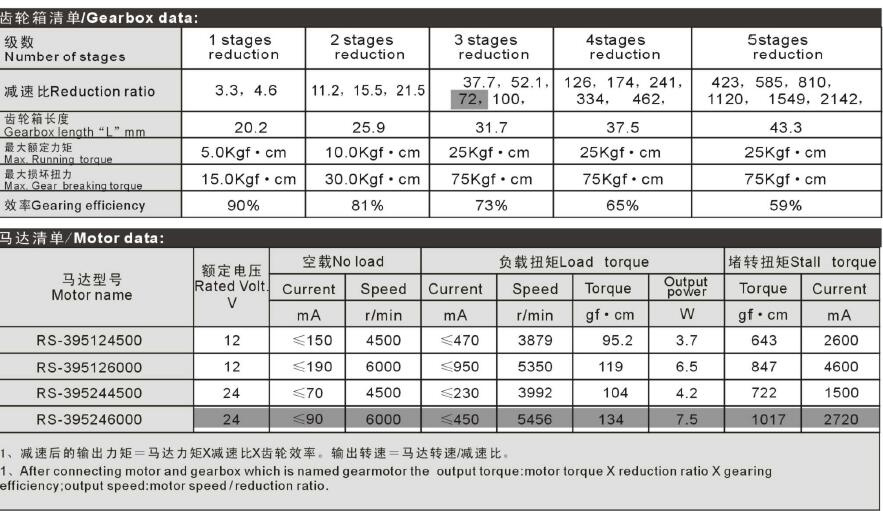

Specification:
Motor's voltage, speed, torque, shaft can accept customizied requirment after evaluation. The datasheet and price range only typical data for reference, Gear motor's price are usually decide by Motor's reduction ratio and torque., Please fell free to contact with me if youwant this motor Specificaton or Drawing.About LEISON MOTOR Company
Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,

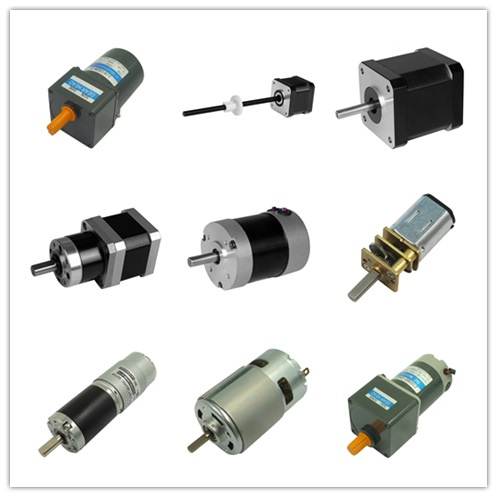

Our Product range are:
DC Brush motor: 6-130mm diameter, 0.1-1500W output power.
Brushless DC Motor: 28-110mm, 5-800W output power
DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power
DC Planeary Gear Motor: 10-82mm diameter, 0.1-200W output power
Stepper Motor: NEMA 08 to NEMA 43, Can contact with gearox and lead screw
AC Gear Motor: 42 to 104mm diameter, 6-200 output power
Compare with other competitors, Our advantages are:
1) High Quality Guarantee: 11 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS certificates.
2) Experience: Till Augest, 2016, We had export our goods to 77 different countries like US, Germany, UK, Japan, Brizal,Russia and so on.
3) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.
4) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don't need way about can't not find the person when have agent things.
- 5 MOQ: Small Orders Accepted
6) On Time Delivery: 7-15 working days lead time for normal motors, Custmoized motor lead time are also less than 20 working days.
7) Customized service: Our experienced R&D team can support customized motor if necessary.

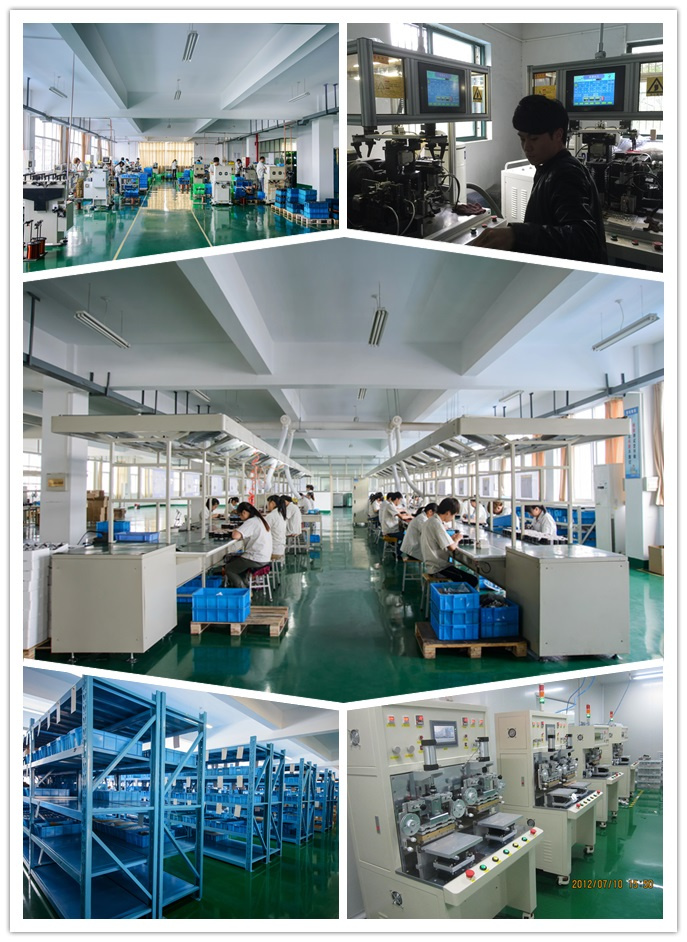

Production Equipment:
Customer Visit and Fair
Certificates
FAQ
1. Can you make the motor with customized requirement ?
YES. We have experienced R&D capability and great engineers, Their experience and innovation capability can support customized project.
2.Can you provide the samples?
YES. We can provide the samples, The delivery time is about 7-15 days according to which kind of motor you want
3.What is your MOQ?
It's accordingly to the motor type you order, Our MOQ for gear motor can even 1pc.
4. Do you have the item in stock?
Sorry we don't have the item in stock, , Motor have hundreds of different requirement such as voltage, speed, torque, shaft dimension and so on, So it's hard to prepared samples
5. Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.
6.How to ship to us?
TNT, DHL,UPS or FEDEX,AMERX or other express company as you want. .
7.How to pay for the order ?
We accept T/T,Western union or paypal or cash.
8. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
9. Can I come to your company to visit?
YES, you can come to our company to visit at any working days, Welcome to visit our company.
10. How do contact us ?
Please send an inquiry or send me a email directly, My email address can be find in our company website
Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,
Our Product range are:
DC Brush motor: 6-130mm diameter, 0.01-1500W output power.
DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power
DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power
Brushless DC Motor: 28-110mm, 5-1000W output power
Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw
AC Gear Motor: 49 to 100mm diameter, 6-140 output power
Compare with other competitors, Our advantages are:
1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.
2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.
3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.
4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.
5) Customized requirement: Beside normal products, We also design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).
Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
