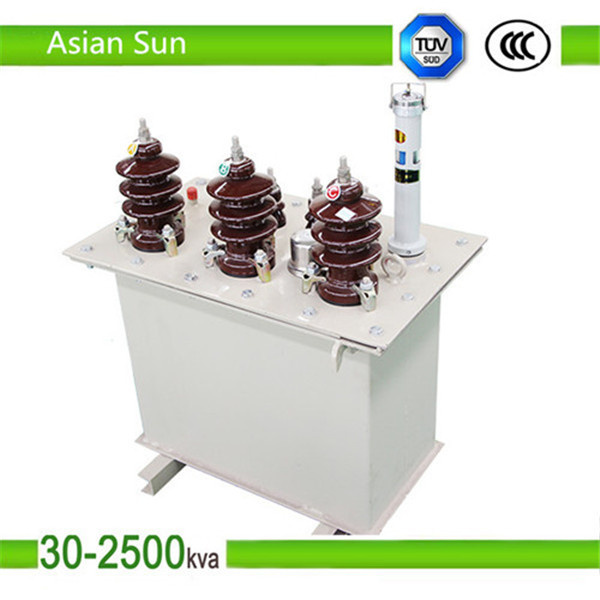

33/0.4kv Oil Immersion Overhead Distribution Transformer Priceprice
1.Product descriptions
Our transformers sell well all over the world, with buyers from Ethiopia, Malaysia, Thailand, Kenya, Mozambique, Congo, Rwanda, Pakistan, South Africa, etc.We will provide more high-quality products and services for you in the future!
1.Primary Voltage:6kv,11kv,15kv,22kv,33kv,35kv,40.5kv
2.Second Voktage:0.4kv
3.Tapping:± 5%, ± 2× 2.5%
4.Frequency:50Hz; 60Hz
5.Connection:Yyn0, Dyn11,etc
| 11kv Oil Cooled Oil-Immersed Power Transformer (250kva) |
| Brand Name: | Asian Sun |
| Model Number: | 10KV S11-M-30~1600 |
| Usage: | power transmission,distribution of Industrial |
| Phase: | Three |
| Capacity : | 30-1600kva |
| Coil Structure: | Toroidal |
| Coil Number: | Auto Winding |
| Type: | Oil-type |
| Vector group: | Dyn11 / Yyn0 |
| Tapping range: | ±2*2.5% or ±5% |
| Short-circuit impedance : | 6.5% |
| Winding material: | Aluminum or Copper |
| Standards: | ISO9001,CCC,TUV,CQC |
| Frequency: | 50/60Hz |
| Voltage: | 6kv 10kv 11kv Customized |
| Application: | Indoor |
| Package: | plywood case |
| Export Markets: | Global |
| Port: | Qingdao |
| Advantage: | Best quality with best price |
SERVICE ENVIRONMENT
Ambient temperature:
Highest maximum +55°C
Lowest minimum -10°C
Maximum yearly average +30°C
Maximum daily average +40°C
Altitude:<3000m
2.Our advantage :
Safe, no pollution, high mechanical strength, short-circuit withstanding ability, compact structure , light weight. low partial discharge, Excellent anti-short circuit ability ,strong overload ability , no lifting cover at site, free maintenance Final test quality control
1) Low loss
2) Low noise
3) High efficiency
4) Low partial discharge
5) Strong mechanical strength and short-circuit withstand ability .
6) Operation reliability
7) Easy / Free maintenance
8) Pretty outline and compact structure
9) 100% guaranteed no leakage
10)Production process quality control
11) Low winding temperature rise
12)Good distribution characteristics for impulse voltage
13)Eliminate the transformer oil flow electrification
14)Effectively prevent the core multipoint earthing and iron chip of the short circuit from the accident.
10/0.4 KV Technical Data Sheet
3. Main technical data :
| 10kv S11-50-1600 Series All Sealed Oil-immersed Transformer Technical Data |
Rated Capacity
(KVA) | Rated Voltage | Connection Symbol | No-load Loss
(KW) | No-load
Current
(%) | Short
Circuit Impedance
(%) | Weight(KG) | Boundary
Dimension (mm) | Track
Gauge
(mm) |
H.V.
(KV) | M.V.
(KV) | L.V.
(KV) | Body | Length |
| S11-M-30 |
6
6.3
6.6
10 | | 0.4 | Yyn0
Dyn11 | 0.10 | 2.1 | 4 | 195 | 680 | 400 |
| S11-M-50 | 0.13 | 2 | 260 | 760 | 400 |
| S11-M-63 | 0.15 | 1.9 | 280 | 760 | 400 |
| S11-M-80 | 0.18 | 1.8 | 335 | 1000 | 550 |
| S11-M-100 | 0.20 | 1.6 | 395 | 1030 | 550 |
| S11-M-125 | 0.24 | 1.5 | 410 | 1050 | 550 |
| S11-M-160 | 0.28 | 1.4 | 510 | 1070 | 550 |
| S11-M-200 | 0.34 | 1.3 | 590 | 1135 | 550 |
| S11-M-250 | 0.40 | 1.2 | 730 | 1200 | 550 |
| S11-M-315 | 0.48 | 1.1 | 840 | 1300 | 550 |
| S11-M-400 | 0.57 | 1.0 | 1015 | 1330 | 660 |
| S11-M-500 | 0.68 | 1.0 | 1190 | 1400 | 660 |
| S11-M-630 | 0.81 | 0.9 | 4.5 | 1475 | 1555 | 660 |
| S11-M-800 | 0.98 | 0.8 | 1760 | 1785 | 820 |
| S11-M-1000 | 1.15 | 0.7 | 1875 | 1930 | 820 |
| S11-M-1250 | 1.36 | 0.6 | 2285 | 1995 | 820 |
S11-M-1600
| 1.64 | 0.6 | 2720 | 2035 | 820 |

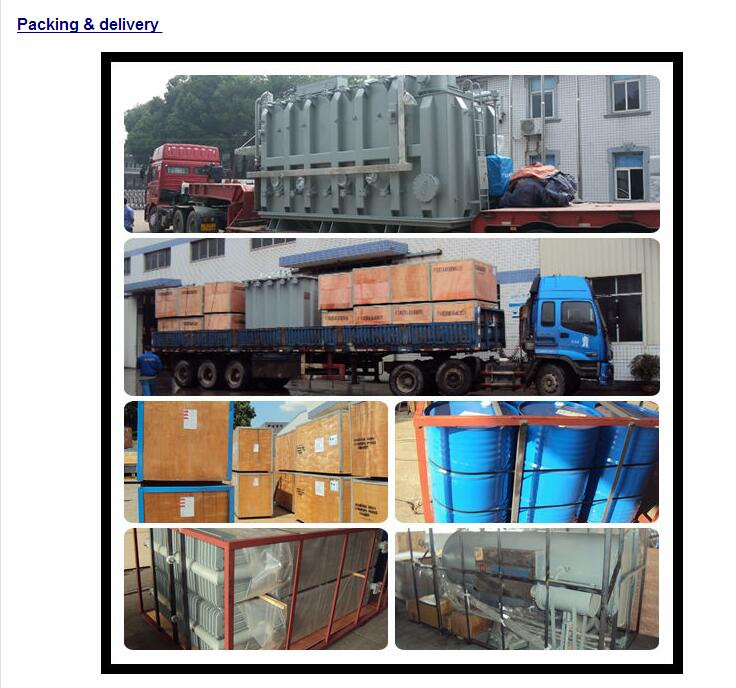

4.Packaging & Shipping
| Low voltage products: | 7 days |
| Medium voltage products: | 7 days |
| High voltage products: | 7 days |
| Payment: | T/T or L/C |
| Port: | Shanghai |
| Packing: | Plywood case |
5.Our Services
1.Your inquiry related to our product & price will be replied within 24 hours
2.Well-trained & experienced staff are to answer all your inquiries in English
3.Working time: 8:00am ~17:45pm, Monday to Saturday(UTC+8)
4.Perfect after-sale service, quick reponse
5.Your business relationship with us will be confidential to any third party
6.Contact with us :
Ms.Bella
008615203796401

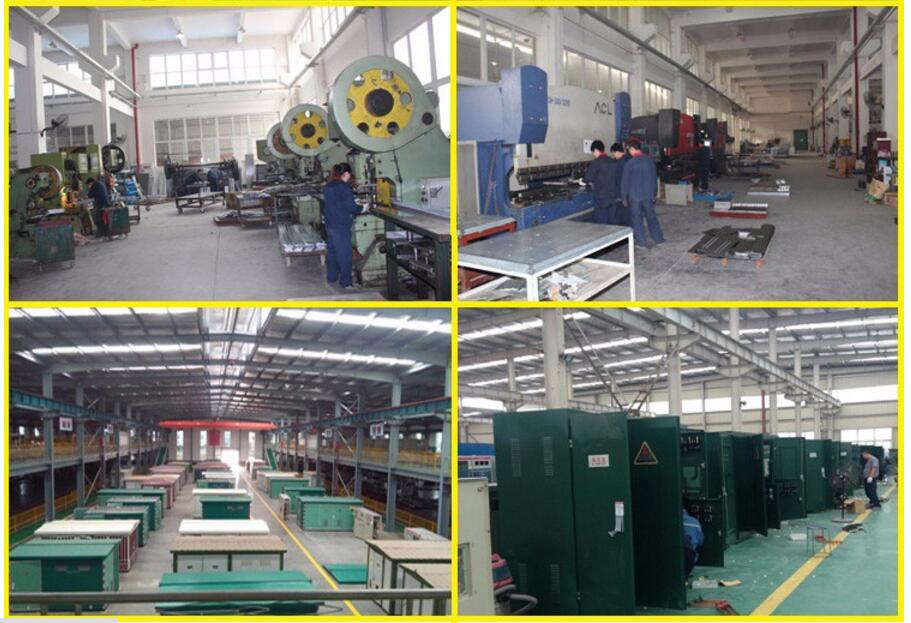

Started in year 2006, Luoyang Asian Sun Group - formerly known as 'Luoyang YaRi'- was a small factory with only tens of employees back then, but after years of growing and developing, now we are a group company with 5 branch companies, with more than 800 employees including 100 engineers and technicians, and with registered capital 410 million RMB. Our factories are located in county Yichuan, Luoyang, Henan, China, and our headquarters are in the beautiful historic city Luoyang. Totally we have 20, 000 square meters area for production and management, with fixed assets valuing 960 million RMB.
Our main products are power transformer, ABC cable, ACSR, AAC, Aluminum rod, PV bracket, screw pile, power cable, and aluminum bar etc. We also carry on projects of engineering, electrical installation and other general contracting. Our research, production and management are strictly in accordance with the ISO9001 quality system, ISO14001 environment system, OHSAS18001 occupational health and safety management system, the EU TUV, etc. The quality assurance is carried out in every aspect of design, material selecting, production, testing, inspection and management.
At home, we have reached strategic cooperation agreements with State Grid Corporation of China, GD Solar Co., Ltd., Huaneng China, Datang Corporation, China Power Investment Energy Conservation and Environmental Protection Group, and other large state-owned enterprises. At abroad, our products have been exporting to Russia, Middle East Asia, European Union, South America, Africa and other parts of the world.
Our continuing growth and success have been the direct result of the excellent word-of-mouth we consistently earn from both our new and established clients. Thinking of others' benefit and win-win cooperation is the core idea of our company culture. Perfection is not easy to achieve, but we chase it and we can catch excellence. Our excellence is the glamour which brings the good quality and service into every clients.
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
