As the professional power transformer manufacturer, Pearl Electric design and manufacture various types of dry-type power transformer. The dry-type transformer manufactured by Pearl Electric features low noise, low loss and low partial discharge. With excellent structure, superior materials, scientific design, strict production technology and advanced testing method. Product catalogues are available upon requirement.
Pearl Electric boasts an experienced R&D team of 65 talented engineers, whose main duties are to design the contracted and customized products upon customer's special requirements. With this team of engineers, Pearl Electric is capable of respond to customer's inquiry at first time and also ensures the accurate product quotation.
Due to different power grid system in local countries, most oversea transformers must be designed and calculated before final accurate quotation. With this team of professional engineers, Pearl Electric could give a quick and accurate quotation, thus to meet end-user's application requirements.
Also due to the above reasons and during your inquiry, please try to give product specifications as detailed as possible, thus to ensure the actual product design suit to your practical requirements. |
Features & Advantages

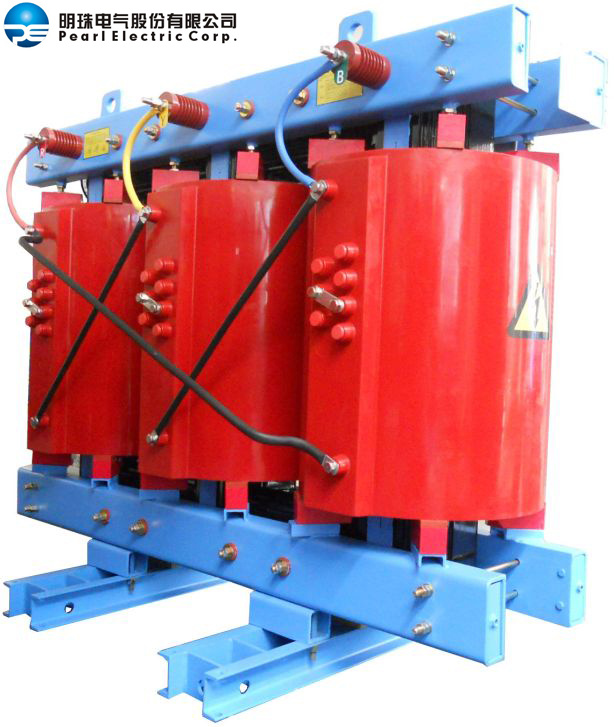

The epoxy resin casting dry-type transformer manufactured by Pearl Electric is a type of transformer with low noise, low loss and low partial discharge. With excellent structure, superior materials, scientific design, strict production technology and advanced testing method, the transformer also has the following advantages:
1. Self-extinguishing and inflaming retarding, fire-proof and explosion-proof, pollution-free and no toxic gas being generated.
2. Excellent damp-proof performance, capable of working under 100% relative humidity and other harsh conditions, with no damp-removing measures needed.
3. Thin resin structure realizes chap-free surface and excellent heat-dispersion performance.
4. Great overload capability, capable of operating continuously under 110% overload conditions and in case of air forced cooling, operating continuously under150% overload conditions.
5. Nice appearance, small-size, less installation space occupation and low engineering cost.
6. Each performance index and technical specification excels those specified in China GB, international IEC or industrial standards.
Core
The core is manufactured with high quality cold rolled grain-oriented silicon steel of high magnetic conductivity. 45° mitring and 5-steps overlapping structure is adopted for the core design, thus to greatly reduce no-load loss and no-load current. To precisely calculate resonance frequency and intensity and avoid cavity resonance generated by the core structure during operation, simulation analysis is carried out for core mould design. Flexible connections are made between core and coils, core and bogie. With these measures adopted, the noise level is reduced by 10~15dB compared with the international standard.
HV winding
HV winding is manufactured with high quality copper wire, reinforced with glass fiber and being casted with epoxy resin at vacuum state with pressure, having the resin fully impregnated into the coils in the most professional imported equipment. Therefore, product's partial discharge is especially low, for example, transformer of 10kV-level has a partial discharge less than 5 pC. During the HV winding design, rational structure is adopted to improve the electric distribution. With the lighting impulse wave simulation calculation and analysis being carried out with special auxiliary software, product's anti-lightning impulse capacity is greatly improved.
LVwinding
LVwinding (with the rated power equal to or higher than 400kVA) is manufactured with high quality foil conductor, resulting in excellent ampere-turn balance, low transverse magnetic flux leakage and higher anti-short circuit capability. By designing reasonable air conduit in the windings to increase the heat-dispersion surface, transformer's temperature rise is effectively controlled and the overload capacity is greatly improved.
Protective enclosure
Attractive and wearing-resistant protective enclosures are available to provide additional protection to transformer, and the protection level could be IP20, IP23 or higher. The material is stainless steel plate, aluminum alloy plate and other suitable materials. IP20 enclosure provides protection against the entrance of foreign objects with diameter exceeding 12mm and could withstand accidental shock. IP23 enclosure, in addition to functions of IP20 enclosure, also provides protection against rainfall at a vertical angle of less than 60°. But the IP23 enclosure will reduce transformer's cooling capacity by about 5%~10%, therefore this must be taken into account when selecting enclosure for the transformer. Cable support is supplied for HV(LV) incoming (outgoing) connections from bottom of enclosure.
Executed standards
IEC60076-11, DIN42523 |
