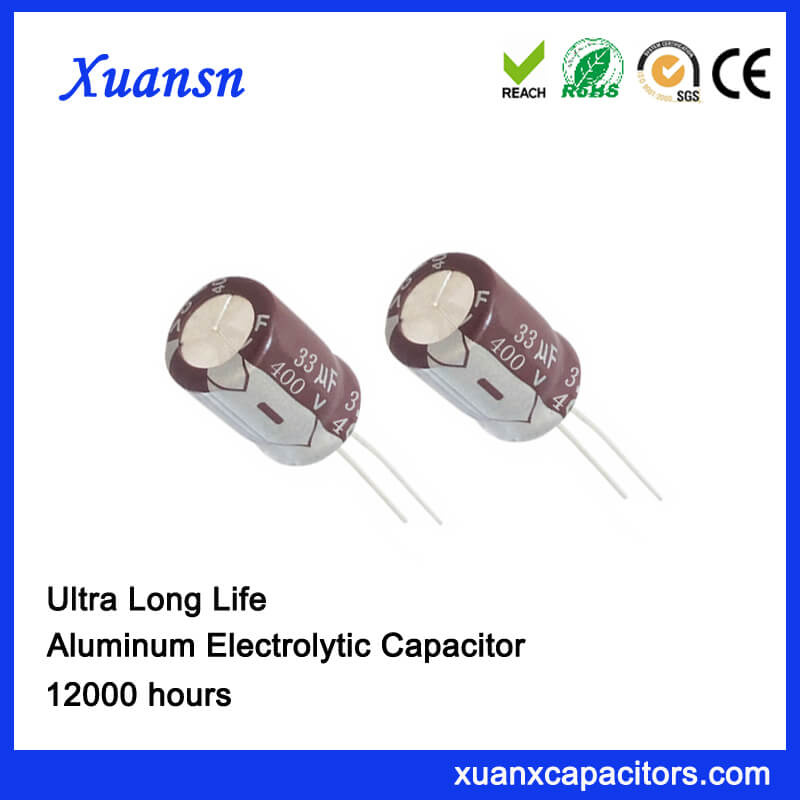

105°c Long Life 12000hours 33uf 400v Radial Aluminum Electrolytic Capacitor- 33uf 400v long life radial aluminum electrolytic capacitor
- Load life of 12000 hours at -40 ~ +105°c
- Size: 16*30mm
- Rated Ripple Current:640mArms
- Offer OEM/ODM services
- Provide Free Sample

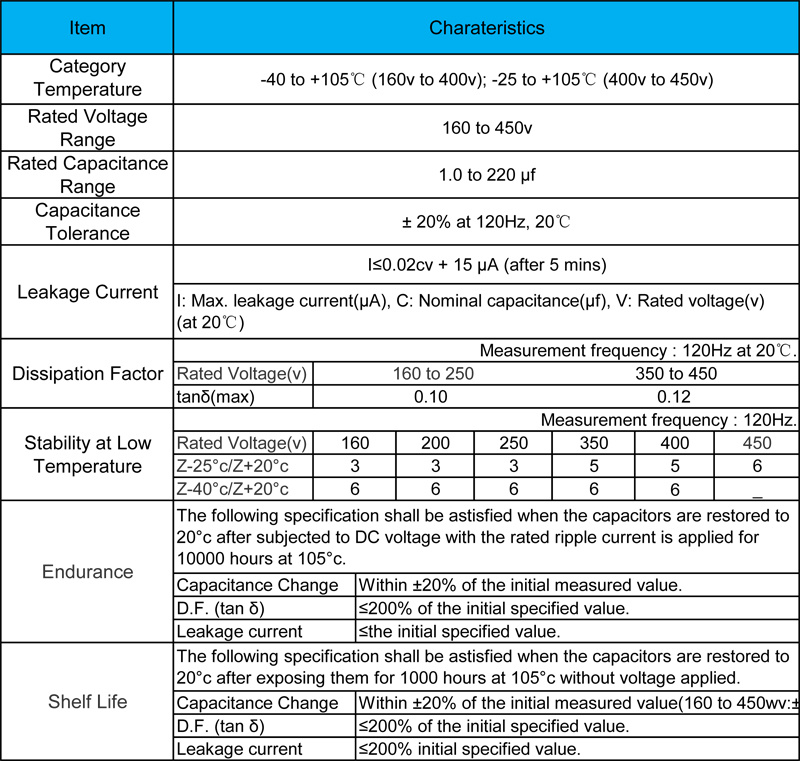

33uf 400v Radial Alulminum Electrolytic Capacitor is our 12000hours long life series. The radial alumium electrolytic capacitor is suitable for LED power supply, , waterproof power supply, street lamp power supply, mining lamp power supply, ballast and household appliances.Specification:
Frequency Coefficient:| Freq.(Hz) | 120 | 1k | 10k | 100k |
| 160v~250v | 0.55 | 0.85 | 0.90 | 1.00 |
| 350v~450v | 0.50 | 0.80 | 0.90 | 1.00 |
Temperature Coefficient:| Temp(ºC) | 10 | 60 | 70 | 85 | 105 |
| Factor | 2.4 | 2.1 | 1.78 | 1.65 | 1 |

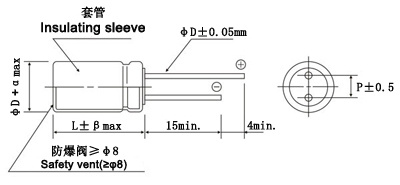

Dimensions(mm)
| ΦD | 8 | 10 | 13 | 16 | 18 | 22 |
| P | 3.5 | 5.0 | 5.0 | 7.5 | 7.5 | 10.0 |
| Φd | 0.5 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 |
| β | 1.0 | 2.0 |
| α | 0.5 | 1.0 |

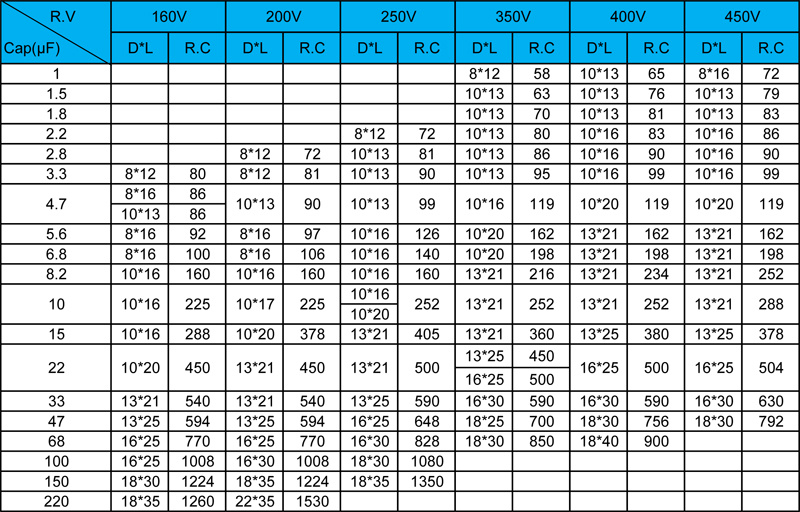

Standard Size(at 120Hz, 105°c):
Rated Ripple Current: mAmrs, 105oC, 100kHz.
Certifications:

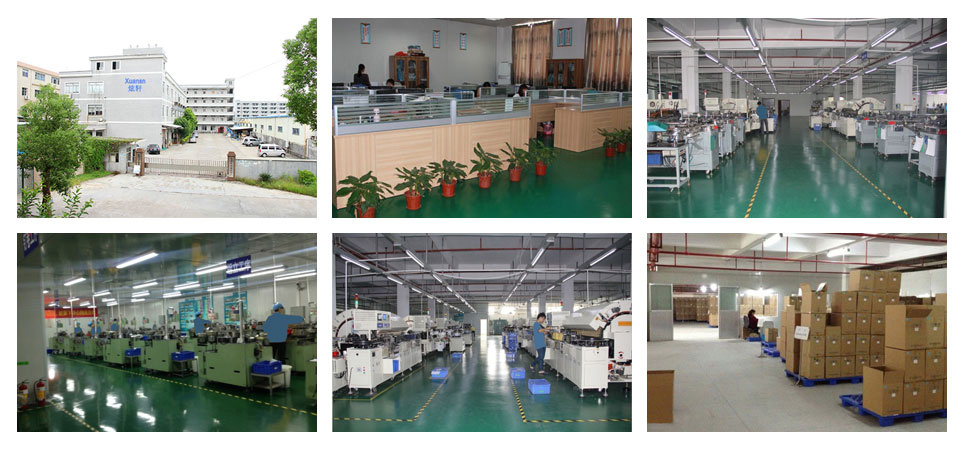

Factory Show:
Our advantage:- We have a sound raw material cooperation system and cargo inspection mechanism.
- Products with high stability, high temperature, small size, small tolerance and so on.
- Product tolerances are strictly controlled between -15% to -10%.
- We have the world's most advanced production equipment, and improve the management process.
- We can provide custom design of your needs and provide free sample for you.
- Our products comply with the RoHS Directive and the factory conforms to the ISO 9001 management system.
