350W 12V Switching Power Supply with Ce and RoHS

Name: 350W 12V Switching Power Supply with Ce and RoHS
Brand: all-electronics-online.com
SKU: 820071805
Availability: InStock
Rating: 4.9 (95 reviews)

Price:	US $ 12-15/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-350W-12V
Output Type:	Single
Output Power:	301 - 400W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	RoHS
Warranty:	Lifetime Warranty
Brand:	Waw

Product Description

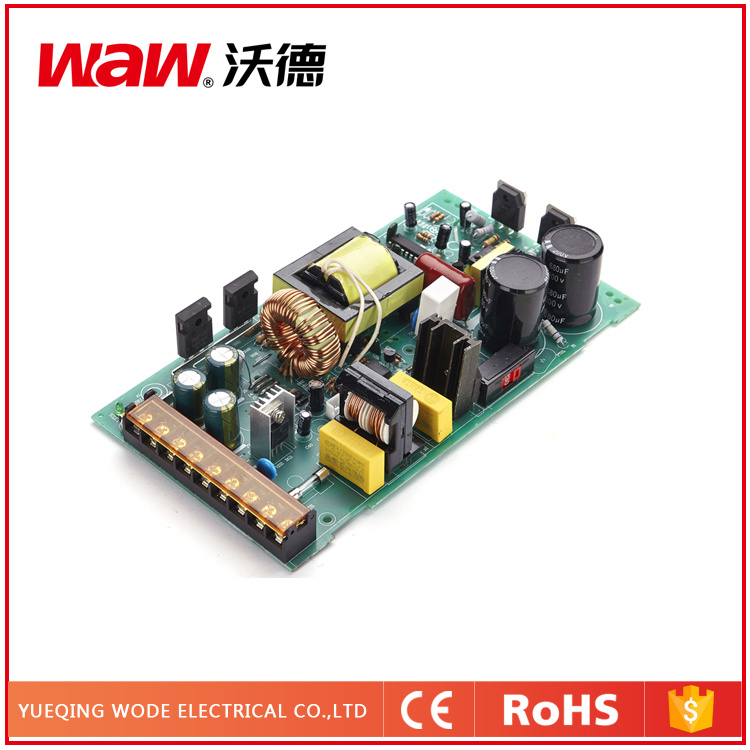

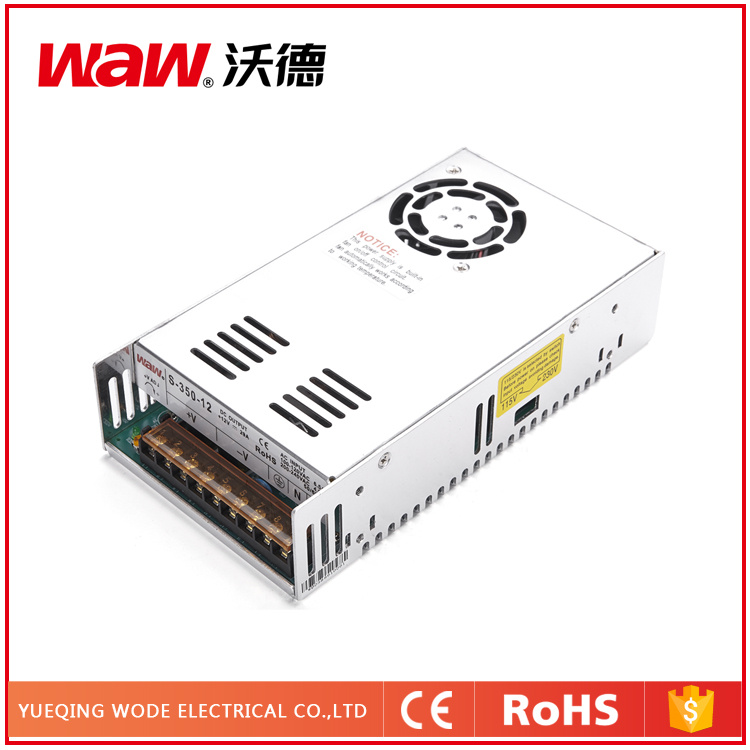

Hot sell S-350 SMPS 350w 12v 29a AD/DC LED driver

Product Description

Features

1.High Efficiency and good price

2.Built-in EMI filter

3.100% full load burn-in test

4.Low o

5.Protection:Over load/Over voltage/Short circuit

6.LIFETIME WARRANTY

Specifications

Model Specification	S-350-5	S-350-12	S-350-24	S-350-48
DC voltage	5V	12V	24V	48V
Rated output current	50A	29A	14.6A	7.3A
Output current range	0~50A	0~29A	0~14.6A	0~7.3A
DC power	250W	348W	350.4W	350.4W
Voltage adj.range	±10%	±10%	±10%	±10%
Voltage tolerance	±2%	±1%	±1%	±1%
Ripple and noise	150mVp-p	150mVp-p	150mVp-p	240mVp-p
Intet stability	±0.5%	±0.5%	±0.5%	±0.5%
Load stability	±0.1%	±0.5%	±0.5%	±0.5%
AC voltage range	90~132VAC/170~264VAC selected switch 47~63Hz 254~370VDC
Current	6.5A/115V 4A/230V
Efficiency	77%	81%	83%	85%
AC Inrush current	25A/115V 50A/230V
Leakage current	<3.5mA/240VAC
Overload	105%~150% Type:pulsing hiccup shutdown Resete:auto recovery
Over-voltage	115%~135%
Over-voltage	5.75-6.75V	13.8-16.2V	27.6-32.4V	55.2-64.81V
High temperature	ERH3 ≥ 55°C Fan on,≤ 45°C Fan off,≥ 70°C,Cut down output(5~15V)
Setup rise hold up time	200ms,100ms,20ms
Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES
Withstand voltage	Input and output interval,1.5KVAC,Input and enclosure,1.5KVAC,Output and enclosure,0.5KVAC
Isolation resistance	Input and output interval,Input and enclosure,Output and enclosure,500VAC/100M Ohms
Temperature coeffi cient	±0.03%/°C (0~50°C )
Working temperature and humidity	-10°C~+60°C,20~90%RH
Store temperature and humidity	-20°C~+85°C,10~95%RH
Overall dimension	21511350mm 17PCS/CARTON
Weight	0.94Kg

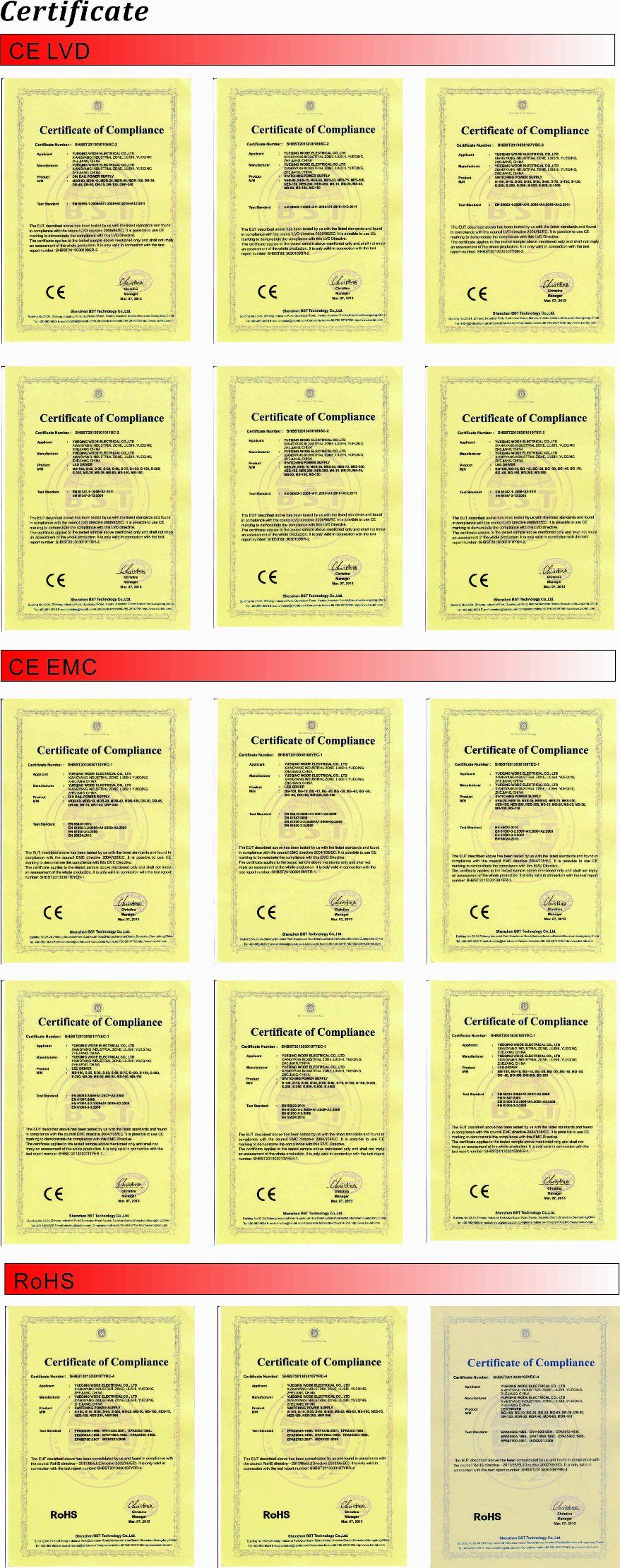

CE EMC Authenticate	EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008
CE EMC Authenticate	EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009
CE LVD Authenticate	EN61347-1:2008T A1:2001 EN61347-2-13:2006
CE LVD Authenticate	EN60950-1:2006+A11:2009+A1:2010+A12:2001
ROHS Authenticate	EPA3050B:1996 EN1122B:2001 EPA3052:1996 EPA3060A:1996
ROHS Authenticate	EPA7196A:1992 EPA3540C:1996 EPA8270D:2007 IEC62321:2008
