Jiangsu Jinsanli Power Equipment Industrial Co., Ltd. >> 35kv Composite Suspension Clamp Insulator

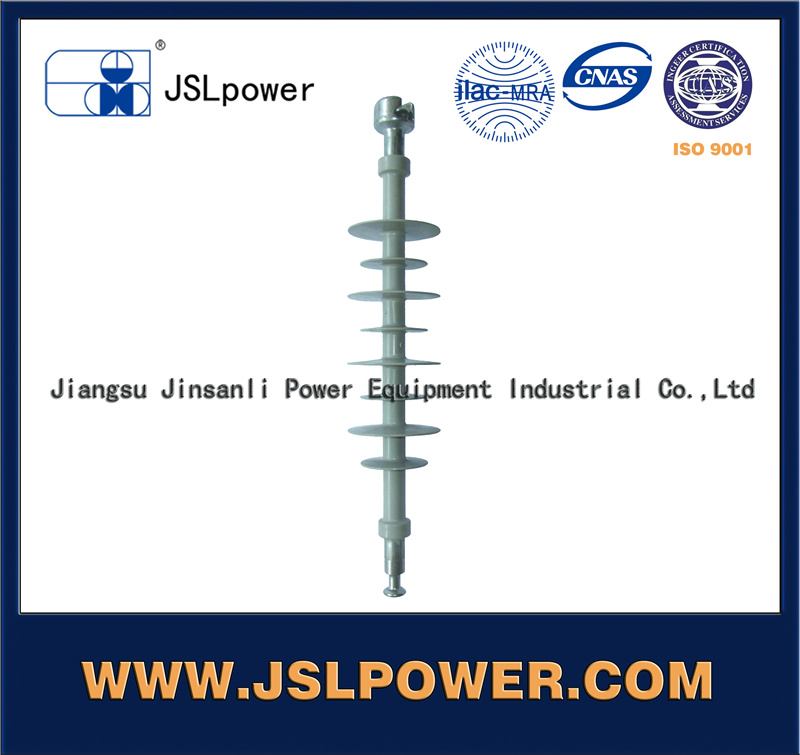

35kv Composite Suspension Clamp Insulator

35kv Composite Suspension Clamp Insulator
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1000/Piece
Pay Type: L/C,T/T
Prod Model: JXBW-35/70-670
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Attribute: Durable Quality
Application: High-temperature
Structure: Suspension Insulator
Material: HDPE(Modified Polyethylene)
Type: Suspension Clamp Insulator
Color: Light Grey
Brand: Jslpower

Product Description

Specification
35kV Composite Suspension Clamp Insulator
1) Innovation and change
2) Factory's diredt sale price
3) New material
4) Best serivce & quality

35kV Composite Suspension Clamp Insulator
About the HDPE suspension insulator

The Modified Polyethyene deadend suspension clamp insulator is a new type in the family of insulators, which is modified by a variety of polymer materials. It has a stable structure, good insulation, anti electric shock, stretching and mechanical properties. It's hard materials different from the silicone insulator.

Advantages of HDPE (Modified Plyethylene) suspension insulator

· Excellent mechanical properties after made 1000 hours weather aging test at an independent laboratory.
· Hard materials, easy to change the shade size, can increase the creepage distance.
· Installation personnel can directly on it, easy up and down on it.
· Light weight for easy handing, the weight just have 35% compared with cermic and glass insulators, comprehensive performance is better than silicone rubber insulators.
· Easy for transport, because the hard material resistance to squeeze.
· Easy for installation, it's can reduce manpower and material resources.
· Interchangeable with any other materials suspebsion insulators.
· Excellent for contaminated environments.
· recycling and reuse.


Main dimension and performance
35kV Composite Suspension Clamp Insulator
Catalog NumberJXBW-35/100-670
ClassPS100 S16 B16-410/1015
Rated Voltage(kV)35
Rated Mechanical Tension Load(kN)100
Unit Spacing(mm)H670±10
Min, Arcing Distance(mm)h508
Min, Nominal Creepage Distance(mm)1015
Dry Lighting Impulse with Voltage(kV)230

Wet Power-Freq. 1 min withstand Voltage(kV)

95


Welcome to visit our company

                                        Jiangsu Jinsanli Power Equipment Industrial Co., Ltd

Jiangsu Jinsanli Power Equipment Industrial Co., Ltd. is a scientific and technological enterprise of Jiangsu Province engaging in research, development, manufacture, processing and sale of electric power fitting, rubber calmp damping parts, hdpe insulator, hdpe cable spacer, porcelain insulator etc.Since its establishment, it has developed various rubber and plastic auxiliary products applicable to military, electrical engineering, smart power grids and hydraulic engineering fields. With excellent quality, products of the company are well received by various large and medium-sized enterprises. Technical personnel of the company has experience in taking refresher courses and learning manufacture and processing of rubber products in Japanese NOK company and has obtained technical grade certificates on rubber products manufacture and processing issued by Japan. The company mainly manufactures over 500KV super damping rubber spacer. Besides, through matching up with products of hardware fittings manufacturers of power industry, products of the company are widely applied to key electric power construction projects of China. Based on its existing production scale, the company expands rapidly through introducing lots of advanced equipment, which makes its production capacity can satisfy demand of various large-sized power enterprises on rubber dampers used for 500KV to 1000KV extra-high voltage transmission lines. With continuous improvement of technology, the company has manufactured insulator products used for 10KV to 220KV transmission lines and power transformation engineering and meeting ANSI standard by using advanced polymer(hdpe) technology. What's more, the company constantly improves product quality through technology innovation to standardize, refine, process and scientize the company, so that to further research, develop and manufacture more high-quality and rational-price products to meet demand of domestic and foreign enterprises.

We are manufacturer , welcome to visit, if you have any requriements for HDPE pin insulator design or size, please contact us,If you want to know about the other electrical insulators please Copy:   http://jslpower.en.made-in-china.com/   and come to visit our company website.
Jiangsu Jinsanli Power Equipment Industrial Co., Ltd., specialized in Insulators, our company located in Nanjing, Jiangsu province, welcome to contact us for details!

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price.
