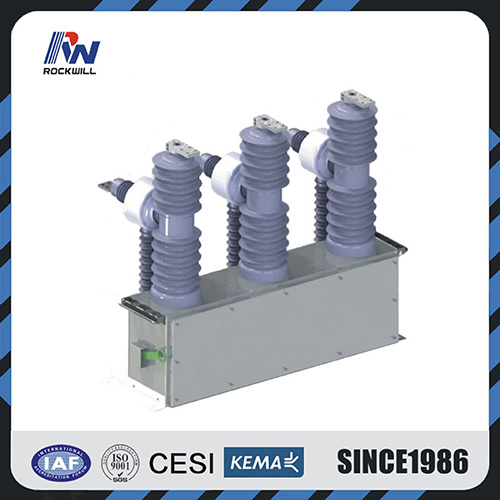

35kv Outdoor Capacitor Switch (RCS)
| Price: |
US $ 1/Box |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Box |
| Pay Type: |
L/C,T/T,D/P |
General
The Rockwill's new generation RCS-3N capacitor switch is a high efficient and economic type vacuum switch that provides an operational life of over 10000(3000 open/close) maintenance-free operations.
Using the RCS-3N will result in substantial savings from reduced maintenance and maximized bank uptime and will also improve power quality.
The RCS all comply with relevant stabdards.
Using condition
Ambient temperature:-40ºC~+85ºC, day temperature difference:25ºC;
Altitude:≤1000m area;
Wind speed no exceeds 35m/s;
No normally intensity vibration.
No intensity erosion gas, medium place (for example acid, alkali, smother eg.)
Pollution class: IV class
Charge temperature: -40ºC~+85ºC.
Main technical data of the RCS-3N | No. | item | unit | data |
| 1 | Rated voltage | kV | 12 | 15 | 27 | 38 |
| 2 | Rated current | A | 630 | 630 | 630 | 630 |
| 3 | Rated frequency | Hz | 50/60 |
| 4 | Power frequency 1min | Dry | kV | 42 | 60 | 79 | 85 |
| wet | 34 | 55 | 65 | 70 |
| 5 | Lightning impulse withstand voltage (peak value) alternate, opposite/fracture | kV | 75
(95*) | 110
(125*) | 125
(150*) | 170
(200*) |
| 6 | Symmetrical fault-making current | kA | 20*/16/12.5 |
| 7 | Fault making peak current | kA | 40*/32.5 |
| 8 | Short-time symmetrical withstand current | kA | 10/8 |
| 9 | Rated operating circulate | | O-3min-CO |
| 10 | Maximum single capacitor breaking | A | 630/800* |
| 11 | Maximum back to back capacitor bank breaking | A | 400/630* |
| 12 | Mechanism life | Times | 10000 |
| 13 | Electrical life under 200A working current | Times | 10000min |
| 14 | Secondary loop 1 min power frequency witstand voltage | kV | 3 |
Note:(*) is meant special for optional. When needed should discuss with our engineer.
ATTENTION:
1.The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
2.The delivery time: Usually it will take about 15-20 days.

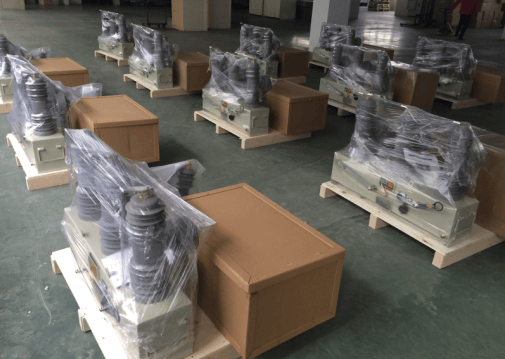

3.The standard of package: Usually use strong plywood case for protection.
4.The material of transformer: We have two types, one is with copper and another one is with aluminum. It depends on your requirement. In fact, those two have difference if normal work well. Only except the long life. Copper is better and also higher price.
5.The logo: If you have good quantity, it absolute no problem to do OEM.
6.Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation..
7.Warranty: in 12 month since BL date.
OUR SERVICE:
1.quick response in before sales period help you got order.
2.excellent service in production time let you know each step we made.
3.reliable quality solve you after sale headache.
4.long period quality warranty ensure you can buy without hesitate.
WHY CHOOSE ROCKWELL:
1. One-stop supplier globally.
2. More than 10 years professional experiences in electrical appliance industry.
3.We offer professional online technology support for perfecting your electrical solution free.
4. Experienced sales service and suggestion.
5. All the products with accessories under strict quality control and final inspection before shipping.
6. We can assure the powerful competitive price and reliable quality products.
7. Most competitive shipping rate from our own shipping forwarder.
8. Warranty assurance: 12 month
9. Whatever big or small order, we can provide you one-to-one service.
CONTACT US:
Contact person: Mr. Chen Chengming
Tel:86-577-27869969
Mobile:86-18668777248
Your Best Choice for Electrical Appliances Industry!!!
Please leave an inquiry to know more details about Price , Packing ,Shipping and Discount.
| Prod Model: |
RCS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Vacuum |
| Installation: |
Fixed |
| Poles Number: |
3 |
| Certification: |
ISO9001-2000 |
| Structure: |
Conventional Circuit Breaker |
| Type: |
Capswitch |
Wenzhou Rockwell Transformer Co., Ltd. is a high-tech enterprise invested by Rockwill Transmission and distribution Group Co., Ltd. Our company is specialized in developing, manufacturing and marketing Single phase & three phase automatic step voltage regulator, Auto-transformers, power transformers, preventive auto transformer, CT and PT combinated Metering unit, and compact transformer and pad moubted substations.
Our company enjoys a worldwide reputation for our superior quality and service. In addition to the domestic market, our products are exported to America, Australia, Central Europe, Eastern Europe, Southeast Asia, the Middle East, Africa and other regions and countries.
Besides a great variety of products, we also provide you with professional technical solutions and services. If you have any problem, please feel free to contact us and our technicians will find a complete solution for you.
We always embrace the idea of developing together with customers and always try our best to provide users with safer, easier, greener and more energy-saving high and medium voltage electric equipment and components.
Note:
Rockwell's sister company Rockwill is offering manufacturing for MV and LV switchgears, ring main units, vacuum(gas) circuit breakers, reclosers, load break switches and Low voltage metering unit, Current transformer, Voltage transformer.
