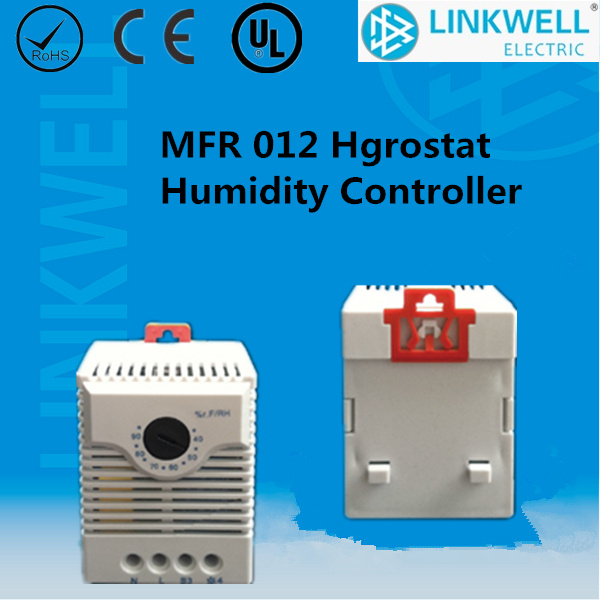

35mm DIN Rail Mount Selectable Load Adjustale Humidity MFR 012 Hygrostat
| Switching error | 4%RH( ±3%tolerance) |
| Relative humidity range | 35%-95% |
| Allow wind speed | 15m/sec |
| Contact type | Changeover contact |
| Contact resistance | <10m ohm |
| Service life | >50,000 cycles |
| Mix.Switching capacky | 20V AC/DC 100mA |
| Max.Switching capacky | 25 VAC, 5 A |
| Connection | 3-pole terminal for 2.5mm2 ,clamping torque
0.5Nm max:rigid wire 2.5mm2, stranded wire( with wire end ferrule) 1.5mm2 |
| Installation | 35mm DIN Installation guide |
| Casing | UL94 V-0 Plastic, light gray |
| Dimensions | 67*50*38mm |
| Weight | about 60g |
| Fitting position | variable |
| Operating/Storage temperture | 0~+60ºC/-20~+80ºC |
| Protection type | IP20 |
FAQ
Q1: Where is the location for Linkwell Electric?
A1: We own factory and sales centre in Shanghai, China.
Welcome to drop in us.
Q2: Could we ask for samples and catalogs?
A2: Yes, Our E-catalogs may be downloaded from www.linkwell.org
And we provide samples to be shown in the market end and tested in the lab.
Q3: Could we make our own brand?
A3: Yes, we are flexible in OEM, distributor, wholesaler and agent service.
Q4: Could we make tailored products?
A4: Yes, we are capable of manufacturing goods of different size, voltage, color
and specified designs?
Q5: How could we deliver goods?
A5: The delivery way ranges from by air, by express, by sea.
Q6: Which currency and term for our deal?
A6: We may accept RMB, USD, EURO, POUND etc.
Ex-factory, FOB, CIF are available.
Q7: How long is the production time?
A7: Usually it takes about 2-3 weeks upon receipt of order advance payment.
Q8: How could we become Linkwell agent?
A8: It would be necessary to test the end marketability of our products
and continue efforts in building a larger turnover to justify the agency arrangement.
Q9: Is there any pre-after sale service?
A9: Yes, we support our partner by pre-after sale service.
Any case would be report to our head office for prompt solutions.
Q10.:Are our business& money safe with Linkwell Electric?
A10: Yes, your business is safe and your money is safe. If you check China company blacklist, you will see that it is not contain our name as we never crook our customer before.
Hope we can be your trustworthy partner in China and leading the market always.
How to contact us?
Send your inquiry details in the below for free samples, click" SEND" now!
We are mainly dealing with low voltage electrical products for switchgear board and automation industry, such as panel filter and fan, panel heater, thermostat and hygrostat for panel, flexible busbar, terminal block, DIN rail, wiring duct, etc. We are aiming to provide one- stop-solution for panel builder.
Now we are mainly exporting to European countries and Middle East Area, our products now are being well sold to more than 60countries all over the world and we enjoy very good reputation in the market for the sake of our good quality and competitive prices, kind and prompt services to clients.
LINKWELL ELECTRIC policy is to offer a full support to Clients:
- pre-after sales assistance
- customized products
- fast delivery
- monitoring of customers' satisfaction
Rather than a supplier, LINKWELL ELECTRIC aims to be a Client's industrial PARTNER!
Our company always pays special attention to protecting the benefits of clients' so that both the clients and our company are able to gain the maximum benefits from the relations between us.
We warmly look forward to establishing, reinforcing and expanding long term fruitful relationship with the reliable clients all over the world.
Let's get busy and pull together to create a better future!
