Prod Model: |
Auto Switch TA-MW50 |
Power Frequency: |
50/60Hz |
Time Delay: |
8sec to 12min |
Transmission Power: |
<10MW |
Detection Angle: |
360 Degree |
Power Consumption: |
Approx. 0.9W |
Type: |
Microwave Sensor Switch |
Standard: |
Standard |
Application: |
Corridor |
Principle: |
Microwave |
Product Description

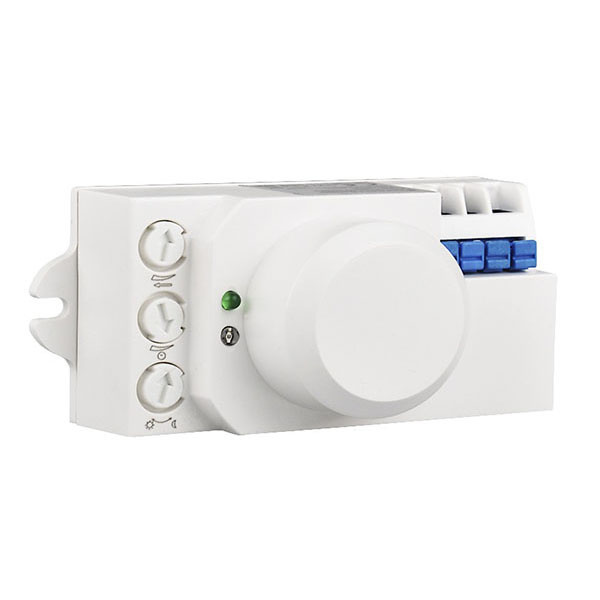

360 Degree Auto Switch Microwave Detector TA-MW50 for LED LightsSpecification:The microwave sensors is according to the microwave doppler effect , it can be widely used in as automatic control switch, the security system, and Automatic video control system of ATM, as well as other automatic induction control area.
The Detection way has the below advantages compared with other as follows:
1. Non-contact Detection,
2. Suitable for bad environment, immune to temperature, humidity, noise, air, dust, Light,
3. RF interference ability,
4. Transmission power only 0.2 mW, It will not harm the human Body.
Simple installation+ easy wiring. We use appropriative micro processing integrator, not Only for high sensitivity and wide range of detection, and on very reliable work, error rate is Extremely low, It can stable working on the temperature range: - 15 ~ + 70 Celsius degrees.
Can identify day and night: It can work in the daytime and at night when it is adjusted on the "sun" position (max). It can work in the ambient light less than 3LUX when it is adjusted on the "moon" position (min). As for the adjustment pattern, please refer to the testing pattern.
SENS adjustable: It can be adjusted according to using location; low sensitivity with 2m for detection distance; High sensitivity with 16m, it fits for large room.
Time-Delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the basic of the first time-delay rest
Time-Delay is adjustable. It can be set according to the consumer's desire. The minimum time is 10sec±3sec. The maximum is 12min±1min.
Technical Data:
Item No. | Auto Switch TA-MW50 |
Input voltage | 220V-240V/AC, 110-130V/AC |
Rated loading (refer to 220-240V/AC) | 1200W(Resistive) 300W(Inductive) |
Stand-by dim setting | Time 1min-60min, 24h Brightness 0-50% |
Power Frequency | 50/60Hz |
HF system | 5.8GHz CW radar, ISM band |
Time delay | 8sec to 12min |
Transmission power | <10mW |
Detection angle | 360° |
Power consumption | Approx. 0.9W |
Detect distance (radii.) | 2-10m |
Light control | 2-2000lux |
Adjustment type | Knob |
IP Rating | IP20 |
